BlueStorm Installation Guide, Connect Tech Inc.
Revision 0.08
21

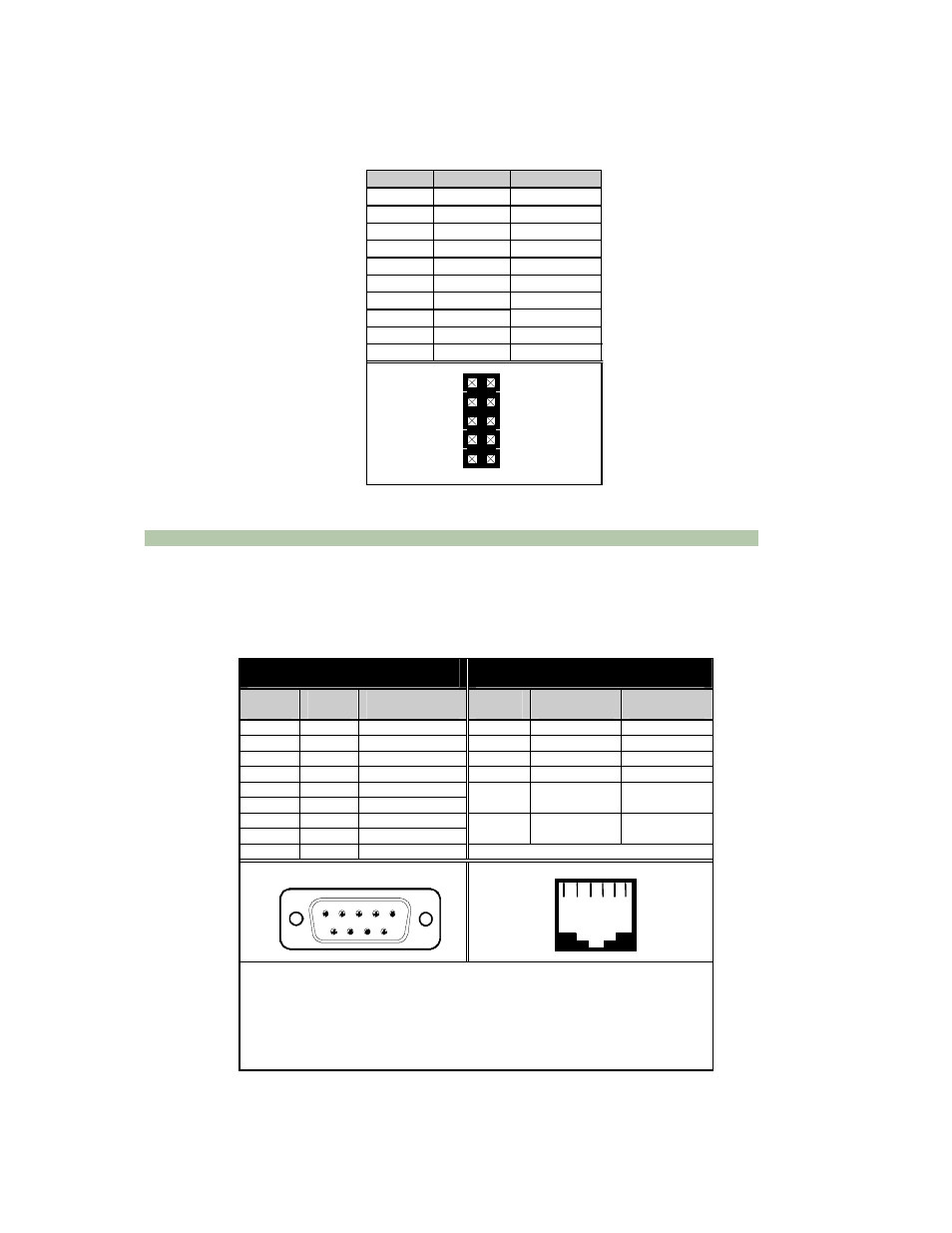

Table 8: RJ-11 Pinouts for BlueStorm/SP RJ-11 (ports 7 and 8 only)
Pin No.
RS-232
Direction
1
DCD
input
2
DSR
input
3
RxD
input
4
RTS
output
5
TxD
output
6
CTS
input
7
DTR
output
8
RI
input
9
SG
signal gnd.
10
N/C
no connect
4
6
8
10
9
7
5
3
2
1
P7/P8
Please note that ports 7 and 8 are not accessible through the factory installed bracket.
Table 9: Pinouts and Control Signals for RJ-11 Connectors (BlueStorm/SP RJ-11 only)
Ports 7 and 8 when a DB-9 cable
(part number CAG104K) is attached
Ports 1 through 6, which are accessible
through the factory installed bracket
DB-9
Pin No.
RS-232
Signal
Direction
RJ-11
Pin No.
RS-232
Signal
Direction
1
DCD
input
1
RTS
output
2
RxD
input
2
RxD
input
3
TxD
output
3
TxD
output
4
DTR
output
4
DSR
input
5
SG
signal ground
6
DSR
input
5
SG
Signal/power
ground
7
RTS
output
8
CTS
input
6
+12 VDC**
or +5 VDC**
output
9
RI
input
** J1 selects +5 VDC, J2 selects +12 VDC
Part #: CAG104K
Technical Tip:
Please ensure that you terminate the CTS signal if your application does
not use them. The common way to do this is to connect CTS to RTS.
Failure to do so may result in loss of a performance on your
BlueStorm/SP RJ-11 adapter.
Male DB-9 Connector
1
5
6
9
1
6
RJ-11 Connector
