Location of Contri

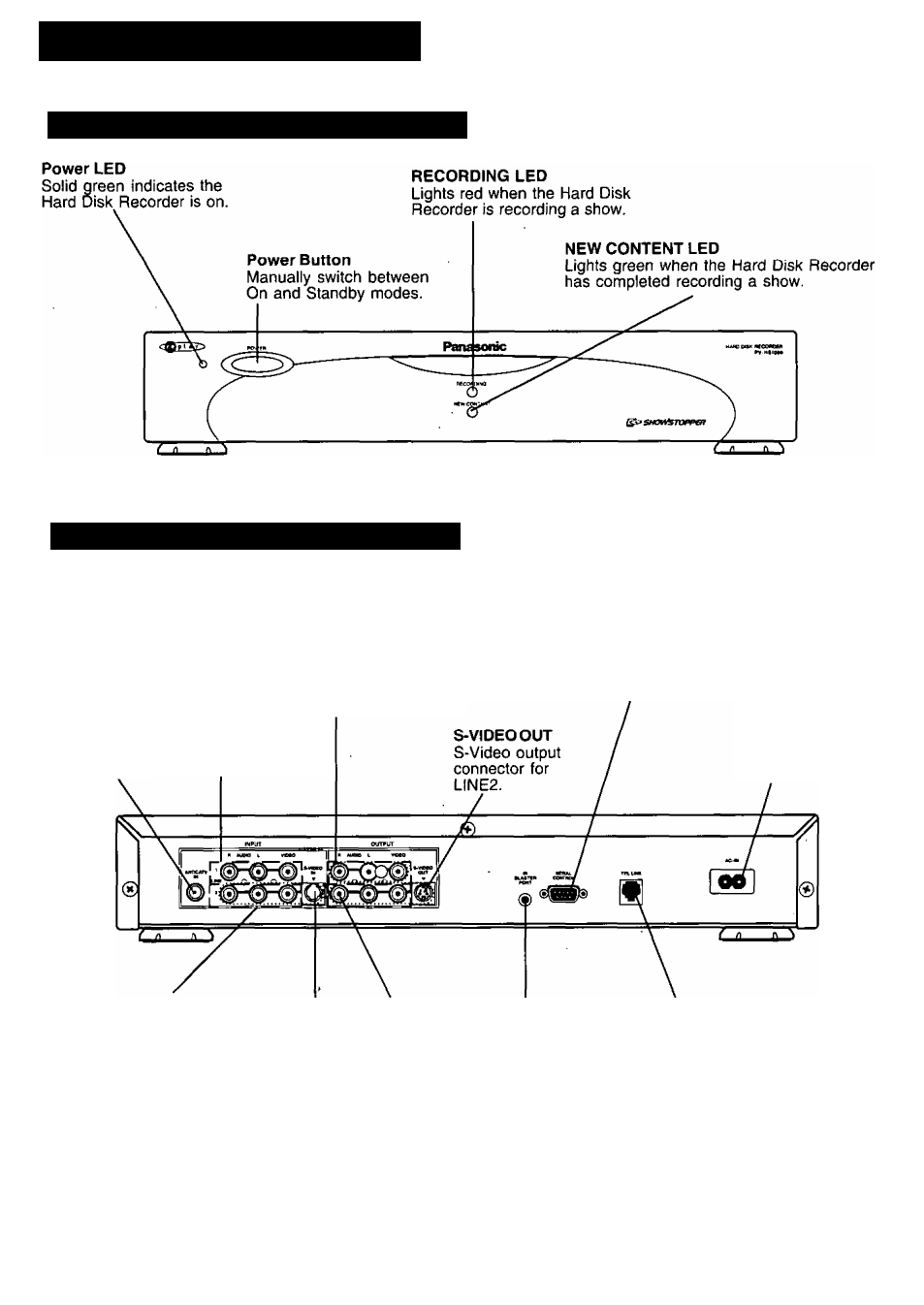

Front View of the Hard Disk Recorder

Rear View of the Hard Disk Recorder

INPUT LINE 1
Audio{L/R)/video input connector
with conventional (composite) video.

ANT/CATV IN
Antenna/Cable

input terminal.

OUTPUT LINE 1
Audio(L/R)/video output
connector with conventional
(composite) video.

SERIAL CONTROL*
Serial port for linking a Satellite
Receiver with a serial port.

AC IN
AC Power plug

connector.

INPUT LINE 2
Audio(L7R)/video
input connector with
(composite) video.

OUTPUT LINE 2
Audio(L/R)/video
output connector with
(composite) video.

TEL LINE
Telephone jack
(required) for connecting
to the ReplayTV Service.

S-VIDEO IN
S-Video input

connector for

LINE2.

IR BLASTER PORT*
Infrared (IR) jack for

controlling a DBS or
cable box with IR control.

Serial and IR controls are used only with Satellite receiver equipment and cable boxes.
Serial control can be used only with a Satellite receiver that has a serial port.
