Advanced Connections
(continued)
Connecting a Cable Box and
an
M \/
Receiver to the Hard
Disk Recorder

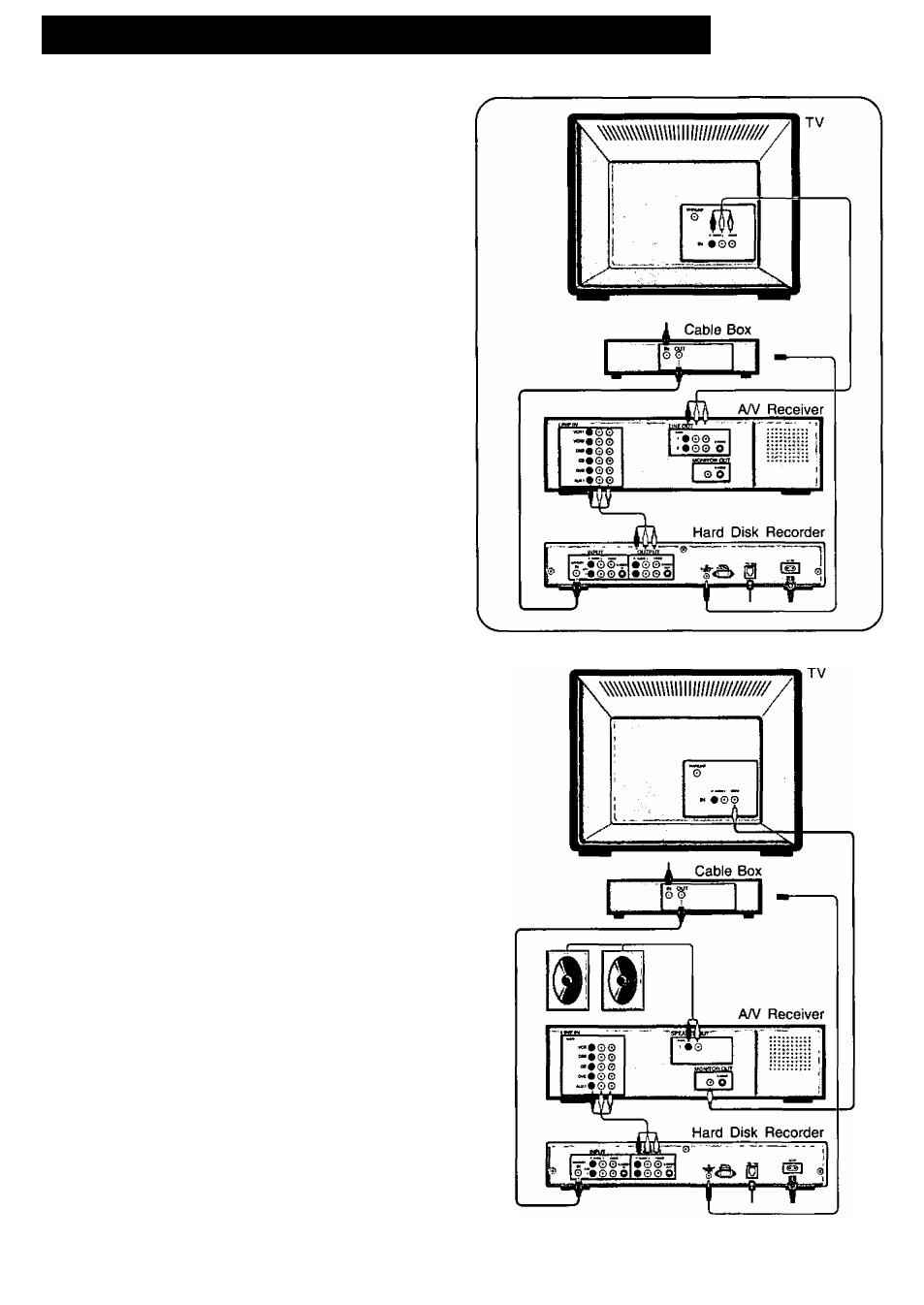

1. Connect the incoming television signal to the IN jack on
your cable box.
2. Connect the RF cable from the OUT jack on your cable
box to the ANT/CATV IN jack on the Hard Disk
Recorder.
3. Connect an AA/ cable from the OUTPUT jacks on the
Hard Disk Recorder to the IN jacks on your AA/
receiver, matching like colors.
4. Connect an A/V cable from the OUTPUT jacks on your
A/V receiver to the AUDIO/VIDEO IN jacks on your TV,
matching like colors.
5. Attach the cable box controller. See “Satellite Receiver
and Cable Box Controllers” on page 10.
6. Follow the C -- E instructions on page 9 for telephone
connection, AC power connection, and setup.
If your cable box has A/V OUT jacks, connect an A/V cable
from these jacks to the INPUT jacks on the Hard Disk
Recorder instead of using the RF cable.
Refer to your TV, cable box or /W receiver owner's manual for
more information on connecting to these components.
If you have separate speakers, do the
following steps instead of step 4 above.
a. Connect the Audio cable from the AUDIO OUT jacks
on your A/V receiver to the speakers.
b. Connect the Video cable from MONITOR OUT jack on
your A/V receiver to the VIDEO IN jack on your
television.
