Cleaning the Unit

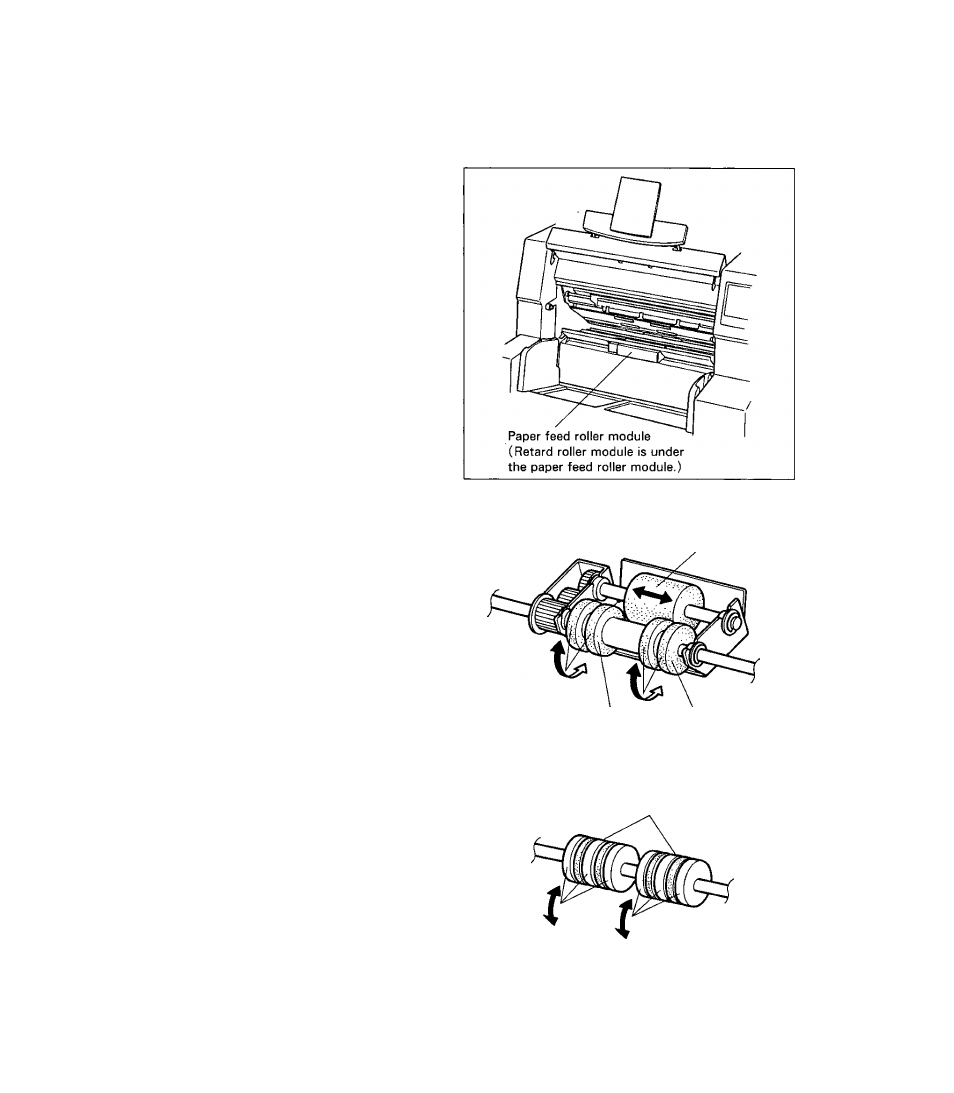

3 Remove the paper feed roller mod­
ule and retard roller module. (See
section "Replacing the Roller Mod­
ules" on page 37.)
4 Use the accessory roller cleaning
paper to wipe off the dirt on the
surfaces of the paper feed roller
and separator roller.
• When wiping off the dirt on the roller
surfaces, hold the rollers to prevent
them from rotating, and wipe the roll­
ers all the way around them proceed­
ing from one end to the other in the
directions of the arrows shown in the
diagram to the right.
Paper feed roller
Separator roller Separator roller
Wipe off in the arrow direction.
5 Following the same procedure as
in step 4, use the accessory roller
cleaning paper to wipe the sur­
faces of the retard rollers all the
way around them proceeding from
one end to the other in the direc­
tions of the arrows shown in the
diagram to the right.
Retard roller
Wipe off in the arrow direction.
33
