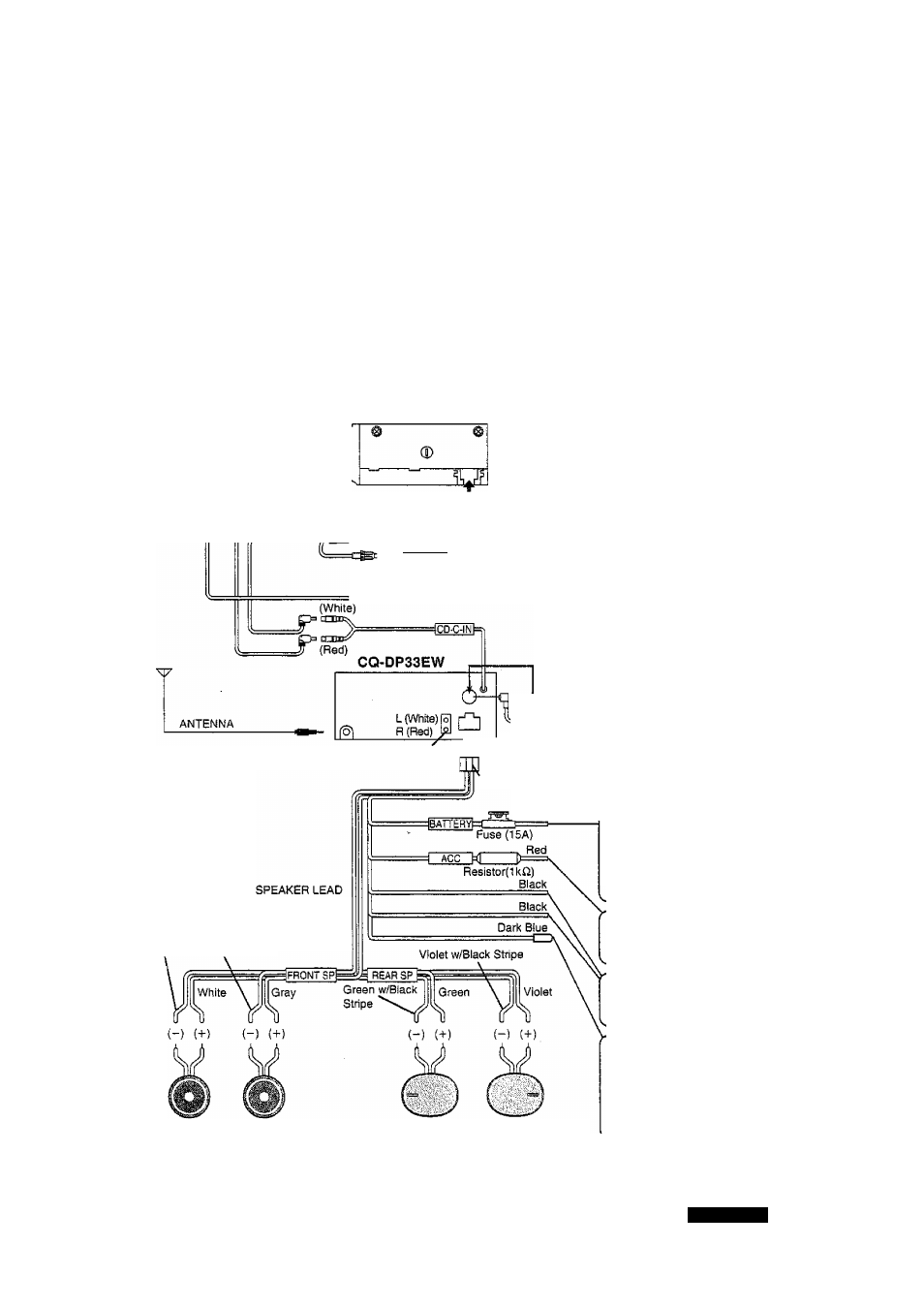

Electrical Connection
Caution:.' .
♦To prevent damage to the unit, be sure to follow the connection diagrann below.
• Remove the covering of the leads about 5 mm long from their end before connecting.
• Do not insert the power connector into the Unit until the wiring is connpleted.
♦Be sure to insulate any exposed wires from a possible short-circuit from tiie car chassis.
Bundle all cables and keep cable terminals free from touching any metal parts.
• This unit can be connected to an optional CD changer (CX-DP801EN). For details consult your
nearest Panasonic dealers.
• For connection to a CD changer, refer to the operating instructions of the CD Changer
(CX-DP801EN).
CX-DP801EN
^Ground lead
(To a clean, bare metallic
part of your vehicle)
Extension Cord
(DIN/BATT/RCA/GND)
I
Black
(Yellow)
Fuse(3.15A)
^
Battery Lead
VL
Be sure to connect to a well grounded
metallic part of your car because
noises or troubles may occur.
CD changer
Control Connector
DIN Extension Cord
PREAMP OUT
CONNECTOR
©Power Connector
Yellow
BATTERY LEAD (To Battery of Car)
Connect to the "BAT terminal on the fuse
block of the car.
The power shoule be supplied continueously
to the yellow leads regardless of the on/oft po
sition of the ignition key.
White w/Biack
Stripe
Gray w/Biack Stripe
POWER LEAD
Connect to the ‘radio” power line of the car or
to the "IGN" or “ACC” terminal of the fuss block.
GROUND LEAD
Connect to a welt grounded metallic part of
LEFT SPEAKER RIGHT SPEAKER
(FRONT)
(FRONT)
LEFT SPEAKER RIGHT SPEAKER
(REAR)
(REAR)
MOTOR ANTENNA RELAY CONTROL LEAD
(To Motor Antenna)(Max. 100mA) This lead is
not intended for use with switch actuated
power antenna.
AMP.RELAY CONTROL POWER LEAD
This lead is for connection to Panasonic power
amplifier.
CQ-DP33EW
