Installation Guide
(continued)
□ Installation Procedures
1. Secure the Mounting Collar
0
.

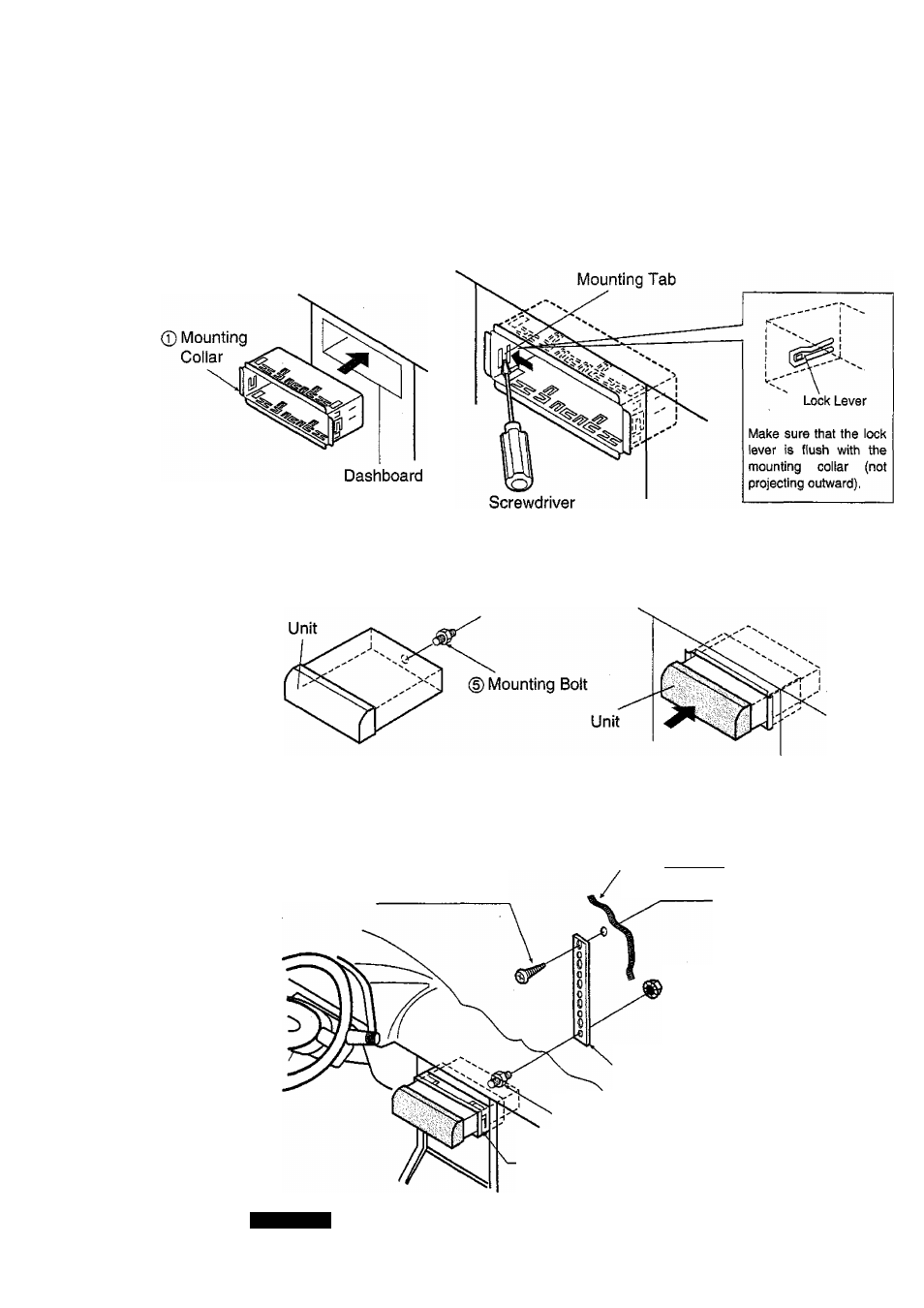

Insert Mounting Collar 0 into the car’s dashboard, and bend mounting tabs out with a screwdriver.
2. Secure the rear of the unit.
a) Check the electrical connection by referring to this operating instructions.
b) Connect the Mounting Bolt (5), using a suitable wrench.
c) insert the unit into Mounting Collar 0 and push it in until “click” is heard.
d) Secure the rear of the unit to the car by either of the two recommended methods.
■ Using the Rear Support Strap ®
Affix one end of the Rear Support Strap (3) to the rear of the unit, and the other end to the Fire Wail of
Car, or some other metallic area.
0 Tapping Screw
Fire Wail of Car
3 mm0
0) Hex. Nut
0 Rear Support Strap
(D Mounting Bolt
0 Mounting Collar
