Precautions (ISO connector)______________
• Wiring for the power connector conforms to the arrangement of standard iSO connectors.
• In case of some car types, the arrangement of connector may differ from the standard ISO as
shown in Table 1, even though ISO connectors are adopted.
Table 1
A4 A7
Car for standard ISO
Battery
(permanent 12 V supply)
“IGN” or “ACC”
(switched 12 V supply)
In case of Car type A
“IGN”or“ACC”
(switched 12 V supply)
Battery
(permanent 12 V supply)
In case of Car type B No Connection
Battery
(permanent 12 V supply)
• Make sure the ISO connector arrangement in your car side is as same as the standard ISO.
(Table 1, Fig. 1)
• In case of arrangement for Car type A or B, change connections of the red/yeilow leads at the
re-connectable joint {iiC*) as shown In Fig.1.

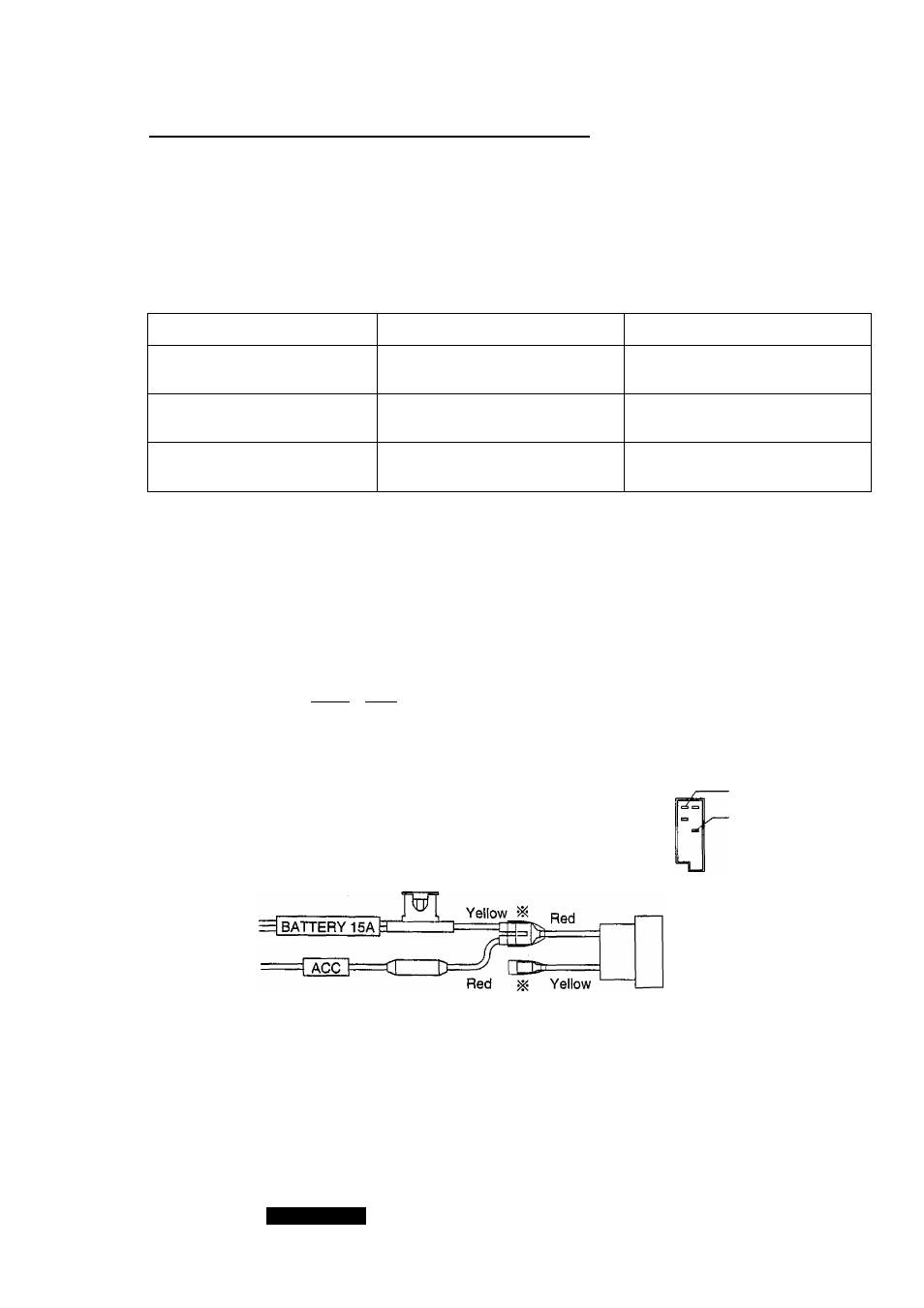

Fig.l
standard ISO
ACC i^=CI IT:
Red /
A7
Car A
Car B
BATTERY 15A 3
Yellow Yellow
A4
BATTERY 15A 3
Yellow
Red
ACC
Red ^ Yellow
ipr
A7 : ACC/IGN Switch
° +12V
A4 : +12V Battery
A7 : +12V Battery
A4 : ACC/IGN Switch
+12V
A7 : +12V Battery
A4 ; NC
• After fix the connections, the part {^) should be insulated with electrical tape to keep away
from unit damage.
