Focus or flange-back adjustment – Panasonic WV-BP100 User Manual
Page 17
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
DC :
The mounted lens is one of the lenses listed on
pages 9,10 and 11 or one that requires the DC
control signal for auto iris control.
VIDEO :
The mounted lens requires video signal for auto
iris control.
Note ;
Refer to item (5) on page 5 for the lens selection
switch.
Screw

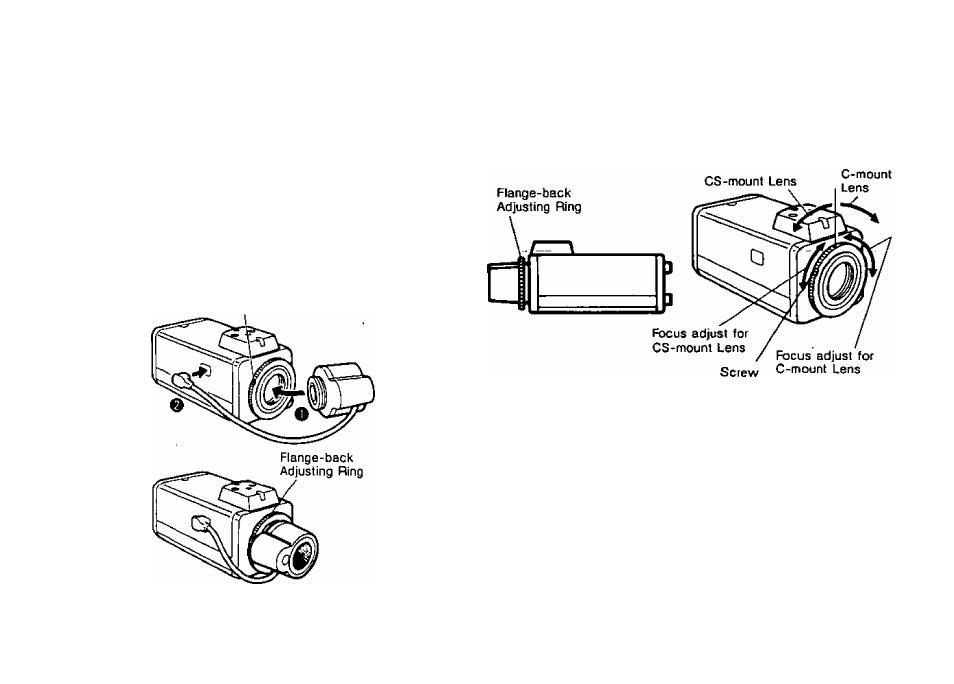

FOCUS OR FLANGE-BACK ADJUSTMENT
The
following
adjustment
should
be
made
by
qualified service personnel or system installers.
1. Loosen screws on the flange-back adjusting ring.
2. Turn the flange-back adjusting ring to the desired
position.
Caution :
Do
not
turn
this
ring
too
much
to
counterclockwise
as
this
could
damage
the
inner glass and CCD image sensor.
3. Tighten the screws on the flange-back adjusting
ring.
- 15 -
