Connection

V ___:_____________________________________ ^______ -------------/

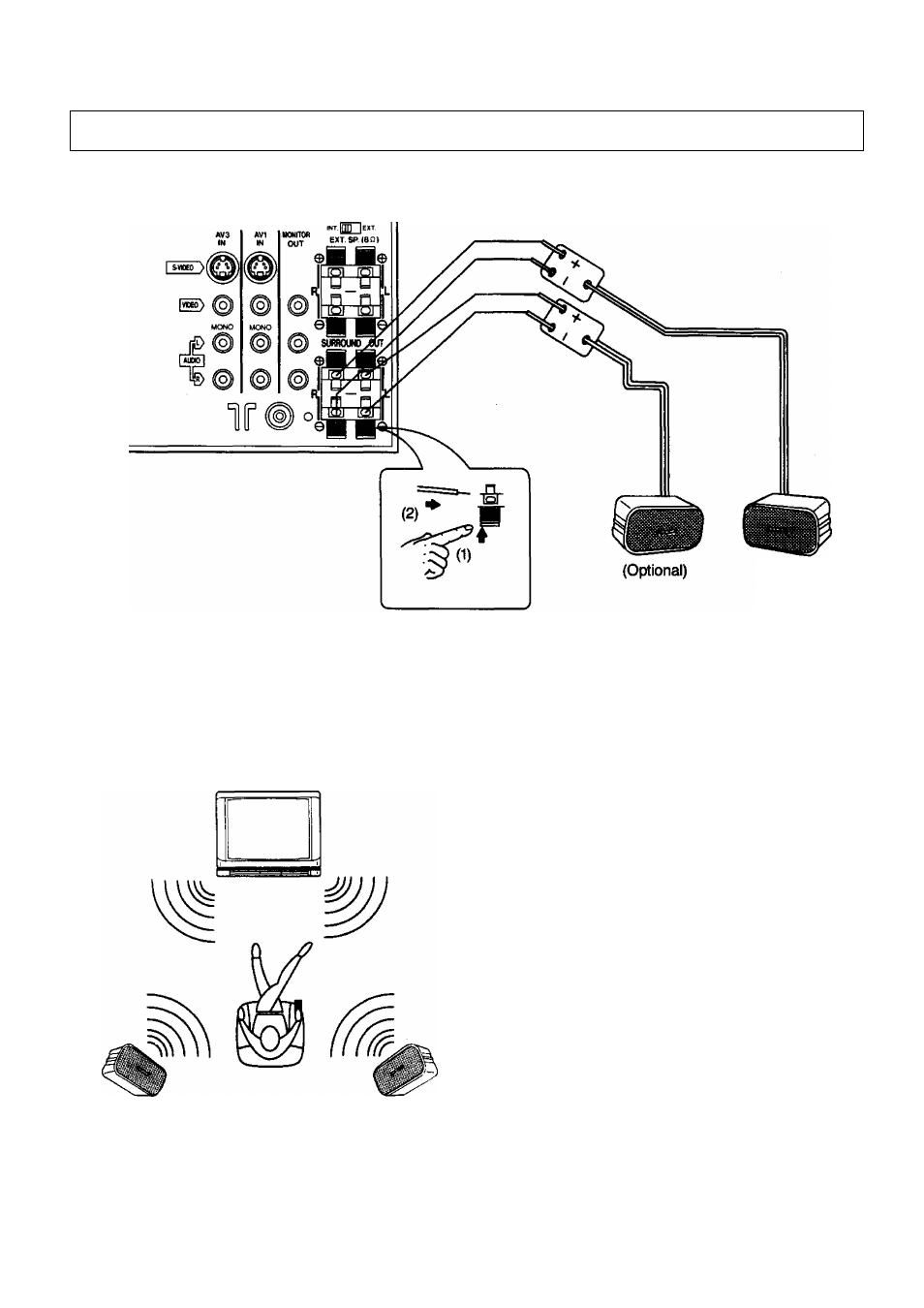

Connecting the Surround Speakers

■ Connecting the surround speakers as follows.

(Optional)

AV surround effect is further enhanced upon connecting surround type speakers

Although it is possible to enjoy the “AV Surround Effect“ with this unit alone, upon connecting separate

“Surround Speakers“ the presence of the enveloping sound becomes more vivid.

Place the surround speakers as shown left.

Note:

For Surround Operation details, refer to page 62 to 65.

Speaker
Position

Speaker

Position
