Connection

J

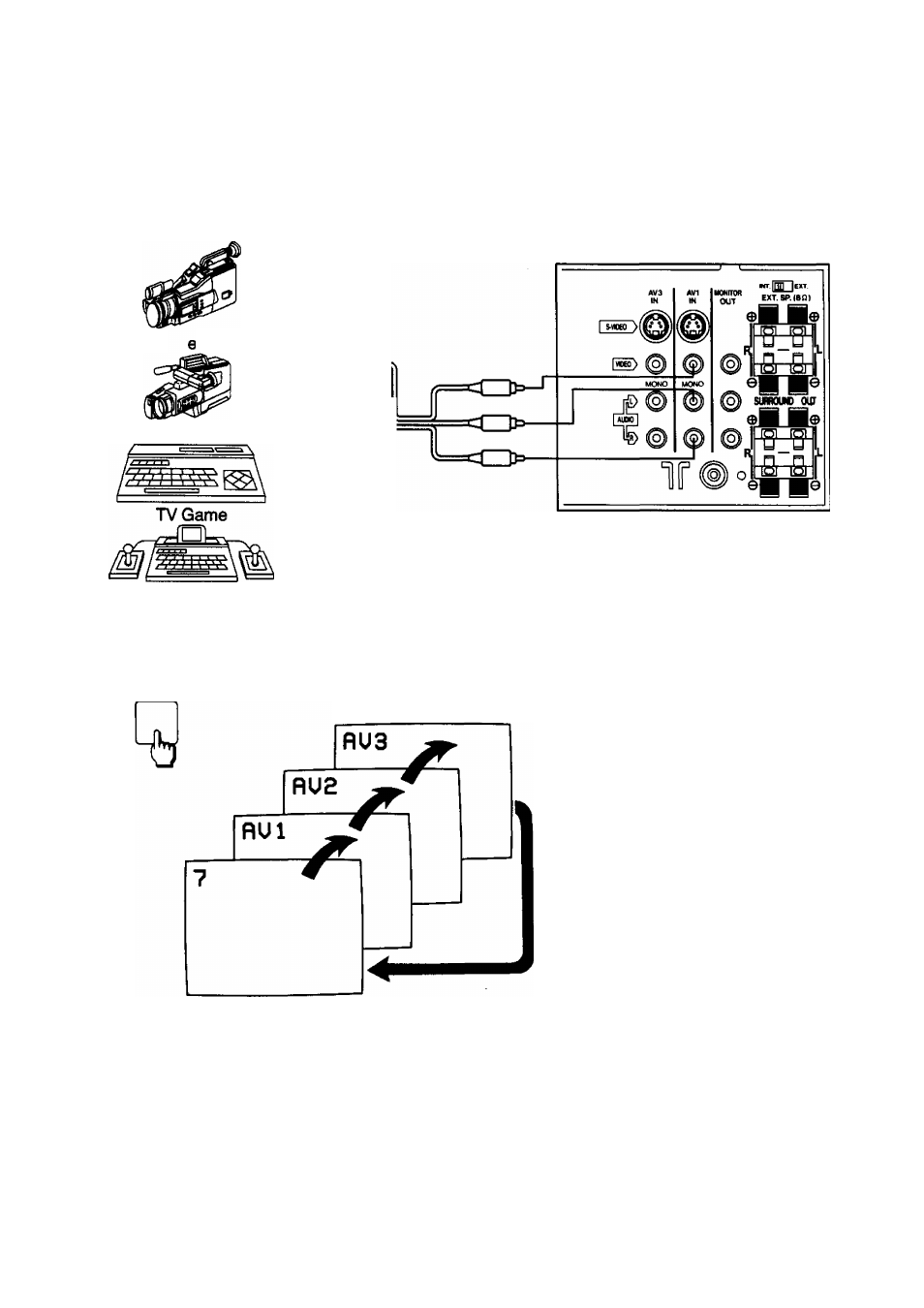

Pattern 4: Via the “AVI” Video and Audio Terminals

Connect the “AVI” (Video and Audio) Terminals and Other Equipments as follows.

Equipments

VHS Compact Movie Camera

VHS Movie Camera

Home Computer

AVI Select Operation on the TV set

1

.

TV/AV

Select the “AV1” mode by pushing this button, you can sequentially

select TV and three AV modes (AVI, AV2 and AV3), as shown below.

Selecting mode will appear on the top left
of the screen.

2.

PLAY

Push the “PLAY” Button on the Connected Equipment.

26
