Connection

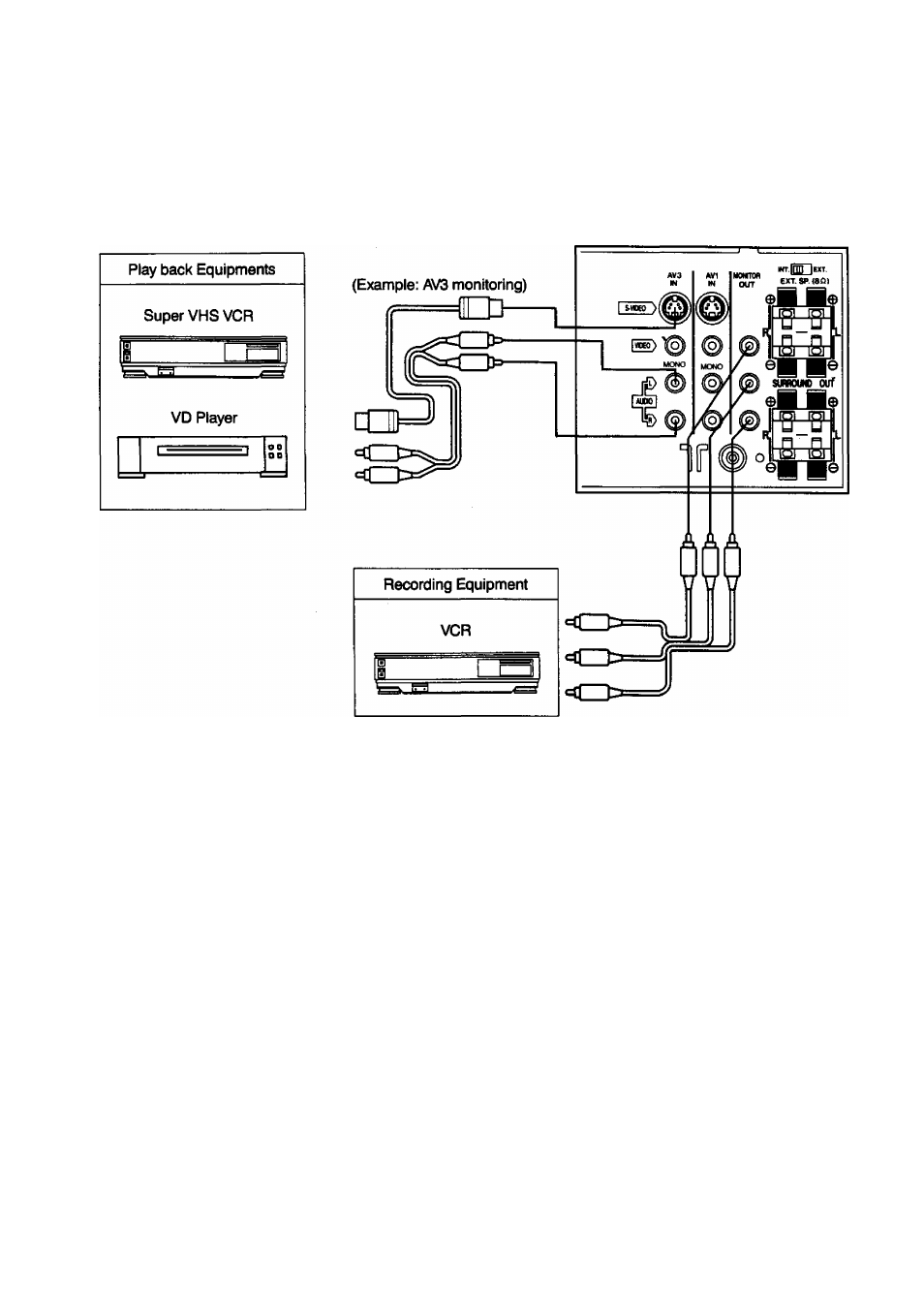

Pattern 7: Via the “Monitor Out” Terminals

Connect the '‘Playback” Equipment and “Recording” Equipment via the TV set as follows.

“Monitor Out” Terminals contain signals which are on the TV screen at that time, e.g. TV
programmes or signais from AVI, AV2 or AV3 input.

Operation

1

.

2

.

Select the desired AV mode,

in this case, select the AV3 mode.

For Operation details refer to page 52 or 66.

Push the “PLAY” Button on the Connected Equipment.

32
