Panasonic RS-TR252 - Manual (Page 4)

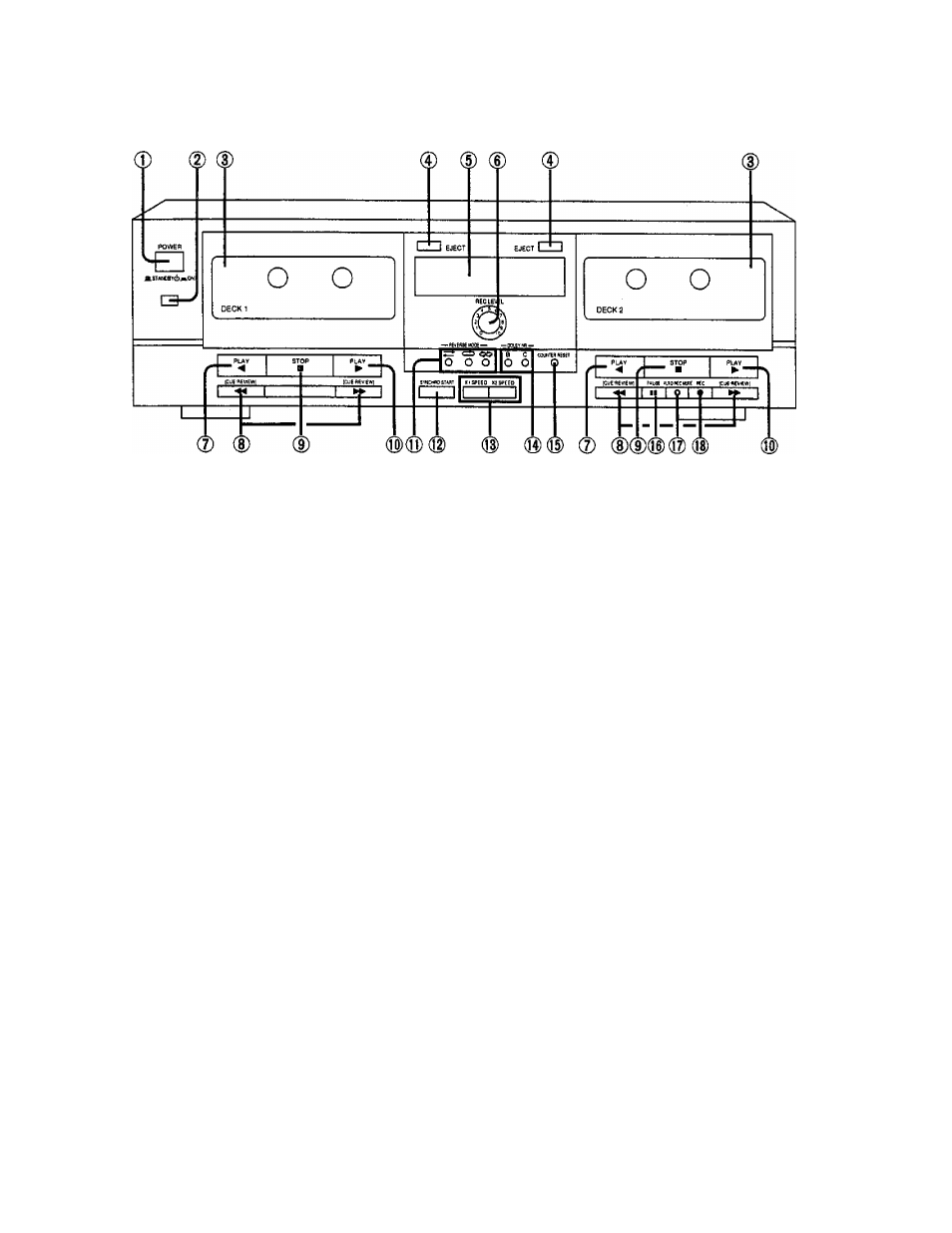

No. Name Rei. page
(D Power “m STANDBY 6 ^ ON” switch
(POWER, M STANDBY 6 ^ ON)
6
Press to switch the unit from on to standby mode or vice ver­
sa. In standby mode, the unit is still consuming a smail
amount of power.
Remote control signal receptor -
(Refer to "About the remote control function" on page 7.)
^ Cassette holder -
0 Eject button (EJECT)
Display
(|) Recording-level control (RCC LEVEL)
10
(2) Reverse-side playback button PLAY)
6
(g) Fast-forward/cue, rewlnd/review buttons
[CUE/REVIEW])
9
Stop button (■ STOP)
® Forward-side playback button O PLAY)
6
No. Name Ref. page
(Q) Reverse-mode select buttons
(REVERSE MODE) 6 > T
® Synchro-start button (SYNCHRO START)
12
® Tape-to-tape recording-speed buttons
(x1 SPEED, X2 SPEED)
12
® Dolby noise-reduction buttons
(DOLBY NR) 6,10
Counter reset button (COUNTER RESET)
8
Pause button (II PAUSE)
@
Automatic-record-muting button
(O AUTO REC MUTE)
(]|i Record button (• REC)
6
11
10
