Optional Equipment Connection and Operation

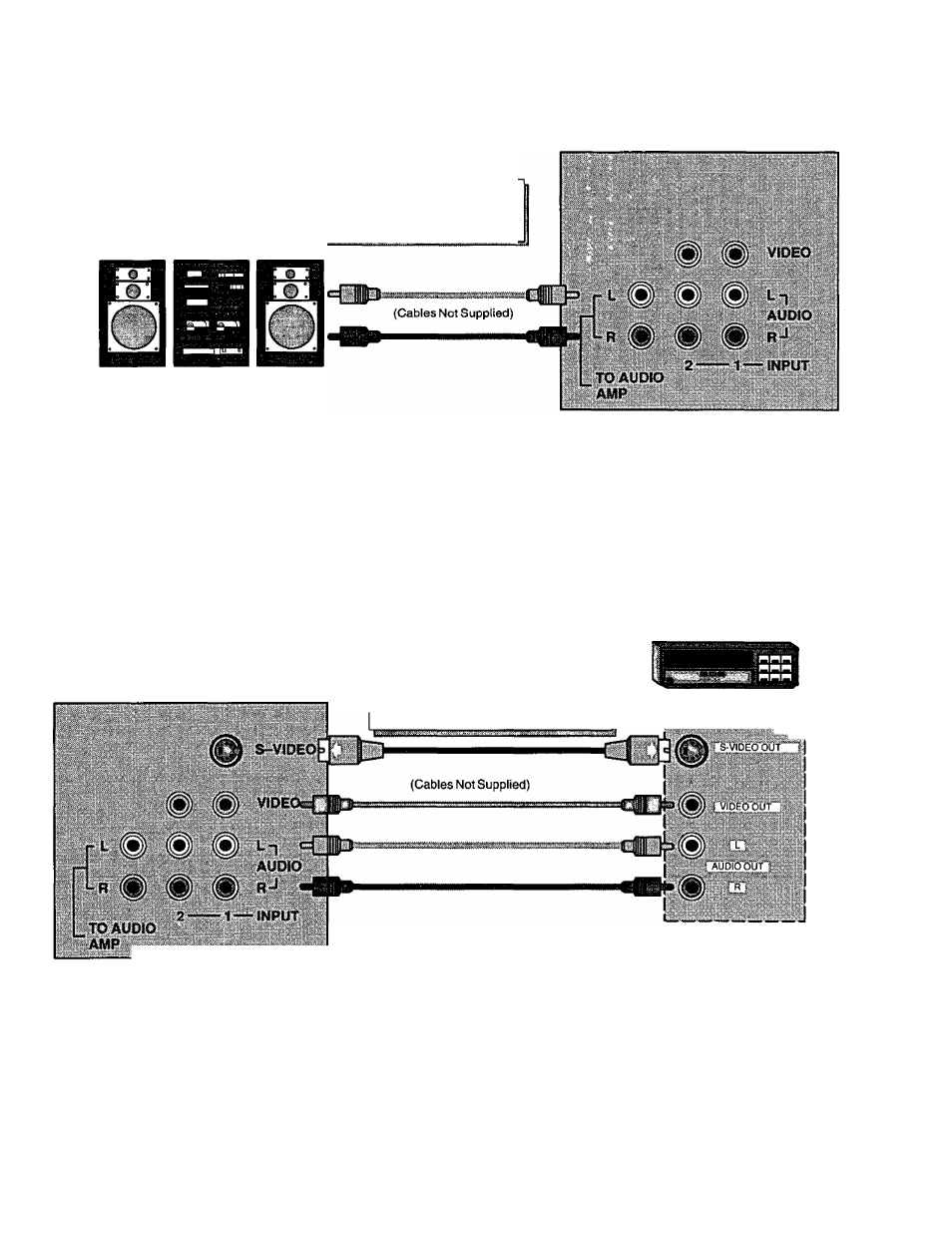

To Audio AMP Connection (Stereo)
Connect to an externa! audio amp auxiliary input for monitoring sound through a stereo system.
TERMINALS ON BACK OF TV
‘TO
AUDIO
AMP”
terminals
cannot be used directly with
external speakers.
Adjustment
- When an audio amp is connected to ‘TO AUDIO AMP” terminals;
1. Select TV SPEAKERS “ON ” Mode. {Refer to the Audio Menu TV Speakers section.)
Set volume of audio amp to near minimum.
Adjust volume of TV to desired listening level.
Adjust volume of audio amp to match the level of TV.
Select TV SPEAKERS “OFF&VAO ” Mode. (Refer to the Audio Menu TV Speakers section.)
Volume and mute can now be controlled by the TV Remote Control.
NOTE:
When Selecting TV SPEAKERS “OFF&FAO” Mode, the TV sound output is always at a constant level and cannot
be changed (Refer to the Audio Menu TV Speakers section).
Audio/Video input Connection
TERMINALS ON BACK OF TV
S-Video connection is optional
and overrides the standard Video
connection
when
connected.
(S-Video Connection is oniy
used for CT-32S21.)
OPTIONAL EQUIPMENT
TERMtNALS ON BACK
OF EQUIPMENT
Operation
1. Connect optional equipment as shown to INPUT 1 or 2 terminals. If S-Video is to be used, connect S-Video (YC)
connector to S-Video terminal and connect audio cables to L & R Audio INPUT 1 terminals.
(S-Video Connection is
only used for CT-32S21.)
2. Select the desired Video mode by pressing the TVA/IDEO button.
3. Operate optional equipment (VCR-VDP) as instructed in Optional Equipment manual.
NOTE:
• You must select the same VIDEO Mode that the equipment is connected to.
• Connection of optional S-VIDEO jack automatically disconnects the Normal Video Input 1 jack.
(S-Video Connection
is only used for CT-32S21.)
- 7 -
