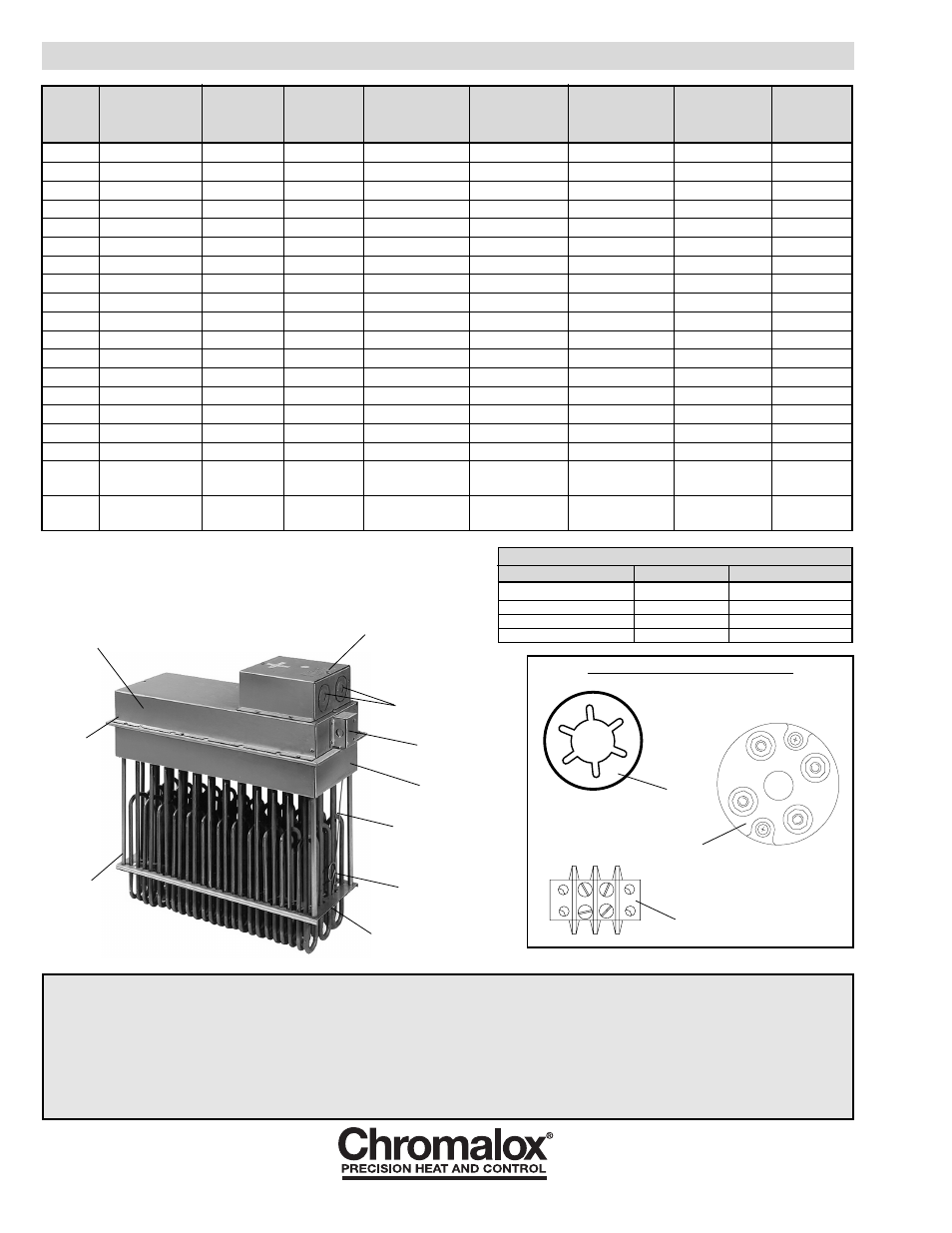

RENEWAL PARTS IDENTIFICATION — TYPE ADHT
Other Parts Common to all Heaters
❶ ❷ ❸ ❹ * ❺ ❻ ❼ ❽
Individual
Replacement Thermocouples Flange
Element Element Support Rod Terminal Block Thermocouple
Model
Element
Retaining Clip Spacer Plate Spacers Assembly Terminal Block
ADHT-005 393-055441-007 (3) 309-122380-003 121-055367-001 272-511327-001 (6) 271-055370-016 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-010 393-055441-006 (6) 309-122380-003 121-055367-002 272-511327-001 (12) 271-055370-017 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-015 393-055441-007 (9) 309-122380-003 121-055367-003 272-511327-001 (18) 271-055370-018 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-020 393-055441-006 (12) 309-122380-003 121-055367-004 272-511327-001 (24) 271-055370-019 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-025 393-055441-007 (15) 309-122380-003 121-055367-005 272-511327-001 (30) 271-055370-020 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-030 393-055441-006 (18) 309-122380-003 121-055367-006 272-511327-001 (36) 271-055370-021 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-035 393-055441-007 (21) 309-122380-003 121-055367-007 272-511327-001 (42) 271-055370-022 242-055376-002 (4) 303-027852-001 303-122014-002
ADHT-040 393-055441-006 (24) 309-122380-003 121-055367-008 272-511327-001 (48) 271-055370-023 242-055376-002 (4) 303-027852-001 (2) 303-122014-002
ADHT-045 393-055441-007 (27) 309-122380-003 121-055367-009 272-511327-001 (54) 271-055370-024 242-055376-002 (4) 303-027852-001 (2) 303-122014-002
ADHT-050 393-055441-006 (30) 309-122380-003 121-055367-010 272-511327-001 (60) 271-055370-025 242-055376-002 (4) 303-027852-001 (2) 303-122014-002
ADHT-060 393-055441-006 (36) 309-122380-003 121-055367-011 272-511327-001 (72) 271-055370-026 242-055376-002 (4) 303-027852-001 (2) 303-122014-002
ADHT-080 393-055441-006 (48) 309-122380-003 121-055367-013 272-511327-001 (96) 271-055370-028 242-055376-002 (5) 303-027852-001 (4) 303-122014-002
ADHT-090 393-055441-006 (54) 309-122380-003 121-055367-014 272-511327-001 (108) 271-055370-029 242-055376-002 (6) 303-027852-001 (5) 303-122014-002
ADHT-100 393-055441-006 (60) 309-122380-003 121-055367-015 272-511327-001 (120) 271-055370-030 242-055376-002 (6) 303-027852-001 (5) 303-122014-002
ADHT-120 393-055441-009 (36) 309-122380-003 121-055367-011 272-511327-001 (72) 271-055370-026 (2) 242-055376-002 (8) 303-027852-001 (4) 303-122014-002
ADHT-160 393-055441-009 (48) 309-122380-003 121-055367-013 272-511327-001 (96) 271-055370-028 (2) 242-055376-002 (10) 303-027852-001 (8) 303-122014-002
ADHT-180 393-055441-009 (54) 309-122380-003 121-055367-014 272-511327-001 (108) 271-055370-029 (2) 242-055376-002 (12) 303-027852-001 (6) 303-122014-002
ADHT-240F 393-055441-159 (72) 309-122380-003 121-055367-032
271-055370-833 (2) 242-055376-002 (12) 303-027852-001 (8) 303-122014-002
ADHT-300F 393-055441-159 (90) 309-122380-003 121-055367-033
271-055370-834 (2) 242-055376-002 (12) 303-027852-001 (10) 303-122014-002
NOTE: Number in Parentheses ( ) indicates the quantity of that part required.
* Older heaters may have retaining channels instead of clips. Contact Factory for part
number and quantity.
ADHT Replacement Element Rating
Part No. Volts Watts
393-055441-159 (w/ftgs) 480 3333
393-055441-006 240 1667
393-055441-007 480 1667
393-055441-009 480 3333
❷
❶
❹
❺
❸
❻
❼
❽
Upper
Terminal Box Lower
Terminal Box
Knockouts for
Line Connections
Thermocouple
Terminal Box
(except ADHT-240F
and ADHT-300F)
Max. Temp 800˚F
TA - W4 - E F.
