Chromalox ADH-005 User Manual
Chromalox, Installation operation, Type adh and adht air duct heaters
Chromalox
®
DIVISION
4
SECTION
ADH
SALES
REFERENCE
DATE
SERVICE REFERENCE
Installation Operation
and
RENEWAL PARTS IDENTIFICATION
PF438-4
161-057949-001
SEPTEMBER, 2004
(Supersedes PF438-3)
Type ADH and ADHT
Air Duct Heaters
© 2004 Chromalox, Inc.
No. Mtg.
Approx.
Approx.
Holes
Net. Wt.
Net. Wt.
No.
9/32”
No.
Dimensions (In.)
Model
(Lbs.)
Model
(Lbs.)
Volts
Phase
kW
Elements
Dia.
Circuits
A
B
C
D
E
H
K
L
M
ADH-005
8
ADHT-005
10
480
3
5
3
10
1
5-5/8 20-3/8 28-1/8
4
1/4
2-1/2
3-1/2
11-1/8 9-1/2
ADH-010
15
ADHT-010
20
480
3
10
6
10
1
7-5/8 20-3/8 28-1/8
6
1/4
3-1/2
3-1/2
11-1/8 9-1/2
ADH-015
25
ADHT-015
30
480
3
15
9
12
1
9-5/8 20-3/8 28-1/8
8
1/4
3
3-1/2
11-1/8 9-1/2
ADH-020
35
ADHT-020
40
480
3
20
12
14
1
11-5/8 20-3/8 28-1/8
10
1/4
2-3/4
3-1/2
11-1/8 9-1/2
ADH-025
40
ADHT-025
50
480
3
25
15
14
1
13-5/8 20-3/8 28-1/8
12
1/4
3-1/4
3-1/2
11-1/8 9-1/2
ADH-030
55
ADHT-030
65
480
3
30
18
14
1
15-5/8 20-3/8 28-1/4
14
3/8
3-3/4
3-1/2
11-1/8 9-1/2
ADH-035
65
ADHT-035
80
480
3
35
21
14
1
17-5/8 20-3/8 28-1/4
16
3/8
4-1/4
3-1/2
11-1/8 9-1/2
ADH-040
70
ADHT-040
90
480
3
40
24
14
2
19-5/8 20-3/8 28-1/4
18
3/8
4-3/4
3-1/2
11-1/8 9-1/2
ADH-045
80
ADHT-045
100
480
3
45
27
14
2
21-5/8 20-3/8 28-1/4
20
3/8
5-1/4
3-1/2
11-1/8 9-1/2
ADH-050
90
ADHT-050
110
480
3
50
30
14
2
23-5/8 20-3/8 28-1/4
22
3/8
5-3/4
3-1/2
11-1/8 9-1/2
ADH-060
105
ADHT-060
130
480
3
60
36
18
2
27-5/8 20-3/8 28-1/4
26
3/8
4-1/2
3-1/2
11-1/8 9-1/2
ADH-080
140
ADHT-080
175
480
3
80
48
22
4
35-5/8 20-3/8 28-1/4
34
3/8
4-3/8
3-1/2
11-1/8 9-1/2
ADH-090
160
ADHT-090
200
480
3
90
54
22
5
39-5/8 20-3/8 28-1/4
38
3/8
4-7/8
3-1/2
11-1/8 9-1/2
ADH-100
175
ADHT-100
220
480
3
100
60
22
5
43-5/8 20-3/8 28-1/4
42
3/8
5-3/8
3-1/2
11-1/8 9-1/2
—
—
ADHT-120
205
480
3
120
36
18
4
27-5/8
35
42-7/8
26
3/8
4-1/2
3-1/2
11-1/8 9-1/2
ADH-144
165
—
—
480
3
144
48
22
4
35-5/8
35
42-7/8
34
3/8
4-3/8
3-1/2
11-1/8 9-1/2
—
—
ADHT-160
270
480
3
160
48
22
8
35-5/8
35
42-7/8
34
3/8
4-3/8
3-1/2
11-1/8 9-1/2
ADH-162
185
—
—
480
3
162
54
22
6
39-5/8
35
42-7/8
38
3/8
4-7/8
3-1/2
11-1/8 9-1/2
—
—
ADHT-180
305
480
3
180
54
22
6
39-5/8
35
42-7/8
38
3/8
4-7/8
3-1/2
11-1/8 9-1/2
ADH-216F
240
—
—
480
3
216
72
22
6
27-5/8
35
42-7/8
26
3/8
4-1/2
3-7/8
20
18-3/8
—
—
ADHT-240F
400
480
3
240
72
22
8
27-5/8
35
42-7/8
26
3/8
4-1/2
3-7/8
20
18-3/8
ADH-270F
300
—
—
480
3
270
90
22
8
33-5/8
35
42-7/8
32
3/8
5-1/2
3-7/8
20
18-3/8
—
—
ADHT-300F
500
480
3
300
90
22
10
33-5/8
35
42-7/8
32
3/8
5-1/2
3-7/8
20
18-3/8

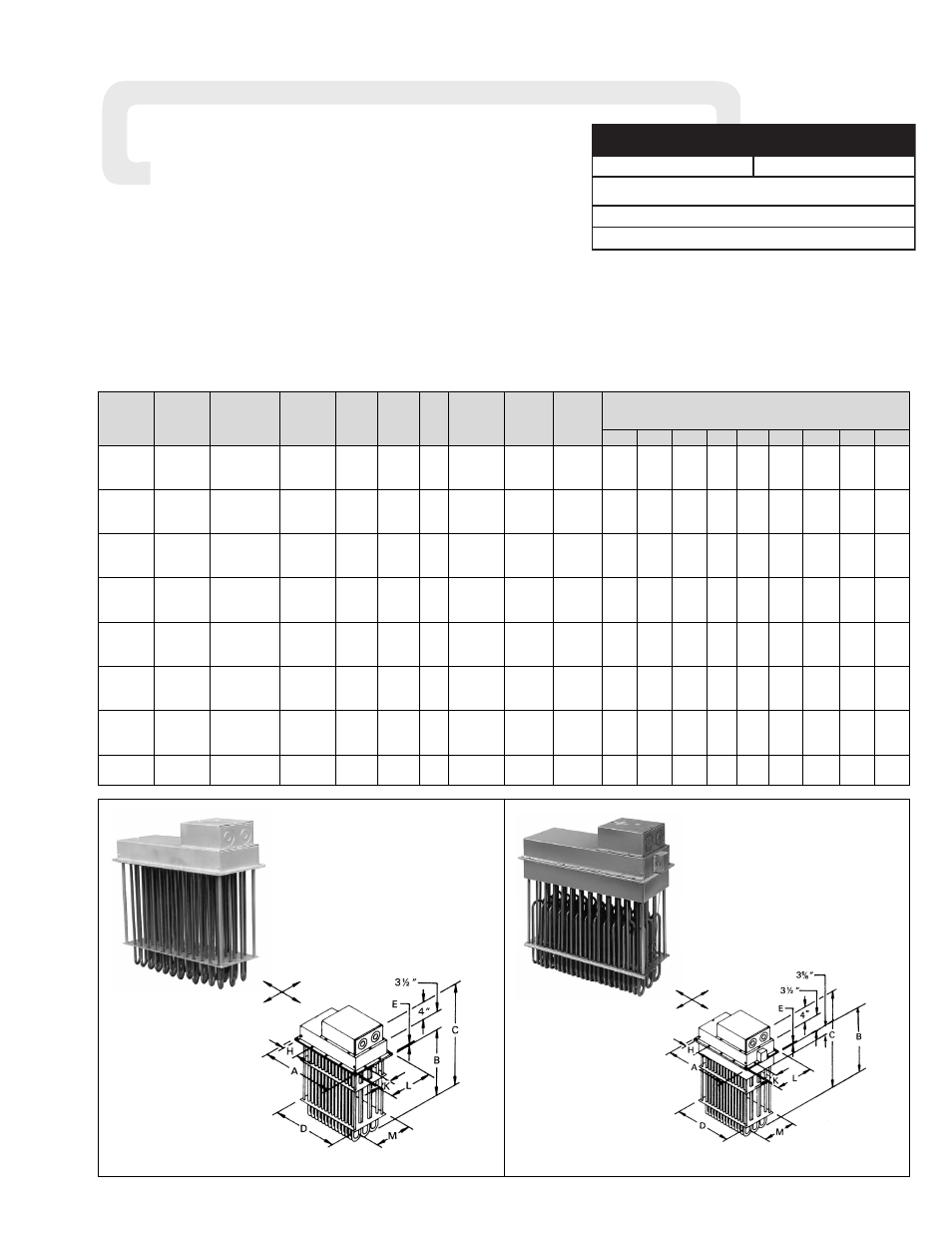

Specifications — Table A
Figure 1 — Dimensions
Figure 2 — Dimensions
Type ADH
Type ADHT
Airflow
Direction
Airflow
Direction
