Chromalox STAR PG434-4 - Manual

(Supersedes PG434-4)
PG434-5
JULY, 2012
Type STAR Radiant Heater
For Fixed Overhead Installations
© 2012 Chromalox, Inc.
Specifications – Table 1
Amperage Dimensions (In.) Wire Ga. (Min.)
Model Figure Volts KW
1 Phase 3 Phase
BTU
A Length B Width D Depth 1 Phase 3 Phase
STAR-02A-11-F 120 1.5 12.5 NA 5118 14 NA
STAR-02A-81-F 208 2 9.6 NA 6824 14 NA
STAR-02A-21-F 1 240 2 8.3 NA 6824 33-1/4 15-1/2 11-9/16 14 NA
STAR-02A-71-F 277 2 7.2 NA 6824 14 NA
STAR-02A-41-F 480 2 4.2 NA 6824 14 NA
STAR-02A-61-F* 600 2 3.3 NA 6824 14 NA
STAR-05A-81-F 208 4.5 21.6 NA 15354 12 NA
STAR-05A-21-F 240 4.5 18.8 NA 15354 12 NA
STAR-05A-71-F 1 277 4.5 15.9 NA 15354 55-3/4 15-1/2 11-9/16 14 NA
STAR-05A-41-F 480 4.5 9.4 NA 15354 14 NA
STAR-05A-61-F* 600 4.5 7.5 NA 15354 14 NA
STAR-06A-83-F 208 6 28.8 16.7 20472 10 12
STAR-06A-23-F 240 6 25.0 14.4 20472 10 12
STAR-06A-71-F 2 277 6 21.7 — 20472 32-1/2 23-5/8 11-1/2 10 —
STAR-06A-43-F 480 6 12.5 7.2 20472 12 12
STAR-06A-63-F* 600 6 10.0 5.8 20472 12 12
STAR-14A-83-F 208 13.5 NR 37.5 46062 NR 10
STAR-14A-23-F 240 13.5 NR 32.5 46062 NR 10
STAR-14A-71-F 2 277 13.2 47.7 — 45038 55-5/8 23-5/8 11-3/4 8
STAR-14A-43-F 480 13.5 28.1 16.2 46062 12 12
STAR-14A-63-F* 600 13.5 22.5 13.0 46062 12 12
* Not UL or CSA
NA - Not Available
NR - Not Recommended

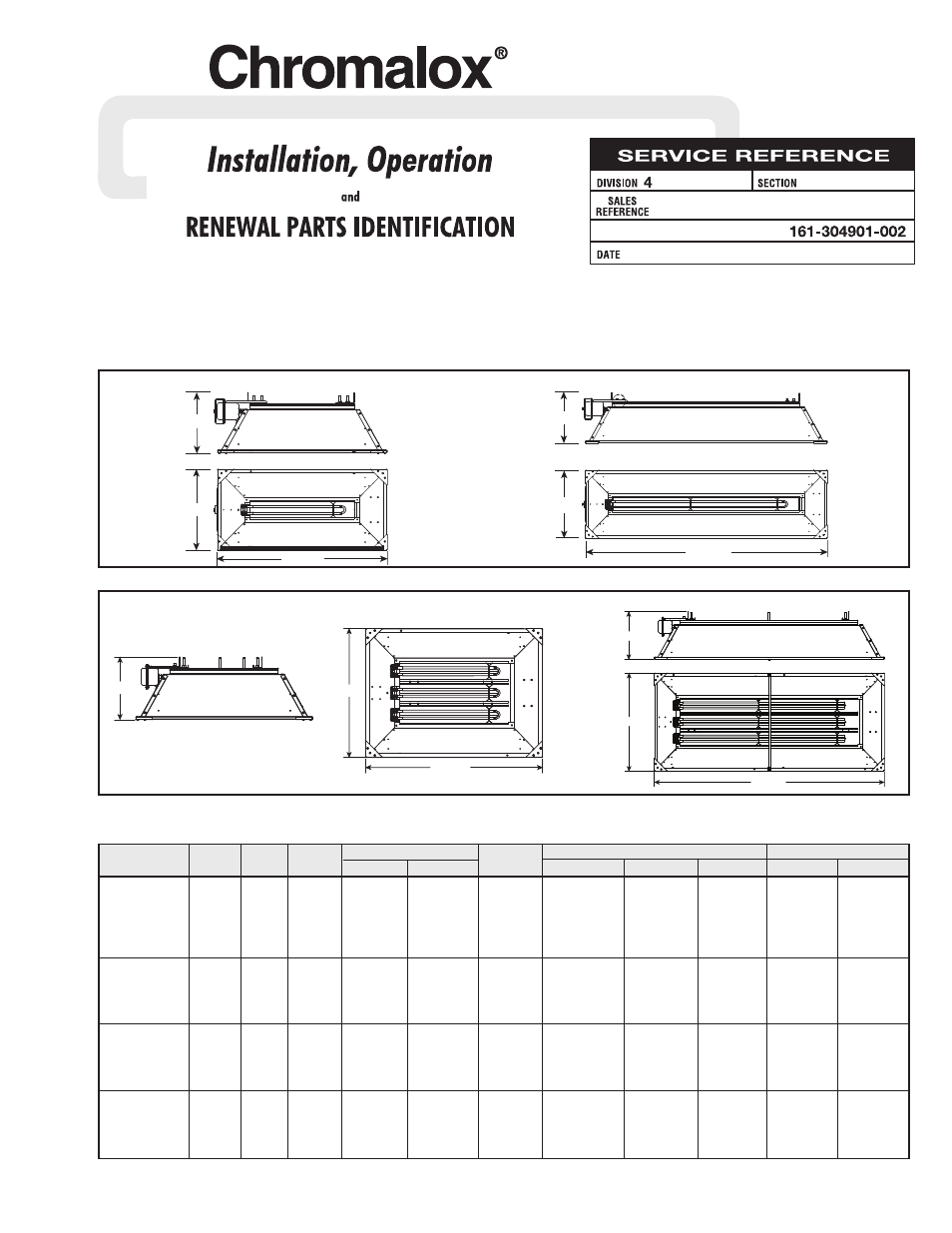

Figure 2
11-9/16"
15-1/2"
33-1/4"
23-5/8"
32-1/2"
11-1/2"
Figure 1
B B
11-9/16"
15-1/2"
55-3/4"
23-5/8"
55-5/8"
11-1/2"
2.0 kW 4.5 kW
6.0 kW 13.5 kW
