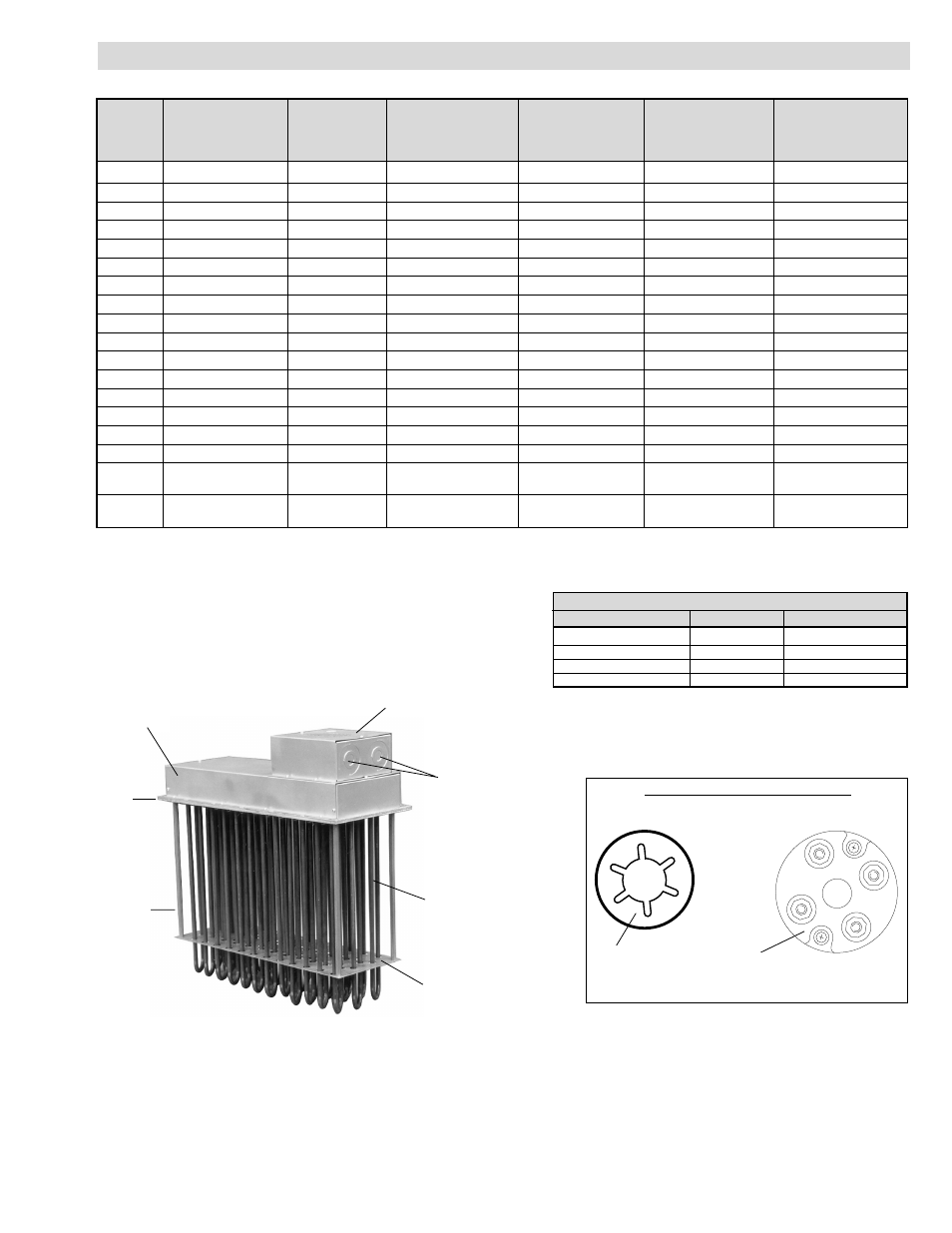

RENEWAL PARTS IDENTIFICATION — TYPE ADH
7
Other Parts Common to all Heaters
❶ ❷ ❸ * ❹ ❺ ❻
Individual
Replacement Flange
Element Element Support Rod Terminal Block
Model
Element
Retaining Clip Spacer Plate Spacers Assembly
ADH-005 393-055440-007 (3) 121-055367-001 272-511327-001 (6) 271-055370-001 242-055376-001 (4) 303-027852-001
ADH-010 393-055440-006 (6) 121-055367-002 272-511327-001 (12) 271-055370-002 242-055376-001 (4) 303-027852-001
ADH-015 393-055440-007 (9) 121-055367-003 272-511327-001 (18) 271-055370-003 242-055376-001 (4) 303-027852-001
ADH-020 393-055440-006 (12) 121-055367-004 272-511327-001 (24) 271-055370-004 242-055376-001 (4) 303-027852-001
ADH-025 393-055440-007 (15) 121-055367-005 272-511327-001 (30) 271-055370-005 242-055376-001 (4) 303-027852-001
ADH-030 393-055440-006 (18) 121-055367-006 272-511327-001 (36) 271-055370-006 242-055376-001 (4) 303-027852-001
ADH-035 393-055440-007 (21) 121-055367-007 272-511327-001 (42) 271-055370-007 242-055376-001 (4) 303-027852-001
ADH-040 393-055440-006 (24) 121-055367-008 272-511327-001 (48) 271-055370-008 242-055376-001 (4) 303-027852-001 (2)
ADH-045 393-055440-007 (27) 121-055367-009 272-511327-001 (54) 271-055370-009 242-055376-001 (4) 303-027852-001 (2)
ADH-050 393-055440-006 (30) 121-055367-010 272-511327-001 (60) 271-055370-010 242-055376-001 (4) 303-027852-001 (2)
ADH-060 393-055440-006 (36) 121-055367-011 272-511327-001 (72) 271-055370-011 242-055376-001 (4) 303-027852-001 (2)
ADH-080 393-055440-006 (48) 121-055367-013 272-511327-001 (96) 271-055370-013 242-055376-001 (5) 303-027852-001 (4)
ADH-090 393-055440-006 (54) 121-055367-014 272-511327-001 (108) 271-055370-014 242-055376-001 (6) 303-027852-001 (5)
ADH-100 393-055440-006 (60) 121-055367-015 272-511327-001 (120) 271-055370-015 242-055376-001 (6) 303-027852-001 (5)
ADH-144 393-055440-009 (48) 121-055367-013 272-511327-001 (96) 271-055370-013 (2) 242-055376-001 (10) 303-027852-001 (4)
ADH-162 393-055440-009 (54) 121-055367-014 272-511327-001 (108) 271-055370-014 (2) 242-055376-001 (12) 303-027852-001 (6)
ADH-216F 393-055440-171 (72) 121-055367-032 271-055370-866 (2) 242-055376-001 (12) 303-027852-001 (6)
ADH-270F 393-055440-171 (90) 121-055367-033 271-055370-867 (2) 242-055376-001 (12) 303-027852-001 (8)
NOTE: Number in parentheses ( ) indicates the quantity of that part required.
* Older heaters may have retaining channels instead of clips. Contact Factory for
part number and quantity.
❷
❶
❹
❺
❸
❻
Lower
Terminal Box
Upper
Terminal Box
Knockouts for
Line Connections
ADH Replacement Element Rating
Part No. Volts Watts
393-055440-171 (w/ftgs) 480 3000
393-055440-006 240 1667
393-055440-007 480 1667
393-055440-009 480 3000
(except ADH-216F
and ADH-270F)
