Panasonic LF-1004AB User Manual
Page 17
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

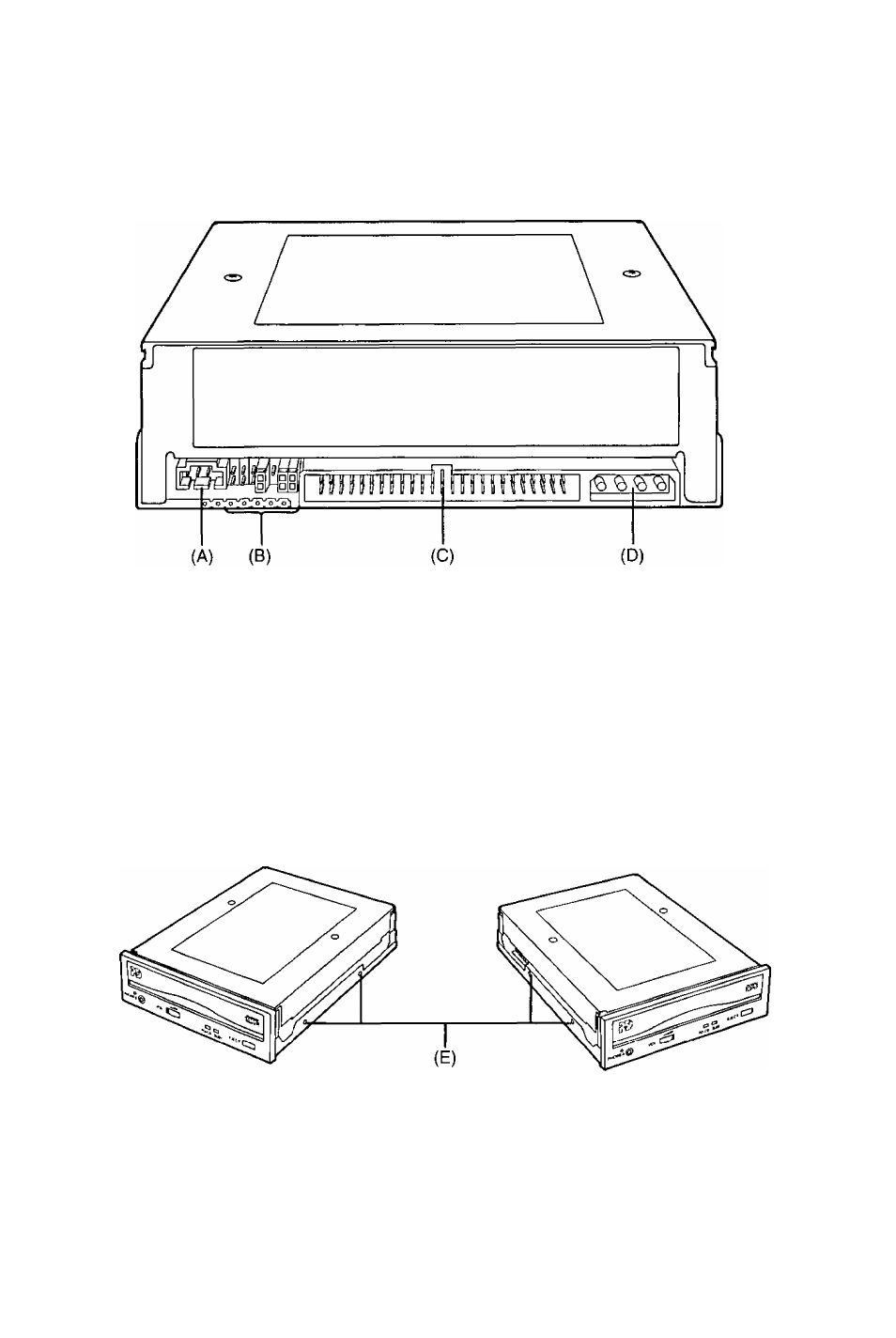

Rear Panel
(A) AUDIO OUTPUT CONNECTOR—for connecting the internal audio cable (included).
(B) JUMPER CONNECTOR—for setting the drive’s SCSI ID, LUN, TERMINATOR and TERM POWER.
(C) SCSI CONNECTOR—for connecting the interna) SCSI cable (included).
(D) POWER SUPPLY CONNECTOR—for connecting the power cable.
Right Panel
Left Panel
(E) ATTACHMENT SCREW HOLES—when securing the PD/CD-ROM drive to a personal computer
to other device, secure the drive with the provided attachment screws into the areas as indicated.
-
17
-
