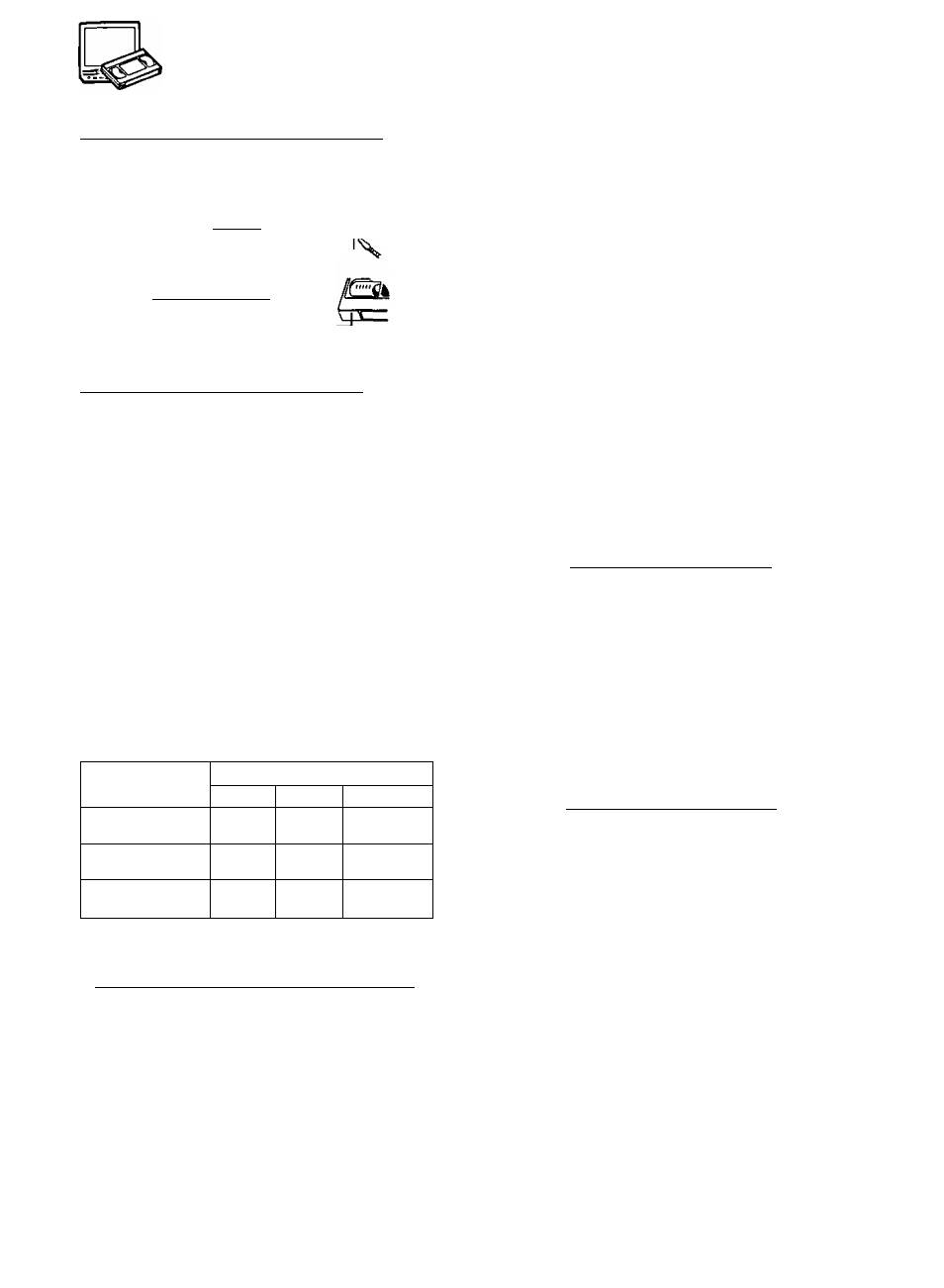

Unit and Cassette Information
[ Erase Protection (Record Tab) ]
Cassettes have a record tab to ensure that
recordings are not accidentally erased.
To prevent accidental
erasure, break off the tab
(
with a screwdriver?^ '
To record again, cover the
hoie with cellophane tape.
[ DST. (Daylight Saving Time) )
Your Combination VCR can be set to automatically
adjust the clock for Daylight Saving Time, (page 9.)
Spring (First Sunday in April)
When set to DST:ON, the Combination VCR will
automatically set the clock ahead one hour.
Autumn (Last Sunday in October)
When set to DST:ON, the Combination VCR will
automatically set the clock back one hour.
• If your area does not observe Daylight Saving Time,
select DST: OFF.
• Keep these time changes in mind when programming
the Combination VCR for timer recordings.
[ Maximum Record/Playback Time '
Only use tapes with the HfflS mark in this unit.
Tape Speed
Setting
Type of Video Cassette
T60 T120 T160
SP ,
(Standard Play)
1 Hour 2 Hours
2 Hours
40 minutes
LP
(Long Play)
2 Hours 4 Hours
5 Hours
20 minutes
SLP
(Super Long Play)
3 Hours 6 Hours 8 Hours
Reset all Combination VCR Memory Functions ]
Use when moving the Combination VCR to a
new location, or if a mistake was made in the
One Time Setup section.
• Make sure a tape is not inserted in the Combination
VCR.
1) Press POWER to turn the Combination VCR
on.
2) Hold down both the PLAY and REWIND
buttons on the Combination VCR for more
than 5 seconds.
• The power will shut off.
3) Turn the power back on and perform the One
Time Setup section on page 8.
Head Cleaning
V IDEO HEADS MAY
NEED CLEANING
PLEASE INSERT HEAD
CLEANING CASSETTE
OR REFER TO MANUAL
END:PLAY KEY
Your Combination VCR will not normally require
head cleaning, however, the heads may become
clogged when playing an old or damaged tape.
Head Clog Sensor
If head cleaning becomes
necessary, the Combination
VCR will display the screen
shown to the right during
playback of a video tape. To
exit this screen, press PLAY
on the remote control or
Combination VCR.
■ Use “dry” type head cleaning cassette* * only.
• Be sure to follow the cleaning cassette instructions
carefully. Excessive use of a cleaning cassette can
shorten head life.
• If using a head cleaning cassette does not solve the
problem, contact your nearest Factory Service Center or
authorized Service Center. (See page 27.)
• Cleaning cassette part No. NV-TCL30PT is
recommended.
______ Build-in Head Cleaner_______ J
A clean video head helps produce a clear picture.
So, we have equipped your Combination VCR with a
built-in, non chemical head cleaning system that helps
prevent clogging of the video heads. Cleaning is
performed each time you load or unload a video
cassette.
Note: This feature is preventative only. If your video heads
are seriously clogged, consider the use of a chemical
nonabrasive head cleaning kit or take your
Combination VCR to a Service Center.
c
Product Specifications
Display
Picture Tube:
VCR
Video Recording System: 2 rotary heads helical scanning
Audio Track:
J
13 inch measured diagonal 90°
deflection Picture Tube
Tuner
Broadcast Channels:
CABLE Channels:
General
Power Source:
Power Consumption:
Television System:
Speaker:
1 track
VHF2-13, UHF 14-69
Midband A through I (14-22)
Superband J through W (23-36)
Hyperband AA-EEE (37-64)
Lowband A-5-A-1 (95-99)
Special CABLE channel 5A (01)
Ultraband 65-94, 100-125
120V AC, 60 Hz
Approx. 69 watts (Power On)
Approx. 5 watts (Power Off)
EIA Standard NTSC color
1 piece
Operating Temperature; 41“F~104“F (5“C-40°C)
Operating Humidity;
Weight:
Dimensions:
10%-75%
26. 4 lbs. (12 Kg)
15-3/16’ (W) X 15-3/16’ (H) X 16-11/16" (D)
386 (W) X 385 (H) X 424 (D) mm
Note: Designs.and specifications are subject to change
without notice.
25
