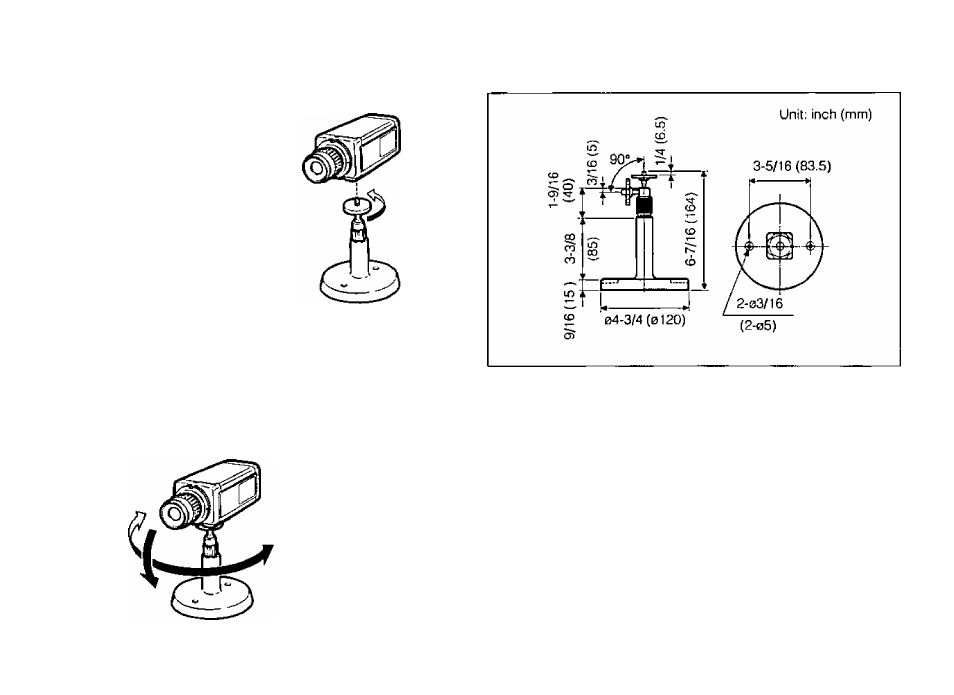

■2. Insert the camera fixing screw of the camera

mounting bracket into the camera mounting hole

and tighten the screw firmly.

DIMENSION OF MOUNTING BRACKET

Connect the camera and monitor with the coaxial
cable and turn on the power switch of the monitor.

While viewing the monitor picture, loosen the

angular control screw slightly. Adjust the camer
a's angle to the desired position, and then tighten

the screw firmly.

Angular Control Screw

Cautions on installation

Use wood screws with the camera mounting bracket
that are suitable for Installation into a wood base of
appropriate dimensions and strength. For the installa
tion into a material other than wood, refer servicing to
qualified service personnel.

-11-
