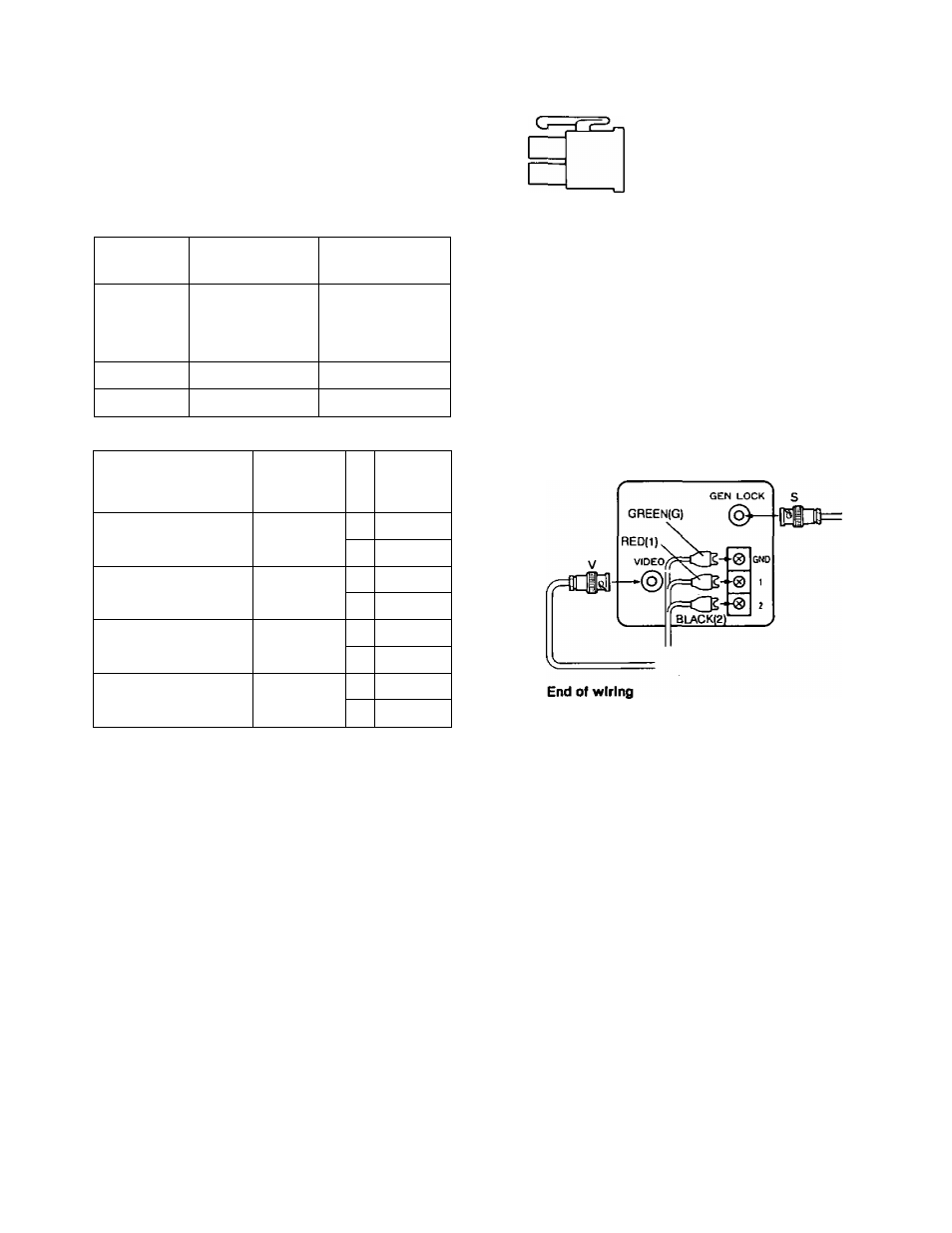

C. In case of using the accessory connectors
(MX555706):
3 2 1
CN-1
CN Pin No.
WV-7220D
Usage of Terminal Power Source
CN1-1
CN1-2
CN1-3
CN1-4
LEFT
RIGHT
AUTO PAN
24V AC CAMERA
24 V AC
CN1-5 AC COMMON 24V AC Common
CN1-6 GND
Copper wire gauge fWG No.
(UL1007, UL1015}
Impedance
at 68®F (20°C)
(ii/km)
Cable
length
#24 77.9 ft 55
m 14
#22 50.4 ft 90
m 25
#20 32.3 H 140
m 40
#18 19.9 ft 220
m 60
The atx>ve length indicated are approximate.
How to assemble the connector:
1. Strip back the cable jacket approx. 0.1 inch (3 mm) and
separate the individual conductors.
2. Prepare the individual conductors for clamping. If
clamping, use MOLEX brand tool part number
57027-5000 (for UL-Style Cable UL1015) or
57026-5000 (for UL-Style cable UL1007).
Up
Contact ^
Approx. 0.1
-1
■ Wire
an“
Insert the wire until A position
clamp the contacts.
3. After clamping the contacts, push them into the proper
holes in the connector housing until they snap in place.
Up
t
wire
Contact
CAUTION:
Shrinking the cable-entry seal is a one-time procedure.
DO NOT shrink the cable-entry seal until it has been
ascertained that the unit is functioning.
D. Connect with TV camera
Camera Power Cable
Connect the connectors to the 24 V AC Power Terminal
Strip of the low-voltage camera according to the diagram.
Camera Cable
Connect the Camera Cable to the video output connector
of the low-voltage camera.
CAMERA
3.
Turn on the Power ON/OFF Switch of the TV camera.
Connect the Power Cord of the Indoor Receiver
WV-RC100 to the 24V AC camera
Turn on the Power ON/OFF Switch of the indoor
receiver.
CAUTION:
• CONNECT THIS TO A 24V AC CLASS 2 POWER
SUPPLY ONLY.
Caution: To prevent fire or shock hazard,
the UL listed wire VW-1, style 1007
should be used for the cable for 24V
AC Input Terminals.
-
6
-
