(1)
Camera Power Cable
Indicate 1 — Power Supply 1
Indicate 2 — Power Supply 2
Indicate G — Camera Ground
(2) Camera Cables
BNC Type Connectors
Indicate V — Video
Indicate S — Ext Sync.
(3) Cover Locking Screw
(4) Tilting Angle Adjusting Screw
Adjustable tilting angle 0° - 45°.
(5) Camera Mounting Plate
(6)
Camera Mounting Screw
Standard photographic pan head screw (U-1/4*).
(7) Camera Guide Screw
(8) Camera Guide Hole
(9)
Panning Angle Indicator
(10) Panning Angle Limit Adjusting Screw
Adjustable panning angle.
20° - 320°.
(11) Mounting Plate
(12) Control Connector (6 Pins)
6
5
4
3
2
1
LEFT
RIGHT
AUTO
CAMERA
AC Connector
Ground
(13) Cable Clamp
Clamp for connector cable
(14) Video Terminal Board (VIDEO)
This terminal is connected with the video input of the
Receiver WV-RC100,
(15) Ext. Sync Terminal Board (EXT SYNC)
This
terminal
is
connected
with
the
external
sync
generator.

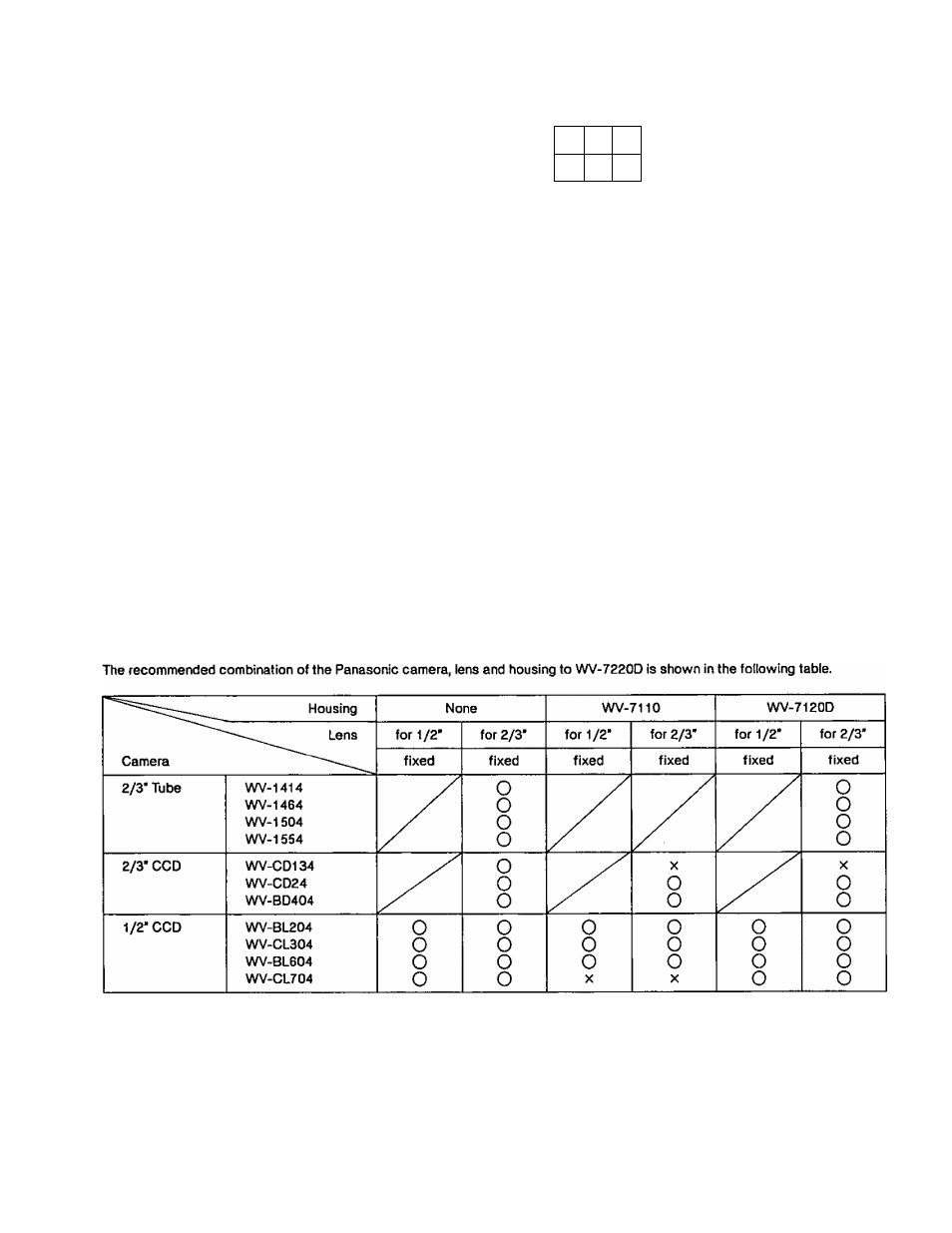

APPLICABLE CAMERAS, LENSES AND HOUSINGS
O
Possible
X Impossible
-
3
-
