USER’S MANUAL
4 Installing Your Receiver
4.1 Connections
The following illustrations show some examples for connecting this HD receiver.
Select the connection that is best suited for your needs. Many other connections
may be possible when optional devices such as RF cable splitters are included in
your system. These devices may cause signal degradation and, if too many are
used, poor quality picture and sound may result. RGB and Monitor connectors can
not be used at the same time.

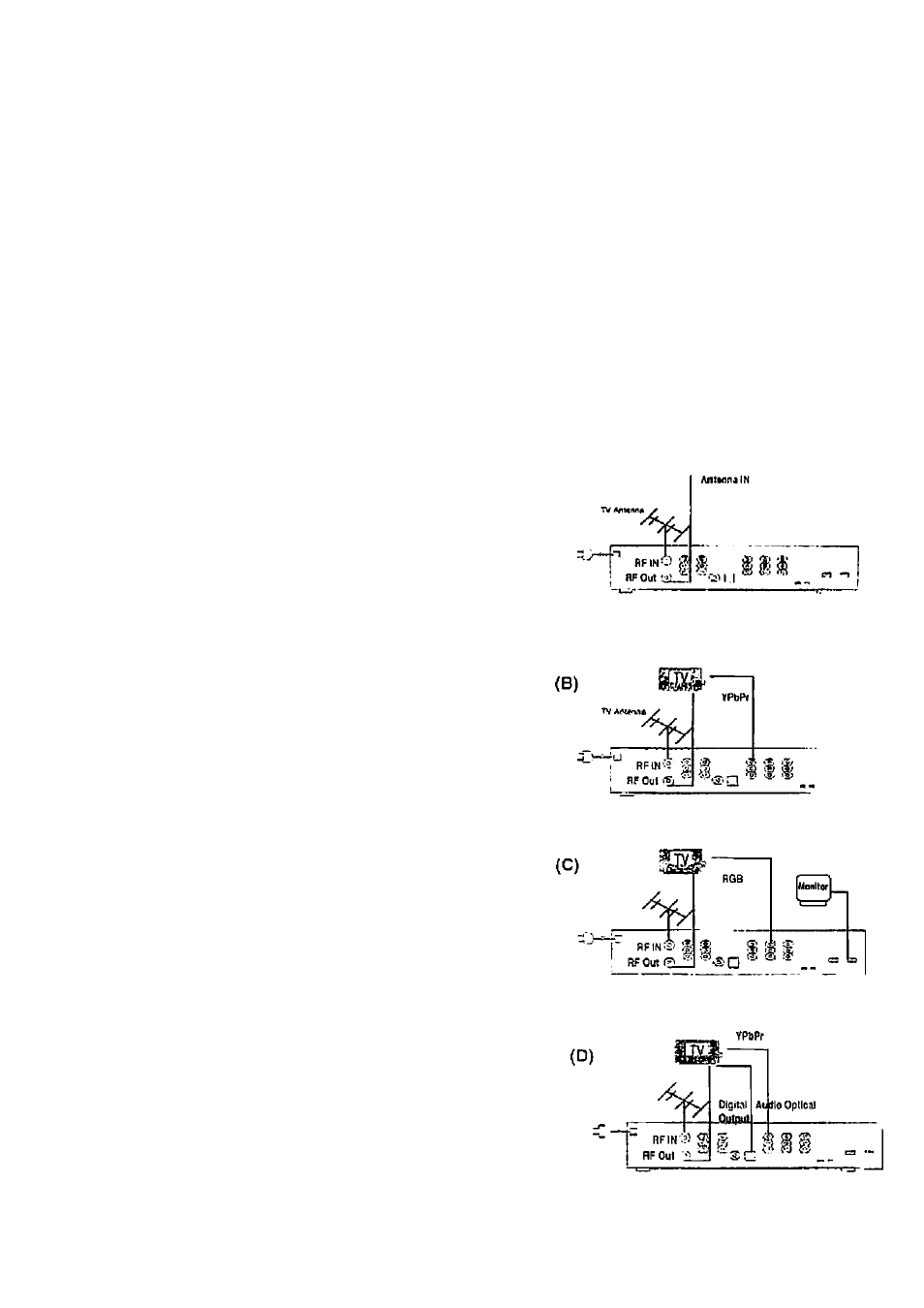

Terrestrial antenna/cable connection
Connect the TV antenna cable to the HD
receiver RF IN connector. Also connect the
cable between your TV Antenna IN and RF
Out connector on the rear of the receiver.
This connection allows your TV set to
receive normal analogue programs. (Refer
to A)
(A)
Adjust SW1 and SW2 according to the
formal supported by your TV. and it
contains four modes configuration: AA, AB,
BA and BB. (Refer to display output
configuration table on the rear panel of your
receiver). Under each mode, there are
several choices for connection.
AA/AB/BB: HD Mode
Video:
« Connect the YPbPr component video
output socket on your receiver to TV
YPbPr component video input. Be
sure to match the colors on the RCA
sockets with the colored plugs.
(Refer to B)
• Connect the RGB component video
output RCA socket to Monitor or TV.
Or you can choose D-sub connector
(monitor) on your receiver to monitor
