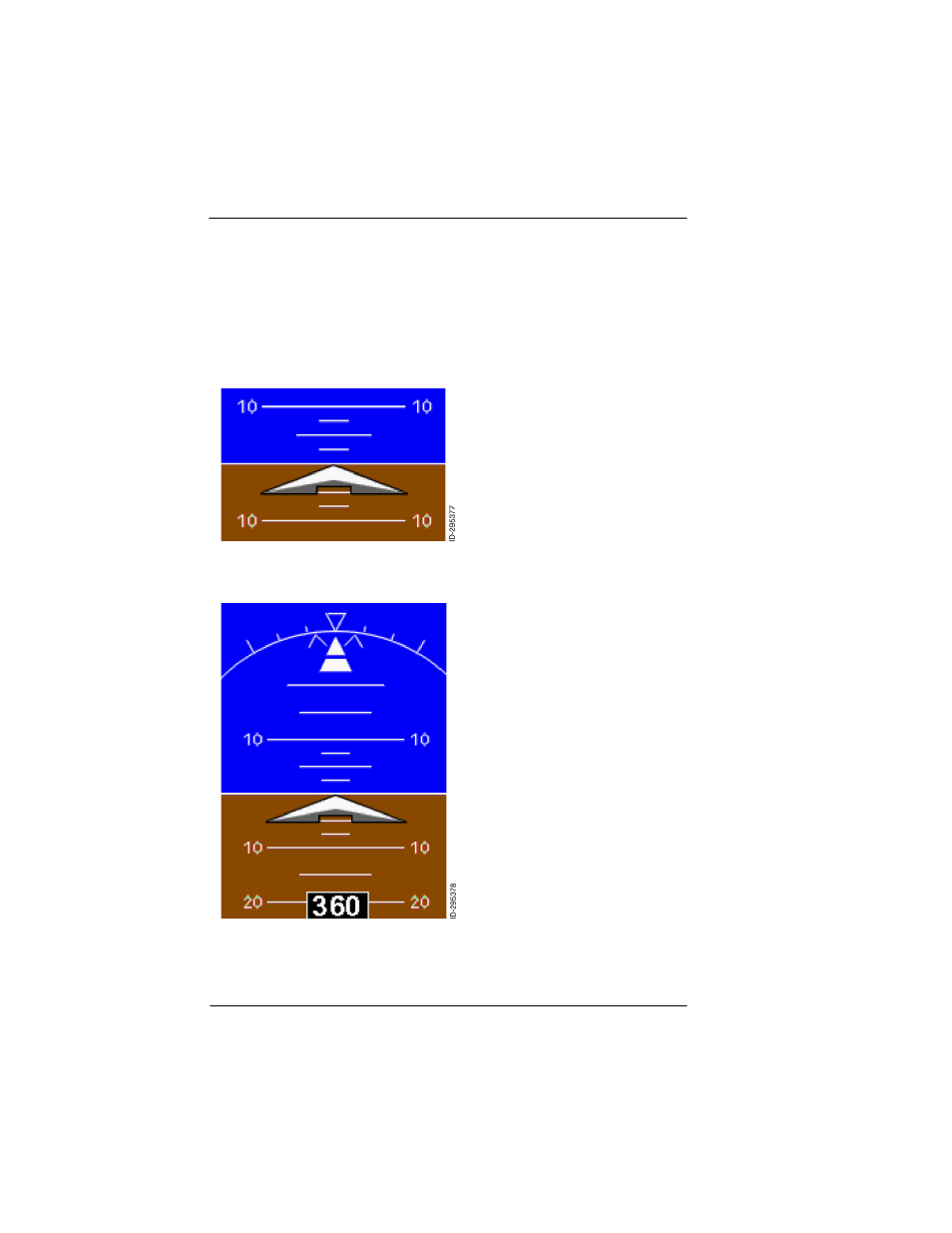

AIRCRAFT REFERENCE SYMBOL
The aircraft reference symbol is a fixed object displayed in the center
of the ADI. The aircraft reference symbol is used in conjunction with
the attitude pitch tape to represent aircraft pitch and roll.
The single cue aircraft symbol
is displayed as triangular
white wedges shaded gray in
the lower half. Peak is
centered in the ADI.
ATTITUDE PITCH TAPE
The attitude pitch tape
identifies the current aircraft
pitch attitude. The attitude
pitch tape is displayed
through the center of the
attitude display. The attitude
pitch tape is labeled with
numeric values to ± 60
o
pitch
angle.
On the blue scale, pitch
reference markings are at
+2.5
o
, +5
o
, +7.5
o
, +10
o
, +15
o
,
+20
o
, +25
o
, +30
o
, +40
o
, and
+60
o
. On the
brown
scale,
pitch reference markings are
at -2.5
o
, -5
o
, -7.5
o
, -10
o
, -15
o
,
-20
o
, -30
o
, -45
o
, and -60
o
.
