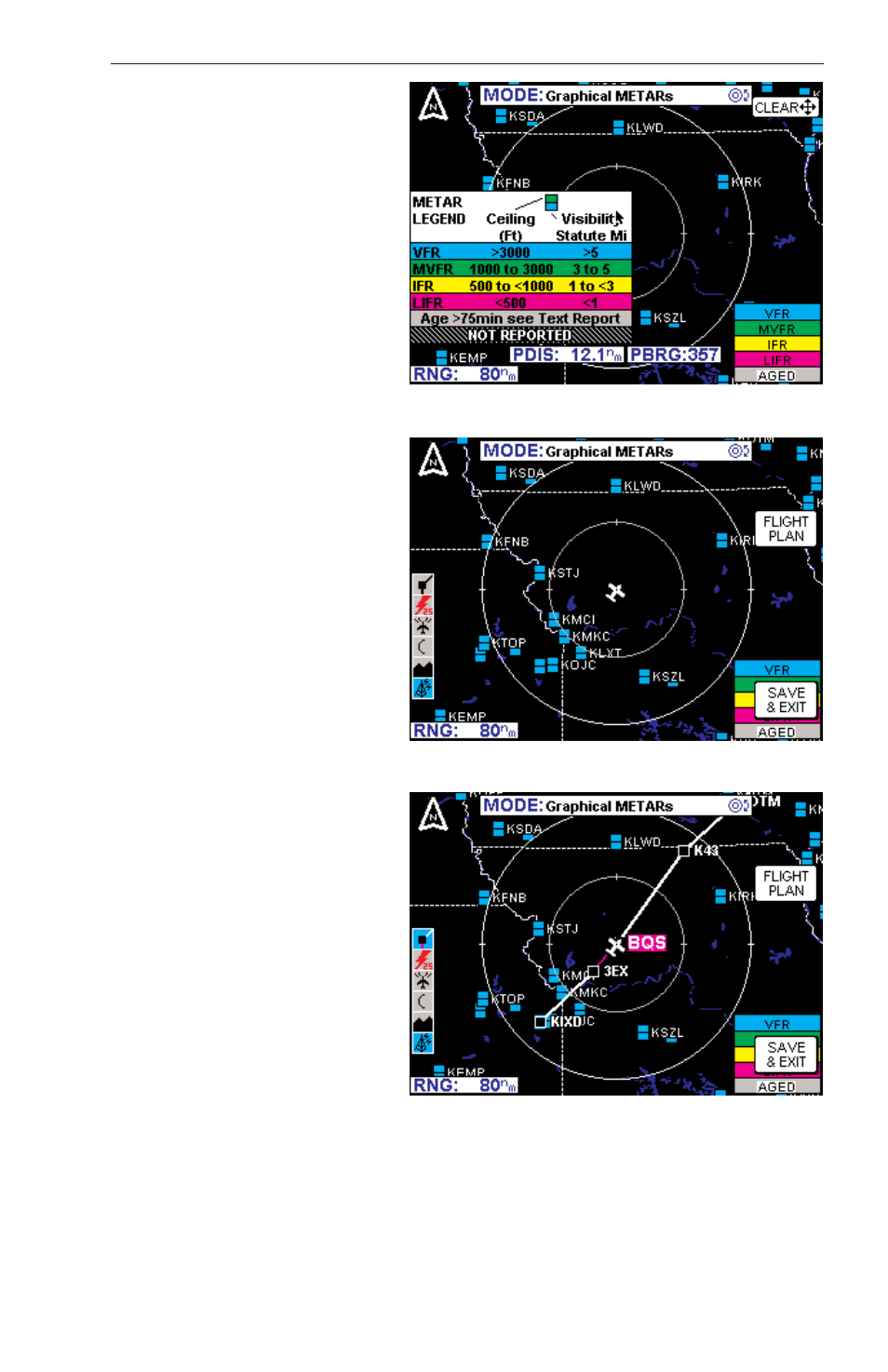

8. To view the graphical
METAR LEGEND, move the
joystick pointer to an area
with no icons and press the
MORE INFO softkey. The
legend will be displayed as in
Figure 53. Move the joystick
to remove the legend from
the display.
9. Press the OVLY Key to
overlay flightplan data on the
Graphical METAR map (see
Figure 54).
The FLIGHT PLAN softkey
toggles the overlay on or off
as in Figure 55.
Press the SAVE & EXIT
softkey to retain the selection
on the display.
Figure 53
Figure 55
Figure 54
Normal Operation
