KMD 550/850 FIS Addendum
29

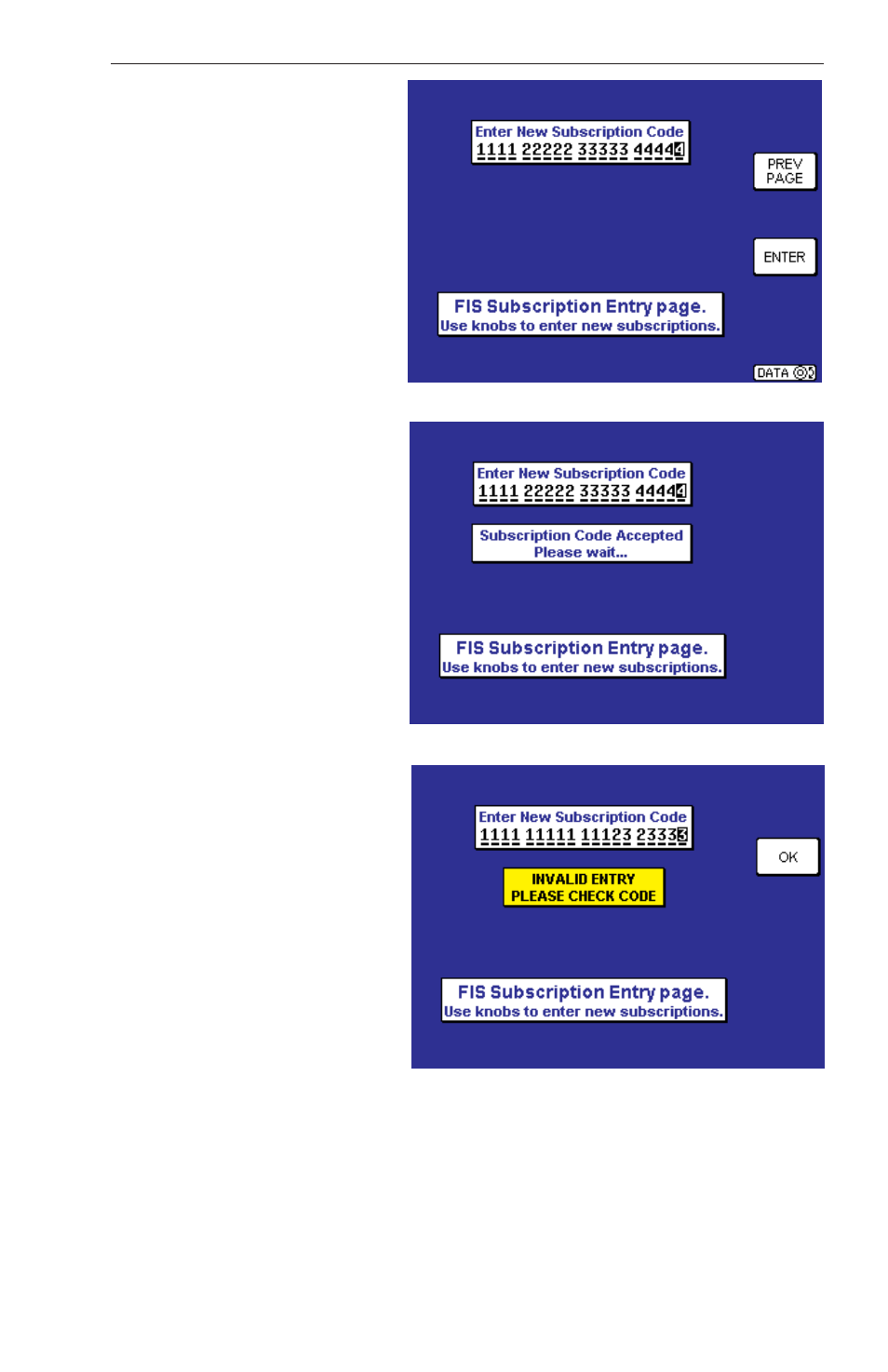

6. The inner Control Knob
selects the alphanumeric
character and the outer
Control Knob selects the
character position. Turn the
inner Control Knob until the
first character of the
Subscription Code is dis-
played in first space. Turn
the outer Control Knob clock-
wise to move to the next
space to the right. Turn the
inner Control Knob until the
second character of the
Subscription Code is dis-
played. Continue this
sequence until the entire
Subscription Code has been
entered as shown in Figure
33.
After selecting the last char-
acter space of the
Subscription Code the
ENTER softkey is now avail-
able.
7. After entering the last
Subscription Code character,
press the ENTER softkey.
The subscription should be
accepted and processed as
shown in Figure 34.
If an incorrect code has been
entered, a message like that
shown in Figure 35 will be
displayed.
FIS Subscriptions
Figure 33
Figure 34
Figure 35
