Revision 6 Feb/2009

KMD 550/850 FIS Addendum

17

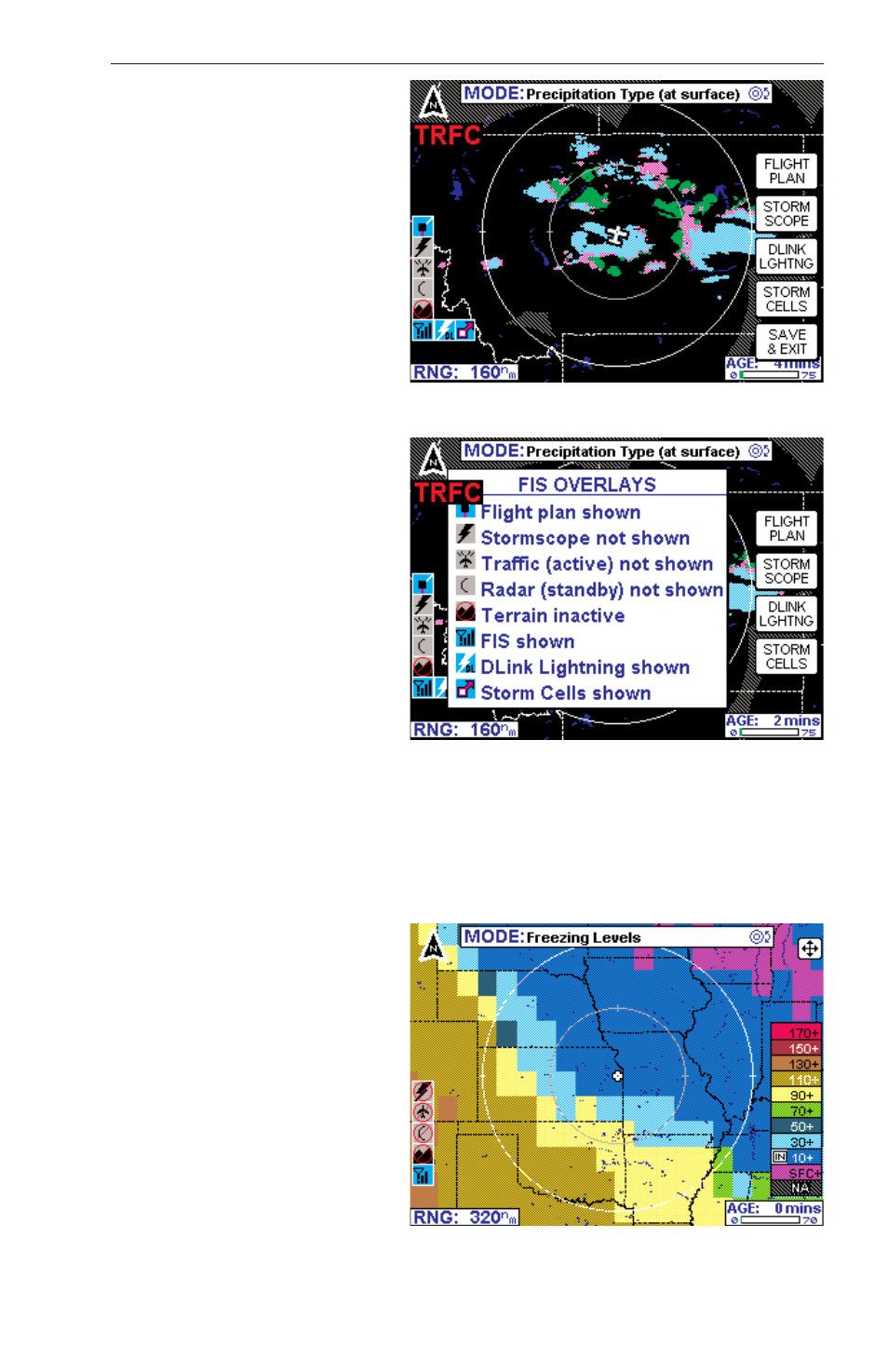

Pressing and holding the
OVERLAY key will display
the FIS Overlays window.
This window displays the
status of the overlays that
are available to the
Precipitation Type screen as
shown in Figure 8. The
window will no longer be dis-
played when the overlay key
is released.

FREEZING LEVELS

(XM ONLY)

The Freezing Level product
decoded and displayed in a
graphical format as shown in
Figure 9. The color code for
each altitude level is indi-
cated in the legend box on
the right of the display.
Additionally the “IN” box in
the legend indicates the cur-
rent level the aircraft is in.

Figure 9

Figure 8

Figure 7

Value Added Service Weather Products
