38

Revision 6 Feb/2009

KMD 550/850 FIS Addendum

Normal Operation

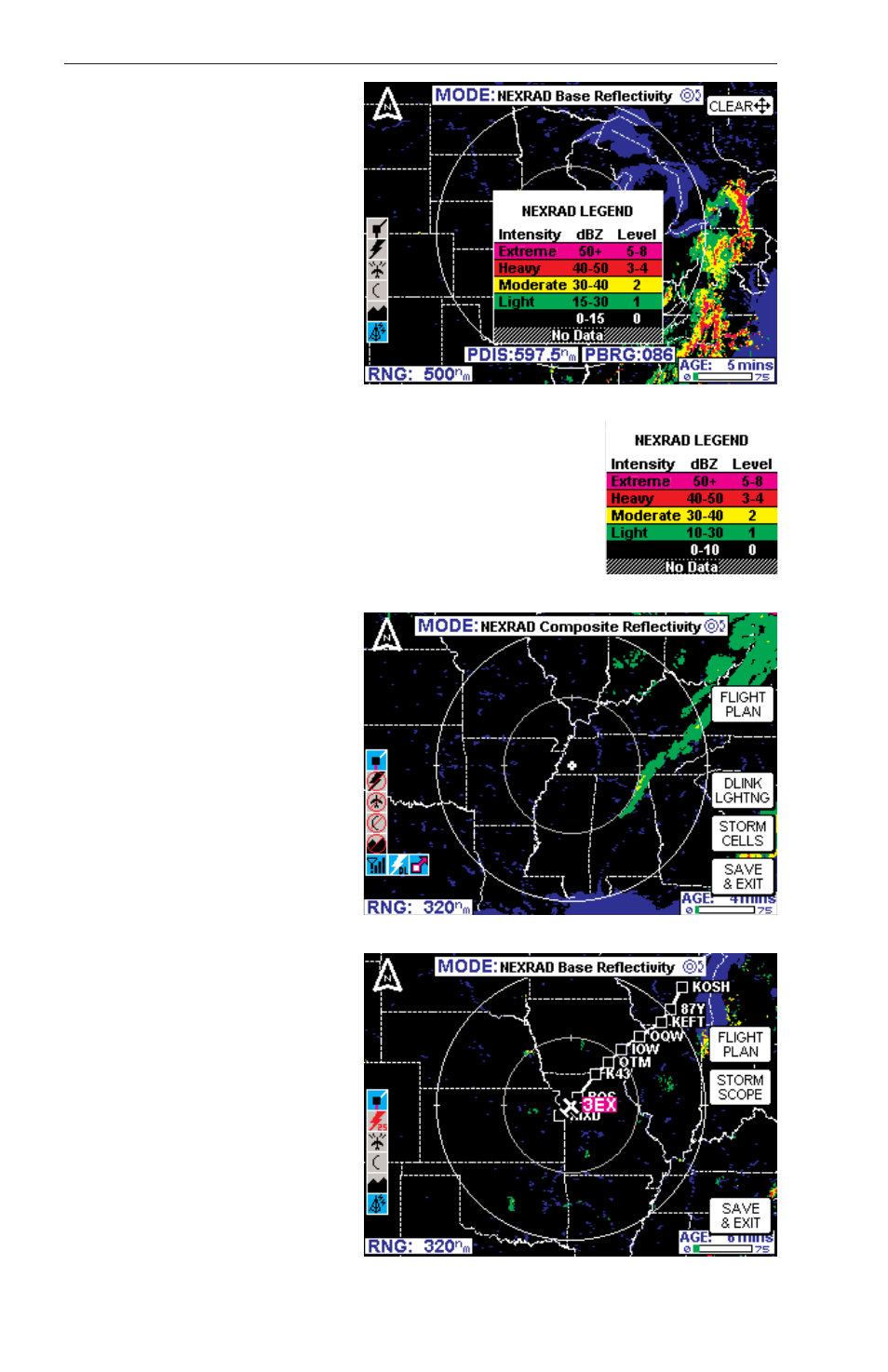

Pressing the MORE INFO
softkey will display the VDL
NEXRAD LEGEND (Figure
43a) or the XM NEXRAD
LEGEND
(Figure 43b). To
clear the legend from the dis-
play, move the joystick. The
XM legend reflects the lower
limit of 10 dBz for light precip-
itation.

Press the RESET STICK
softkey to return to the pre-
sent position display. If no
actions are taken for a period
of 30 seconds, the display will
return to the present position.

4. Press the OVLY Key to
overlay flightplan or lightning
data on the NEXRAD map
(see Figure 44). Lightning
overlay capability will only be
available if a Stormscope® is
installed with the system.

The FLIGHT PLAN and
STORMSCOPE softkeys
toggle the respective overlay
on or off as in Figure 45.

Figure 45

Figure 44

Figure 43a

Figure 43b
