How To: Change the Lenses
How To: Connect Cable to Cam
How To: General Connections
How To: Change the Neutral Density Filters
How To: Change the Neutral Density Filters
1. Remove the lens cover by twisting it counter
clockwise (A).
2. Inside the lens cover is a retaining ring. Insert the
T wrench from the Tool Kit into the notches of the
retaining ring and turn it counterclockwise until the
retaining ring is completely removed. Once the ring
is loosened, it may be faster to use your fingers (C).
3. Safely remove the filter by turning the lens cover
upside down into the palm of your hand or on a soft,
flat surface (B).
4. Before inserting a new filter, use a soft cloth to
clean off any dirt or fingerprints. Carefully place the
clean filter into the lens cover (D).
5. Insert the retaining ring into the lens cover and turn
clockwise with the T wrench. Be careful to avoid
cross threading. The retaining ring should be tight
enough to hold the filter in place, but not too tight
that the filter cracks or chips (E).
6. Return the lens cover to the main body by turning
clockwise (F).
Please Note: The Neutral Density Filters are not
compatible with the Wide Angle Lens Cover.
A
F
B
C
D
E
14 | How To
How To: Connect Cam to Television
How To: Connect Cam to Television
How To: Connect Cam to Recording Device
How To: Connect LANC to Recording Device
How To: Connect Cam to Power Source
Viosport Cigarette Lighter
How To: Connect Cam to Power Source
Viosport Battery Holder
Viosport Rechargeable Battery Pack
Support: Customer Service
Phone
Postal Mail
Welcome: Cam Care & Safety Precautions
Viosport 12v Rechargeable Battery Pack
Viosport Helmet Cam
How To: Focus the Lens
ON/O
FF
Viosport RCA A/V Cable
Power Source
Helmet Cam

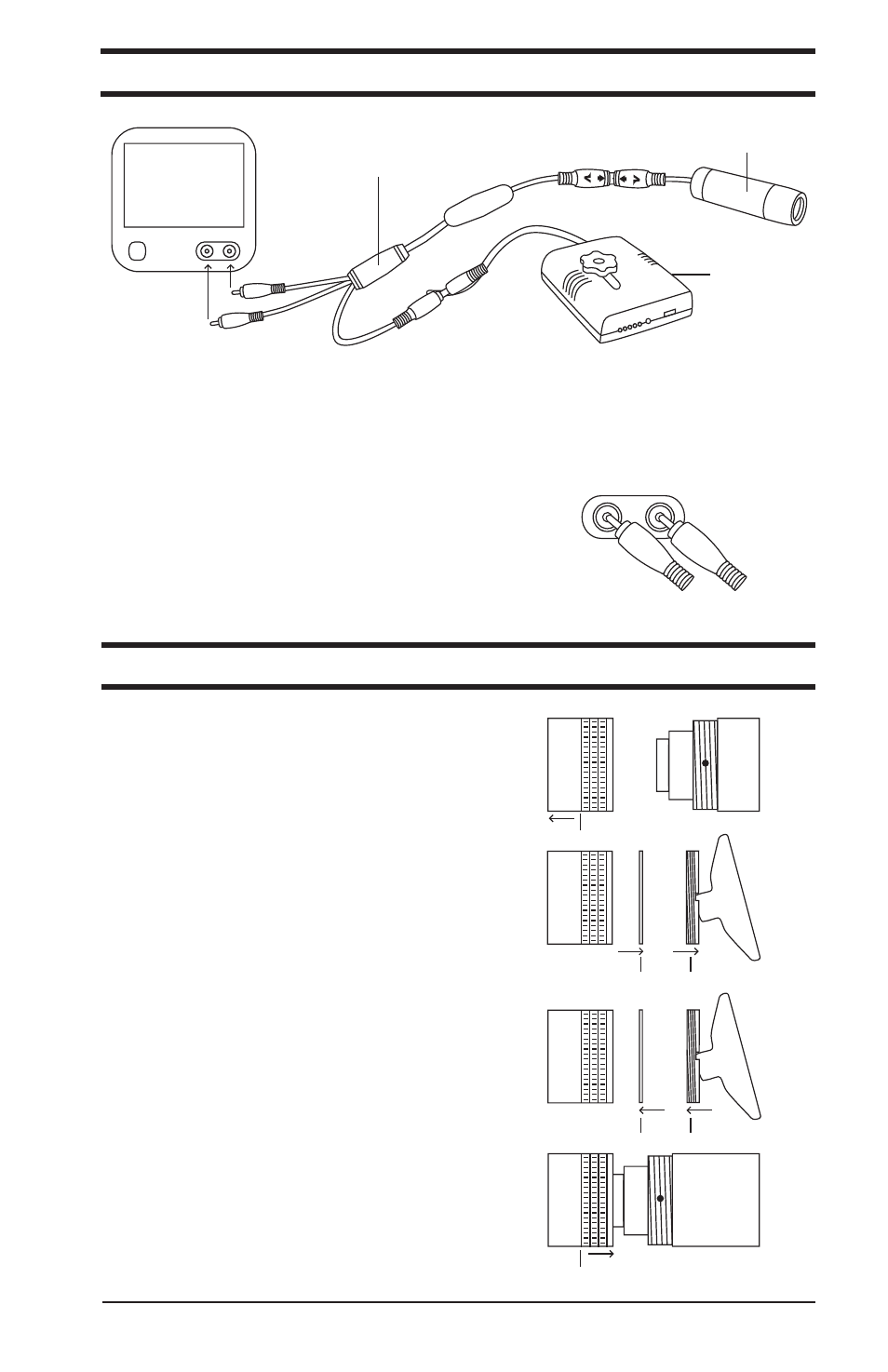

1. To connect your cam to your TV you must use the Viosport RCA A/V cable (shown above).
* Your television must accept RCA input or be connected to a VCR or DVD player with RCA
input in order to connect the Viosport camera system.
2. Plug the yellow (male) RCA plug into the yellow
or video input terminal on the television and plug
the white (male) RCA plug into the white, red, or
audio input terminal on the television.
VIDEO
AUDIO
YELLOW
WHITE
*Be sure to have the Television on the AUX or A/V input channel.
