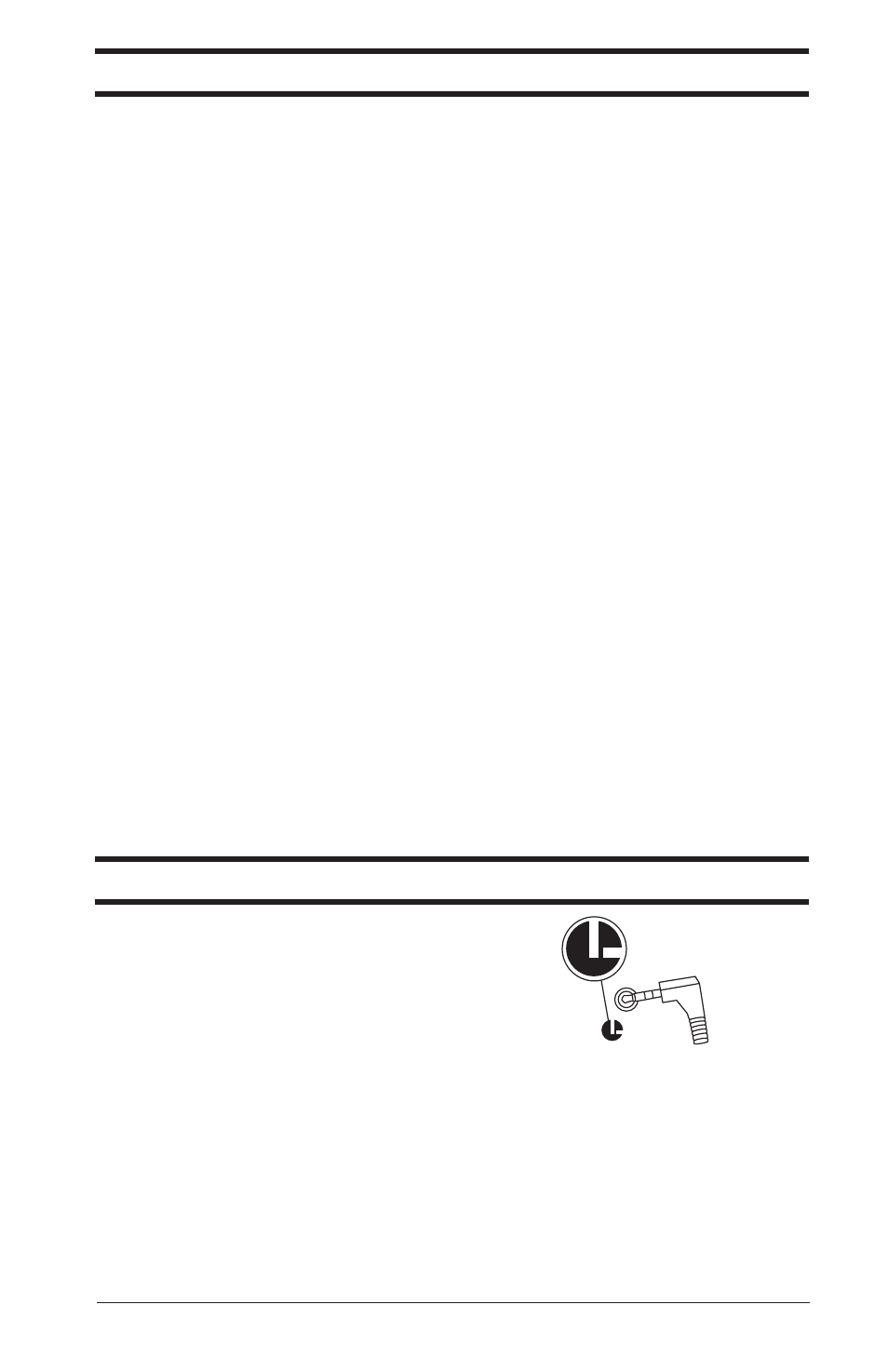

How To: Connect LANC to Recording Device
1. Locate the LANC terminal on the camcorder.
Plug the LANC remote into the LANC terminal.
2. Make sure your camcorder is in VCR, VTR, or
PLAY mode to use it in conjunction with the LANC
remote control and Viosport Adventure Cam.
13 | How To
In order to conserve power, unplug the Viosport Adventure Cam from the cigarette lighter when
not in use.
How To: Connect Cam to Power Source
How To: Connect Cam to Power Source
Use:
1. Plug the male power connector on the cigarette
lighter power cable into the female power connector
on the Viosport A/V Cable.
2. Plug the cigarette lighter power cable into a 12v
cigarette lighter.
Charging Rechargeable Battery:
1. Push the CHECK button, located next to the 5-LED
fuel gauge. The number of lit LED lights indicates the
remaining power level in the battery from Low (one
LED) to High (five LED’s).
2. Turn the power switch to the “OFF” position.
3. Insert the output plug of the cigarette lighter power
cable into the charging unit and plug into a cigarette
lighter outlet. The GREEN LED indicator on the
charging unit will light up to indicate it is powered
properly and ready for use.
4. Plug the cable of charging unit into the socket of the
battery. The LED indicator on the charging unit will
turn RED to indicate the battery is receiving charge. As
soon as the battery is fully charged, the same LED
indicator will turn GREEN to indicate your battery is
fully charged and ready for use. Disconnect the charger
from the battery after the battery is charged.
Viosport Cigarette Lighter
Viosport Cigarette Lighter
How To: Connect Cam to Power Source
Viosport Battery Holder
Viosport Rechargeable Battery Pack
