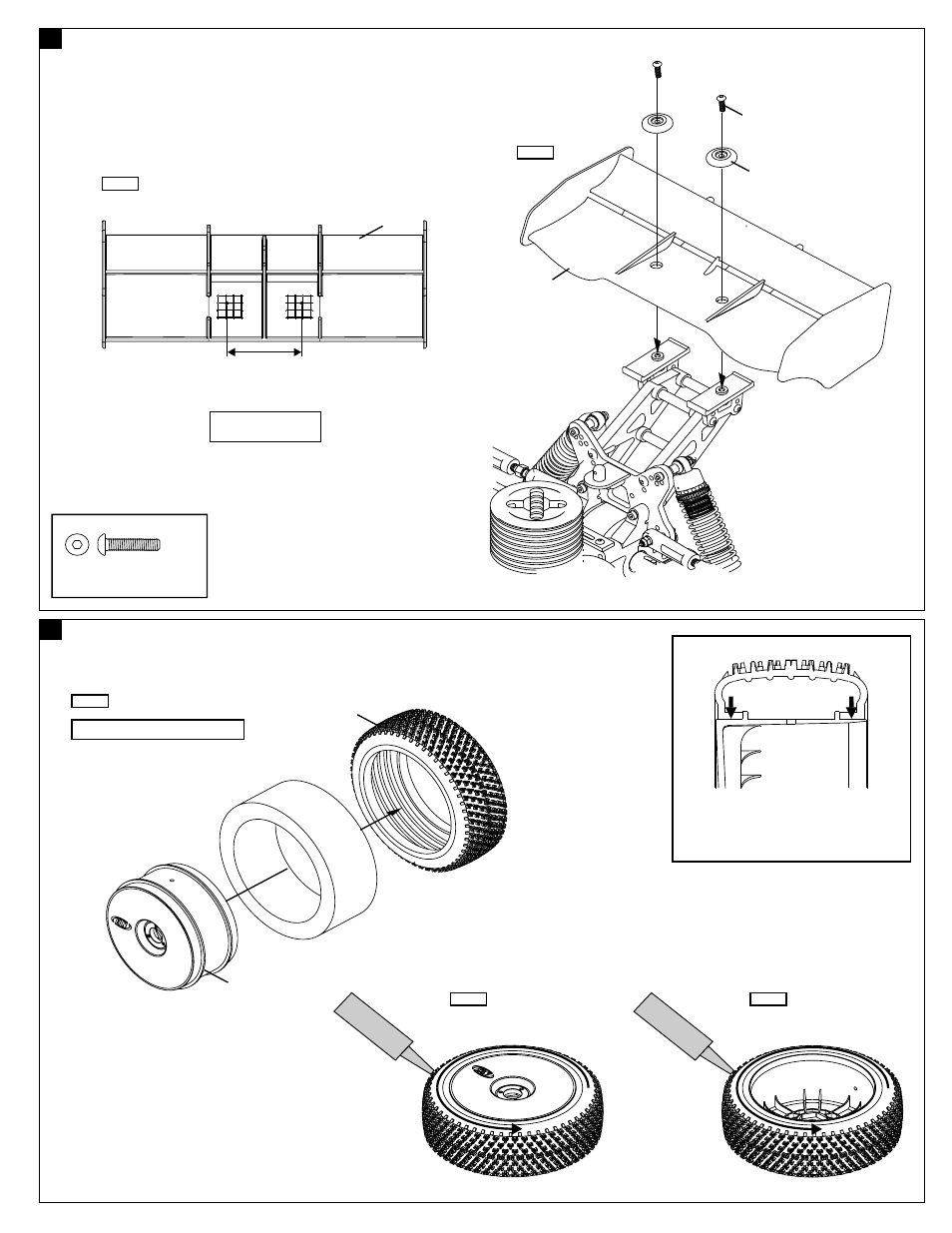

50 ASSEMBLY OF THE WING
51 ASSEMBLY OF THE TIRES AND WHEELS
51.5mm
16015
94004
3x12mm
Hex Screw
.....x2
3x12mm
30270
16015 WHITE
16016 YELLOW
16017 RED
16018 BLACK
16019 ORANGE
Check the hole spacing on the underside.
Drill two 7mm holes
for mounting.
Step 1
Step 2
86057 YELLOW
86056 WHITE
86058 ORANGE
80025
N I
S
TA
N
T
G
L
U
E
I
S
TA
N
T
N
G
L
U
E
•Use " Instant glue " and draw a line a round the
rim where it attaches the tire . When it is dry
glue the other side of the rim.
•Repeat the step and ensure the rim and tire are
fully glued.
Make four tires that are the same.
Step 1
Step 2 Step 3
Step detail
Agglutination place
