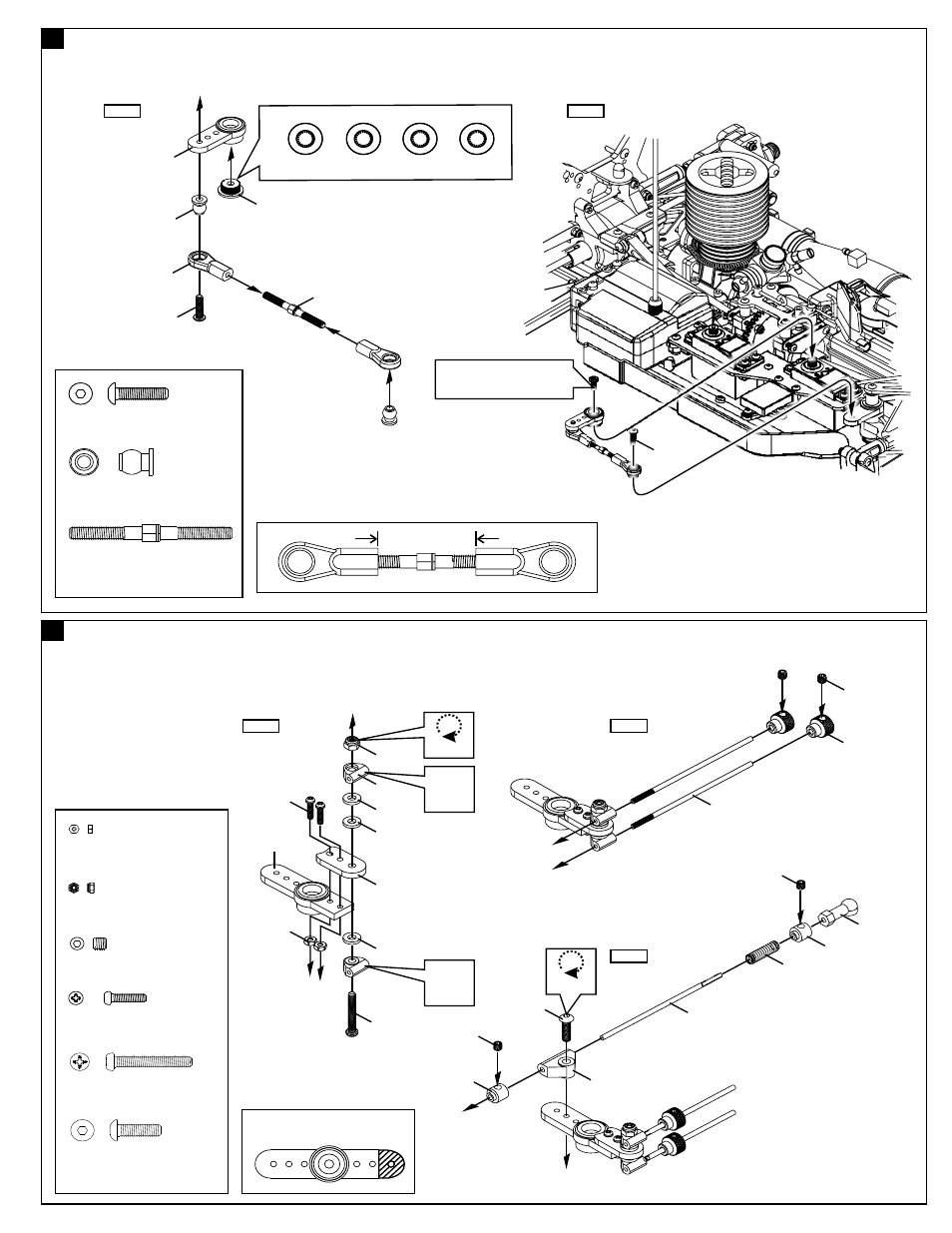

ASSEMBLY OF THE FRONT STEERING ROD

36

ADJUSTING THE ENGINE CONTROL LINKAGES

15

94004
3x12mm
Hex Screw

.....x2

30411
6mm Ball and scoket

.....x2

38280
3x36mm
Turnbuckle

.....x2

S

J

F

H

Sanwa/Airtronics

JR

Futaba

HiTech

Choose the right servo horn adapter for your servo.

Approx. 21.6mm

Step 1

Step 2

30661

30411

30401

3x12mm

30661

38280(3x36mm)

3x12mm

Use the screw provided with
your servo .

Step 1

Step 2

Step 3

2x8mm
Hex Screw

.....x2

2.6x18mm
Hex Screw

.....x1

94033
M3x3
Set Screw

.....x3

94003
3x10mm
Hex Screw

.....x2

40060
Nylon Nut

.....x1

2mm
Nut

.....x1

40060

30801

40617

30801

2.6x18mm

2x8mm

30661

2mm

40829

36140

3x3mm

30801

3x3mm

10300

30531
Spring

30172

3x10mm

3x3mm

30801

10300

Cut off the servo saver as shown.

Do Not
Over Tighten

Ensure
Free
Movement

Ensure
Free
Movement

Do Not
Over Tighten

40617

40617
