OFNA Racing Ultra LX 2 User Manual

Page 20

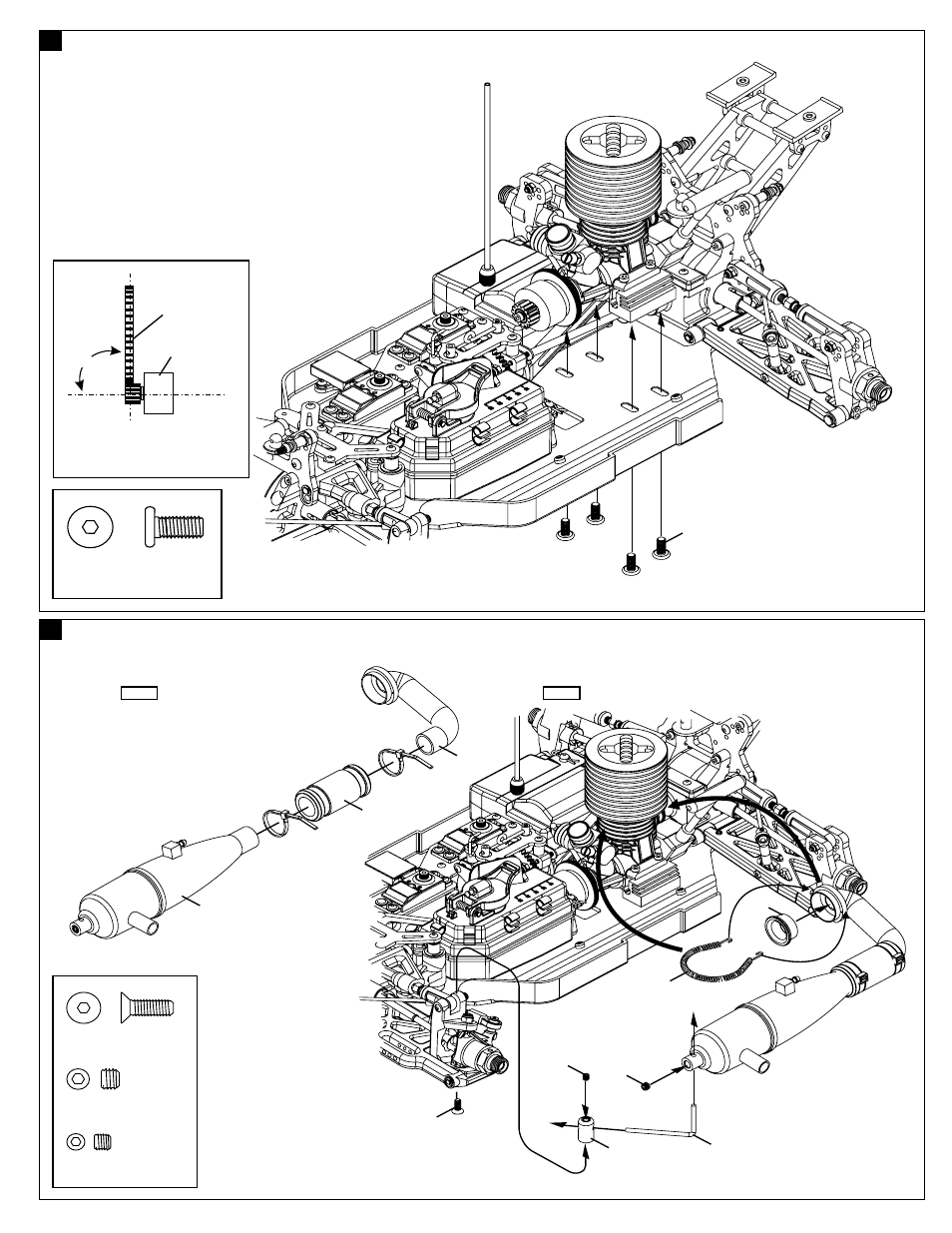

ASSEMBLY OF THE MUFFLER INTO ENGINE

ASSEMBLY OF THE ENGINE ONTO CHASSIS

10114
5mm
Engine Mount Screw

.....x4

Spur Gear

Clutch Bell

Loose or tighten 3x16mm cap screw
and 5x10mm hex screw to align spur
gear and clutch bell gear to 90 degree.

90 degree

10114

94026
4x12mm
Flat Head Hex Screw

.....x1

94034
4x4mm
Set Screw

.....x1

94036
5x4mm
Set Screw

.....x1

Step 1

Step 2

30490

10185

10060

4x12mm

41050

30687

4x4mm

5x4mm

10120

10069
