Step 3

Step 4

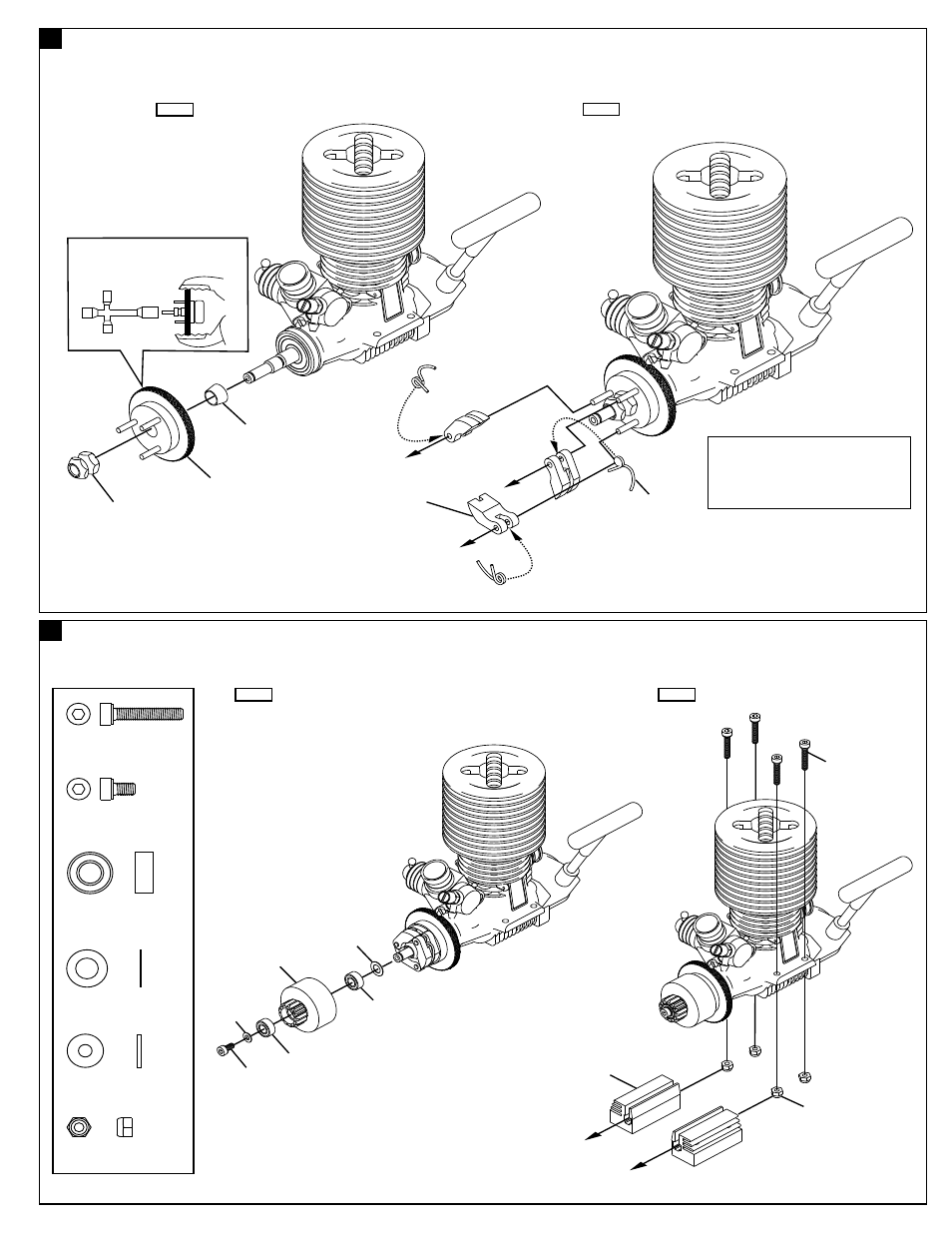

ASSEMBLY OF THE CLUTCH

10099
3x5mm
Cap Screw

.....x1

10098
5x9x0.3mm
Washer

.....x1

ASSEMBLY OF THE CLUTCH

3x5mm

3x8mm

34110

10400

5x9x0.3mm

10098
3x8x0.8mm
Washer

.....x1

30481
3x16mm
Cap Screw

.....x4

40674

3mm

3x16mm

94041
3mm Nylon Nut

.....x4

34110
5x10x4mm
Ballbearings

.....x2

Step 1

Step 2

38313

10098

10040

10102

10010

*Place the clutch shoes with the clutch
springs over the 3 pins of the flywheel.
*Using a phillips screw driver or needle
nose pliers and bend the small end lf
the clutch spring behind the pilot shaft
10091 or 10098 than press down.

*Fit the flywheel using a pair of the
plIer and cross wrench.
