Page 23: Extremely important

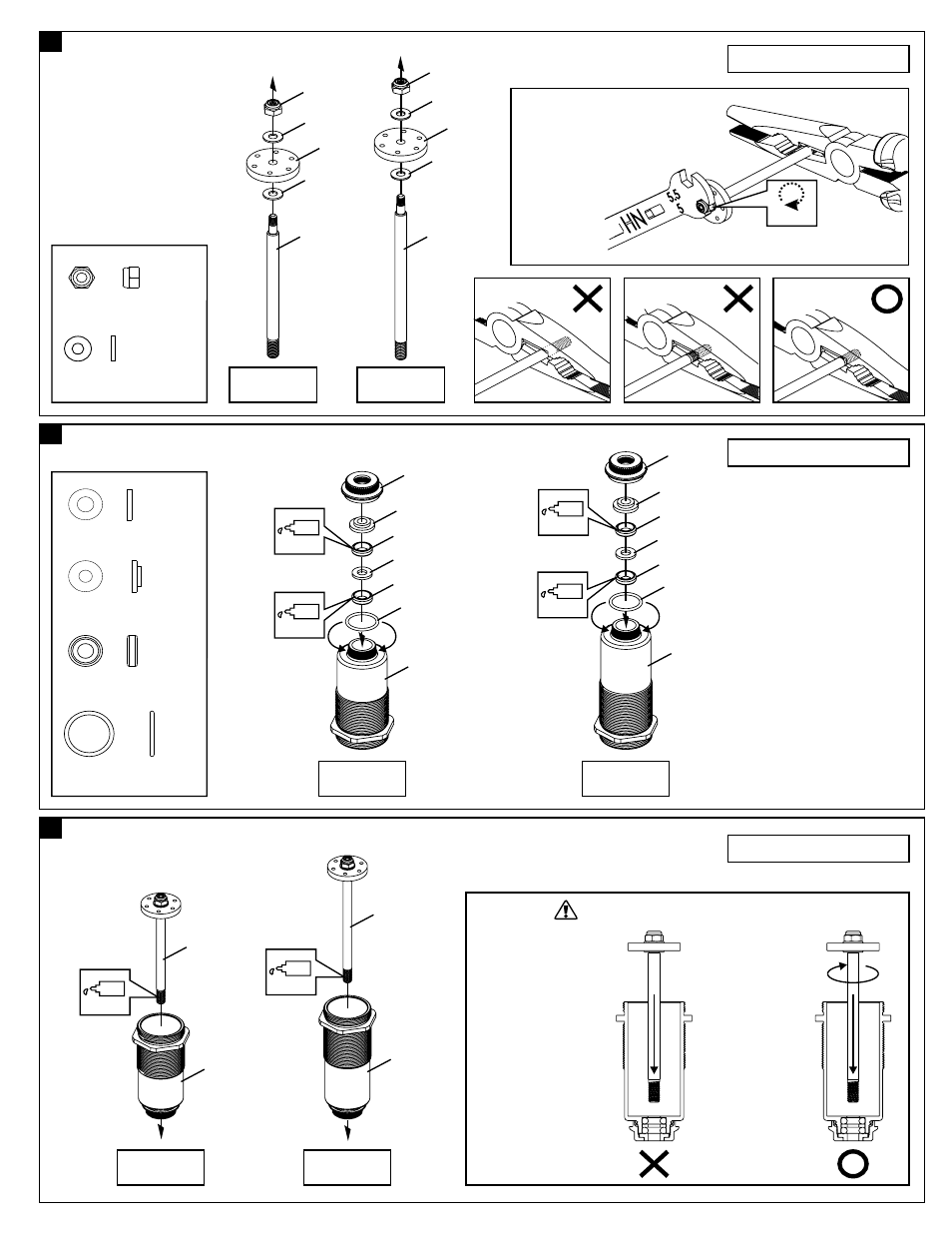

ASSEMBLY OF THE SHOCKS

Assemble both left and right sides.

40113
P10 O-RING

.....x4

41012
3.5mm O-Ring

.....x8

REAR SHOCK

FRONT SHOCK

41012
2mm Washer

.....x4

41012
1mm Washer

.....x4

41003 (SHORT)

41004 (LONG)

40113

41012

41012(1mm)

41012

41012(2mm)

41008

41012(2mm)

41012

41012(1mm)

41012

40113

Oil

Assemble both left and right sides.

ASSEMBLY OF THE SHOCKS

REAR SHOCK

FRONT SHOCK

Step detail

Use tools to tighten as shown.

94059
2.6x6x0.5mm
Washer

.....x4

40060

2.6x6x0.5mm

41011

40054 (SHORT)

40055 (LONG)

2.6x6x0.5mm

41011

.....x2

40060
2.6mm
Nylon Nut

Do Not

Over Tighten

•Hold the shock rod at its thread
with side needle nosed pliers.

•Be careful not to damage the shock
rod.

ASSEMBLY OF THE SHOCKS

Assemble both left and right sides.

REAR SHOCK

FRONT SHOCK

Oil

(LONG)

(SHORT)

(LONG)

Do not push the shock
shaft straight down;
O-ring can be damaged.

Slowly twist the shock
shaft down to the
bottom.

EXTREMELY IMPORTANT

Oil
