Page 8

4x4mm
Set Screw

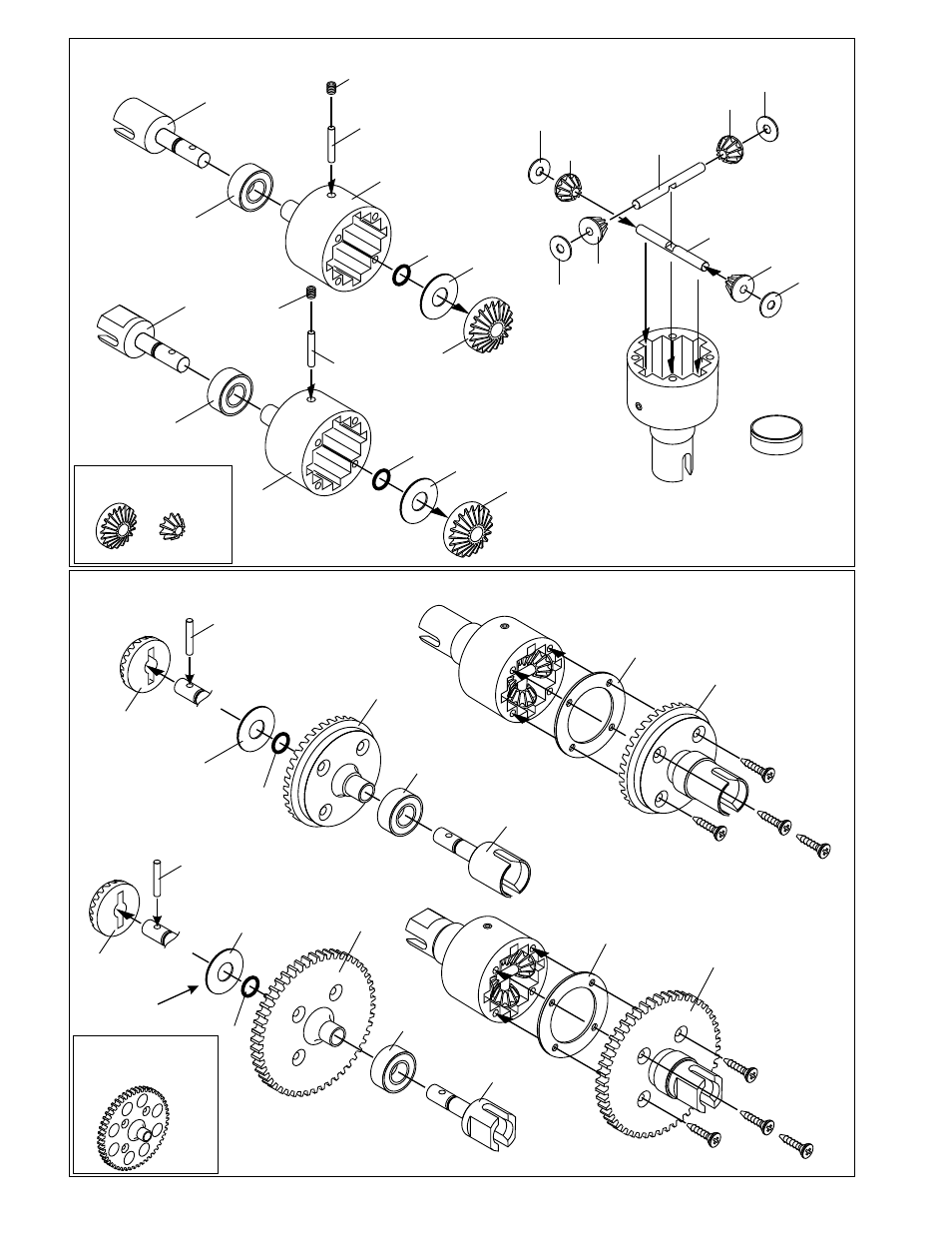

ASSEMBLY OF THE DIFFERENTIAL CASE

40006
Cap Joint

36053
8x16mm
Ball bearing

40010
2.5x13.8mm
Pin

40009
P6 O-Ring

40009
P6
O-Ring

40012
6x15mm
Washer

40003
Diff. Case

40005
Break
Cap Joint

(Builds one differential for Center)

40004
Diff. Gear
(Large)

40004
Diff. Gear
(Small)

(Builds one differential for Center)

40002
Large
Bevel Gear

40011
Diff. Gasket

3x12mm
Flat Head
Tapping Screw

40001
47T
Spur Gear

*Use 6x15mm washer
to adjust the gear mesh.

Note: It is very important to add
or remove the #30779 washer if
the gear mesh is too tight or
too lose.

( Builds two differentials for front and rear.)

30779
4 x 10mm
washer

30773
4mm
Cross pin

* Apply diff. gear grease to the
differential during assembly.
* Fill the diff. the case to
approx 70% with grease.

ASSEMBLY OF THE DIFFERENTIAL GEAR

OPTION: #49001 HD STEEL GEAR

SET, INSIDE DIFF.

OPTION:

#49016 SPUR GEAR 50T, HD

#49030 SPUR GEAR 50T, HD SPECIAL

#49032 SPUR GEAR 51T,HD

94034

94020
