Assembly of the tires and wheels – OFNA Racing Ravager User Manual

Page 29

3 x 25mm
Cap Screw

3mm
Nylon Nut

Plastic Bushing

36610
Shock Spacer

36610
Shock Space.....2

36610
Shock Spacer.....2

3x25mm
Cap Screw

3 x 25mm
Cap Screw

3mm
Nylon Nut

Plastic
Bushing

3x25mm
Cap Screw

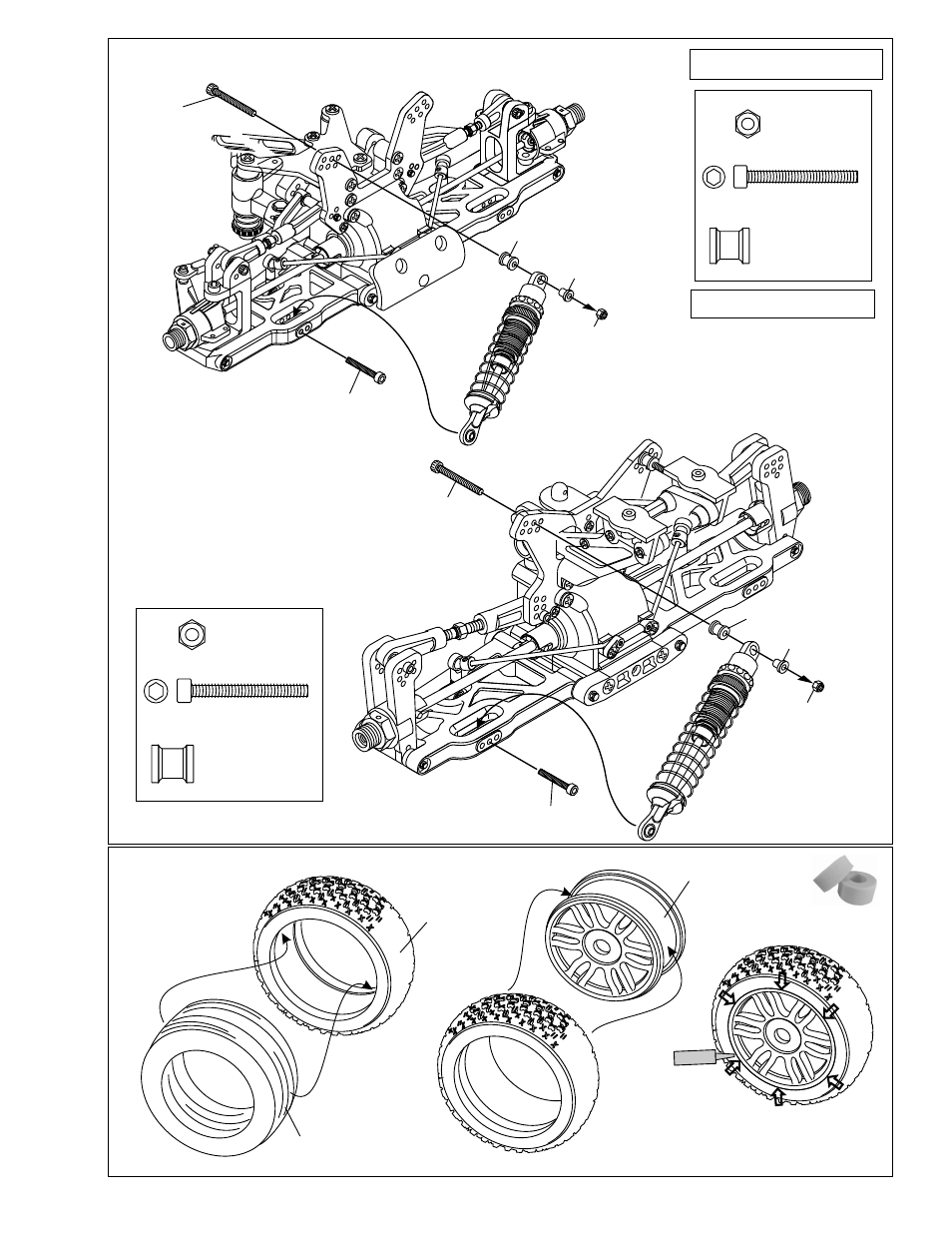

ASSEMBLY OF THE FRONT SHOCKS

ASSEMBLY OF THE REAR SHOCKS

Assembly of the right and left hand side
are the same.

M3
Nylon Nut..........2

3 X 25mm
Cap Screw..........4

* Take the plastic bushing
from the shock plastic
parts tree.

ASSEMBLY OF THE TIRES AND WHEELS

INSTANT
GLUE

*Clean wheels and tires with alcohol before gluing.
A pply instant glue into the groove of the
wheel and tire. Glue both sides of wheel!.

86062
X Equal Pin
Tire

81095
Inner Foam
donut

86035
wheel, Yel

Always use tire foam
donut when building
tires.

#81091 - Med/soft
#81092 - Med.
#81093 - Multi +
#81094 - Multi -
#81095 - Hard

90018

35313

90018

35313
