Page 19

* Take off the double sided paper
before assembly.

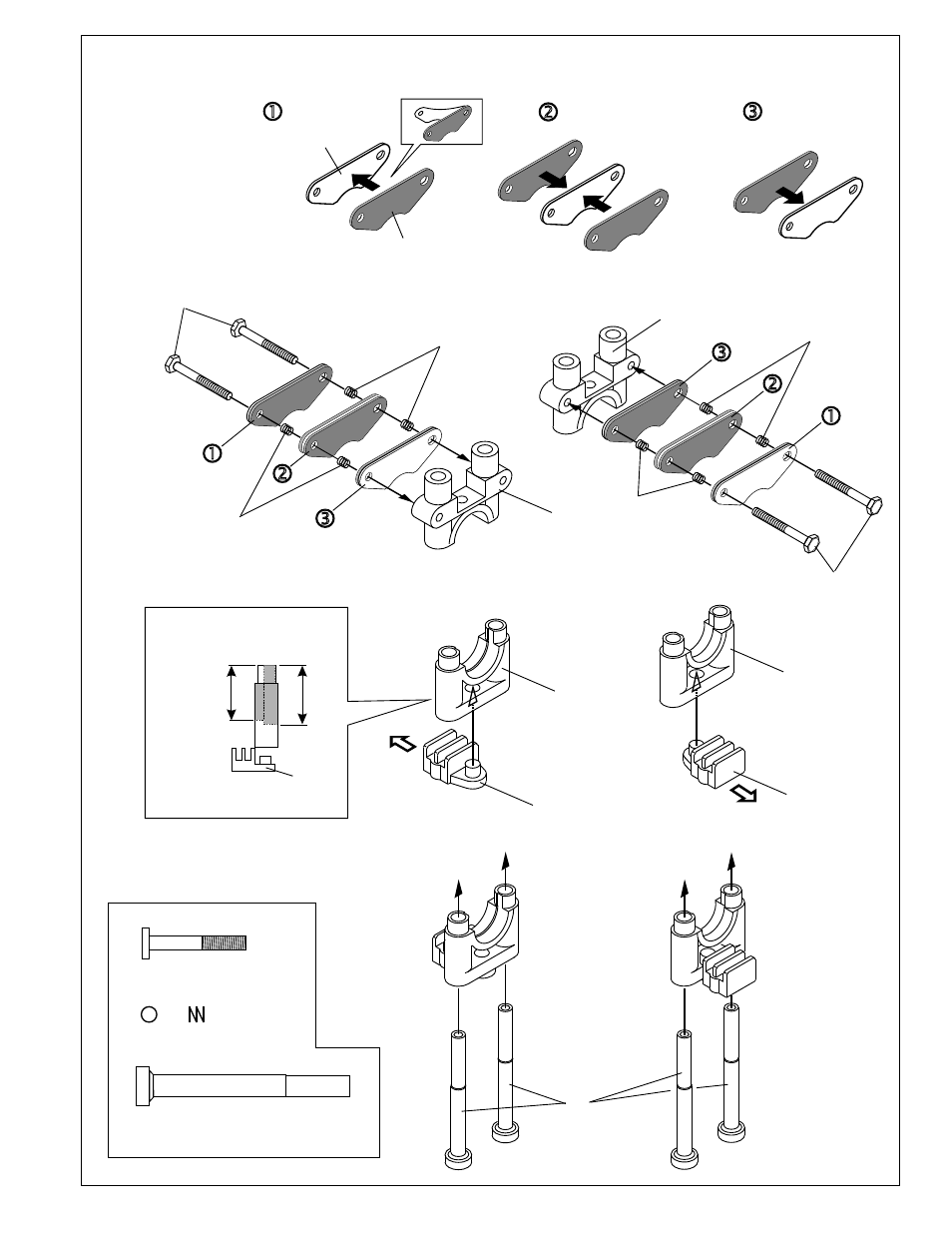

ASSEMBLY OF THE BRAKE AND SPLIT CENTER DIFF. MOUNT

* Make brake pads for each side.

36660
Brake Pad

36661
Brake Pad
linings

40044
Brake Pad
Spring

40045
Brake Pad
Adjustment Screw

40043
Center Diff. Mount
Post

40040
Break Disc
Holder

40040
Brake Disk
Holder

40040
Brake Disc
Holder

40040
Center Diff.
Mount

40046
Brake Pad Screw...........4

40044
Brake Pad
Spring.........8

40043
Center Diff. Mount
Post...........................4

Large
Hole

Small
Hole

Assembly the brake disc holder
in the direction shown.

*Towards
the front.

*Towards
the Rear.

Small hole to the
Outside.

OPTION: #49030 CNC 7075 SPLIT

CENTER DIFF MOUNT.
