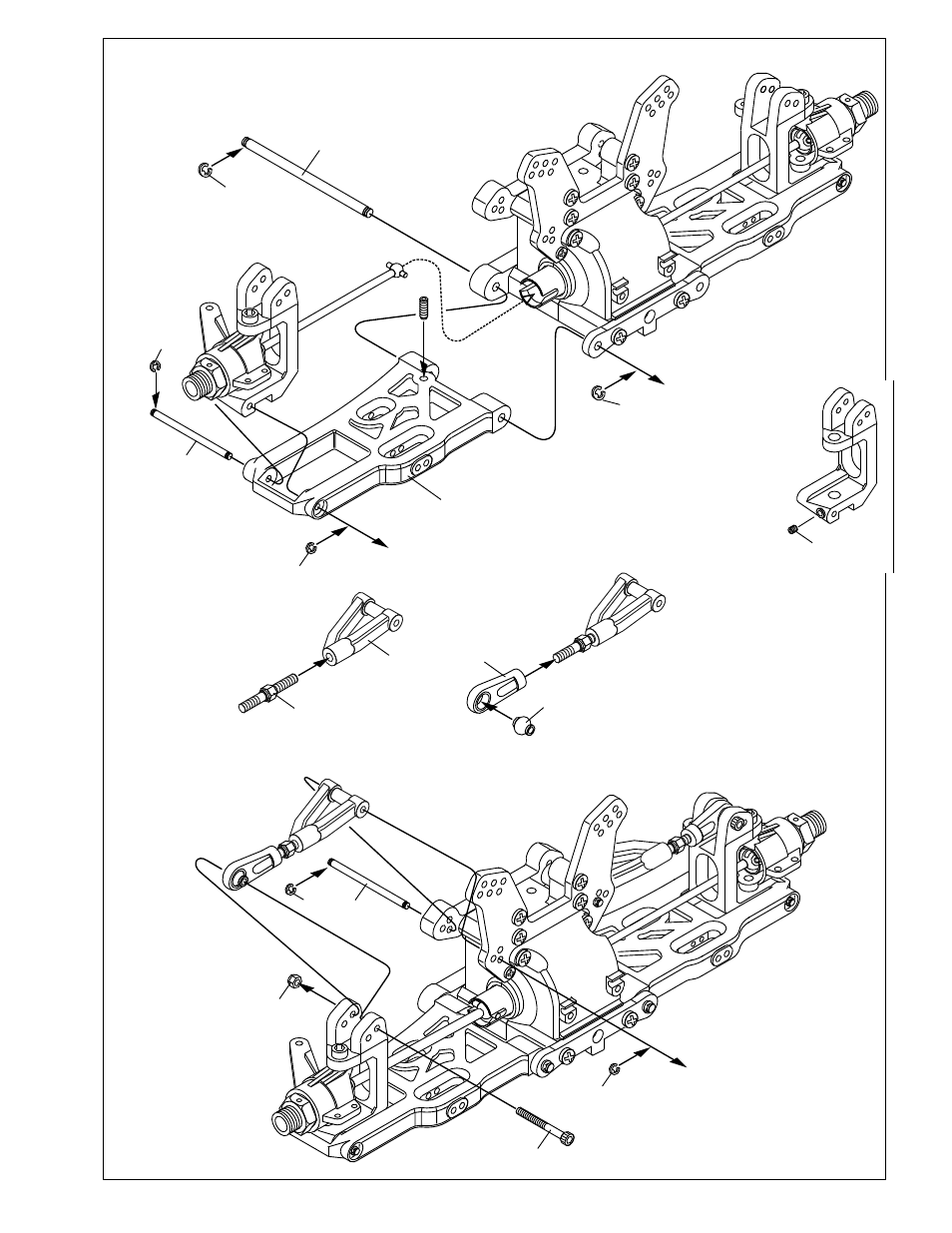

ASSEMBLY OF THE FRONT SUSPENSION ARMS
40023
Lower Arm Shaft (4mm)
3mm
E-Ring
3mm
E-Ring
2.5mm
E-Ring
2.5mm
E-Ring
2.5mm
E-Ring
2.5mm
E-Ring
4X10mm
Set Screw
36170
Arm Shaft
3mm
36170
Arm Shaft
3mm
40020
Front
Lower Arm
36860
5x40mm
Turnbuckle
40016
Front
Upper Arm
36850
7mm Ball
36690
7mm
Plastic Arm
Ball End
3x25mm
Set Screw
3mm
Nylon Nut
* A 4 x 10mm set screw is used
to adjust the ride height.
SPECIAL NOTE
3x3mm
Set Screw
Screw in the 3mm set screws
to lock in the hinge pins.
*Note: Do not over tighten..
90020
90020
90020
90020
90021
90021
94033
94041
