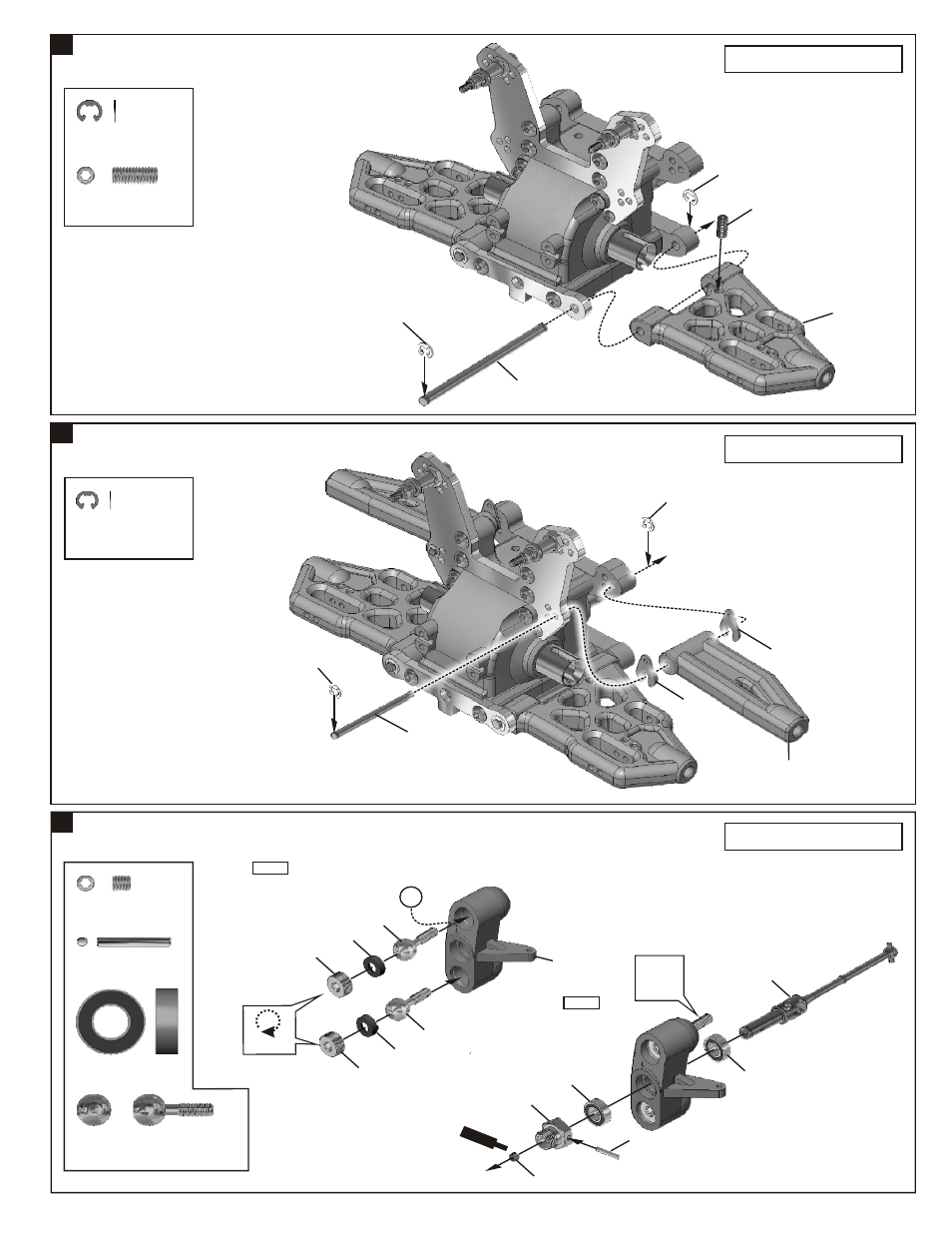

ASSEMBLY OF THE FRONT LOWER ARMS

ASSEMBLY OF THE FRONT UPPER ARMS

ASSEMBLY OF THE KNUCKLE ARMS

Assembly for both right and left side.

3

Step 1

Step 2

36053

Do Not
Over Thigten

Scre

w

Cem

ent

Ensure
Free
Movement

.....x4

2.5mm

36170

2.5mm

34053

L

36901

36904

36905

36903

36904

36905

36903

30656

36055

36053

4x4mm

.....x2

94034
4x4mm
Set Screw

36055
2.5x16.8mm Pin

.....x2

36053
8x16mm Ball Bearing

.....x4

36903
14mm Steering Ball

.....x4

90020
2.5mm

E-Ring

90021
3mm
E-Ring

.....x4

Assembly for both right and left side.

Assembly for both right and left side.

40094

40202

4x10mm

36870
4x10mm
Set Screw

.....x2

3mm

3mm

40524

40094

40094

* L for left handside.
