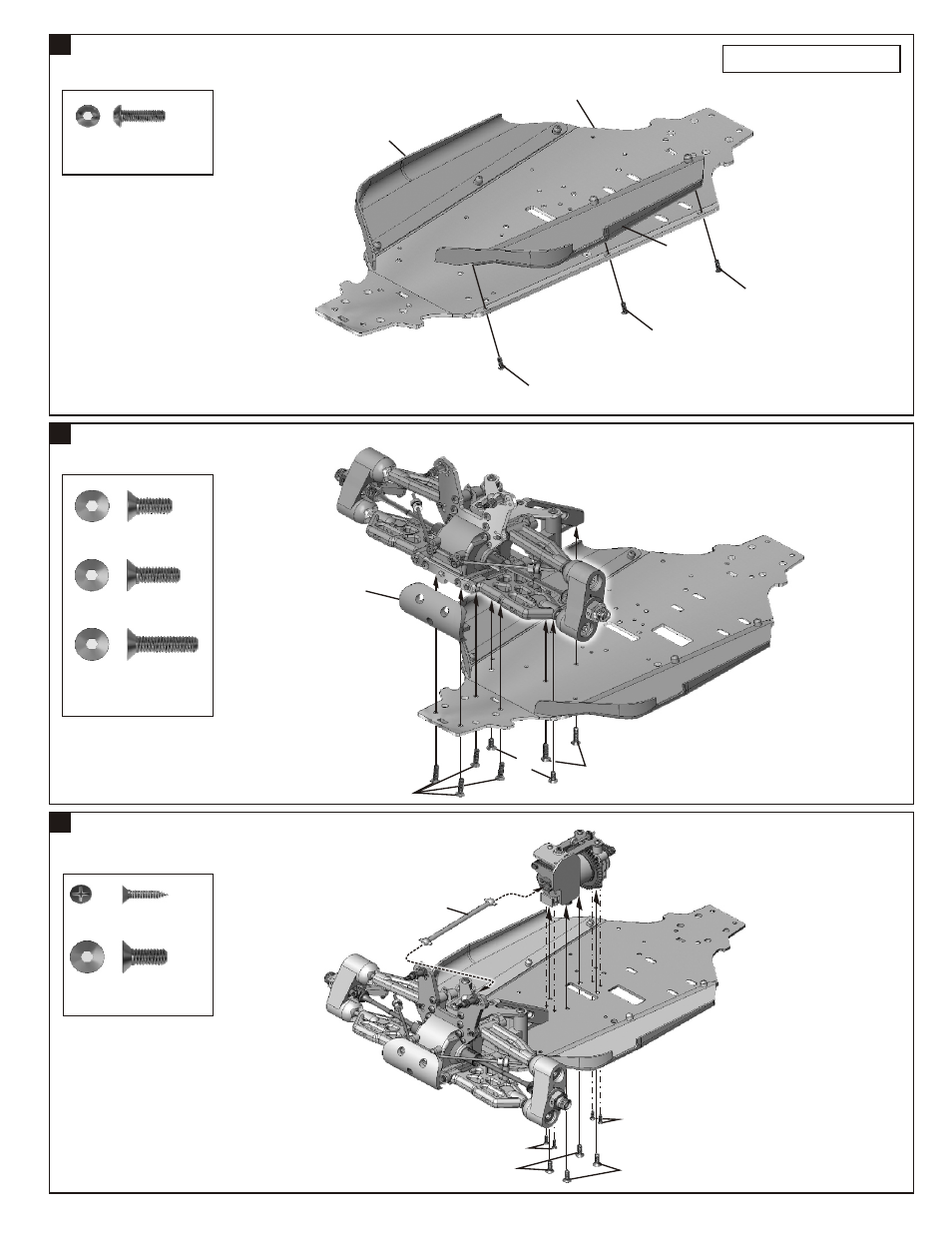

ASSEMBLY OF THE FRONT GEAR CASE ONTO CHASSIS

4x16mm

94026
4x12mm
Flat Head Hex Screw

.....x2

4x12mm

94027
4x16mm
Flat Head Hex Screw

.....x4

4x10mm

ASSEMBLY OF THE CENTER DIFF. ONTO CHASSIS

40028

4x10mm

4x10mm

*Insert the drive shaft into
the cap joint before assembly
the center diff. onto chassis.

94046
2.6x10mm
Tapping Screw

.....x4

2.6x10mm

2.6x10mm

94039
4x10mm
Flat Head Screw

.....x4

31

ASSEMBL OF THE STONE GUARD

Y

40064

40046

3x10mm

3x10mm

3x10mm

Assembly for both right and left side.

94003
3x10mm
Hex Screw

.....x6

40013

94039
4x10mm
Flat Head Hex Screw

.....x2
