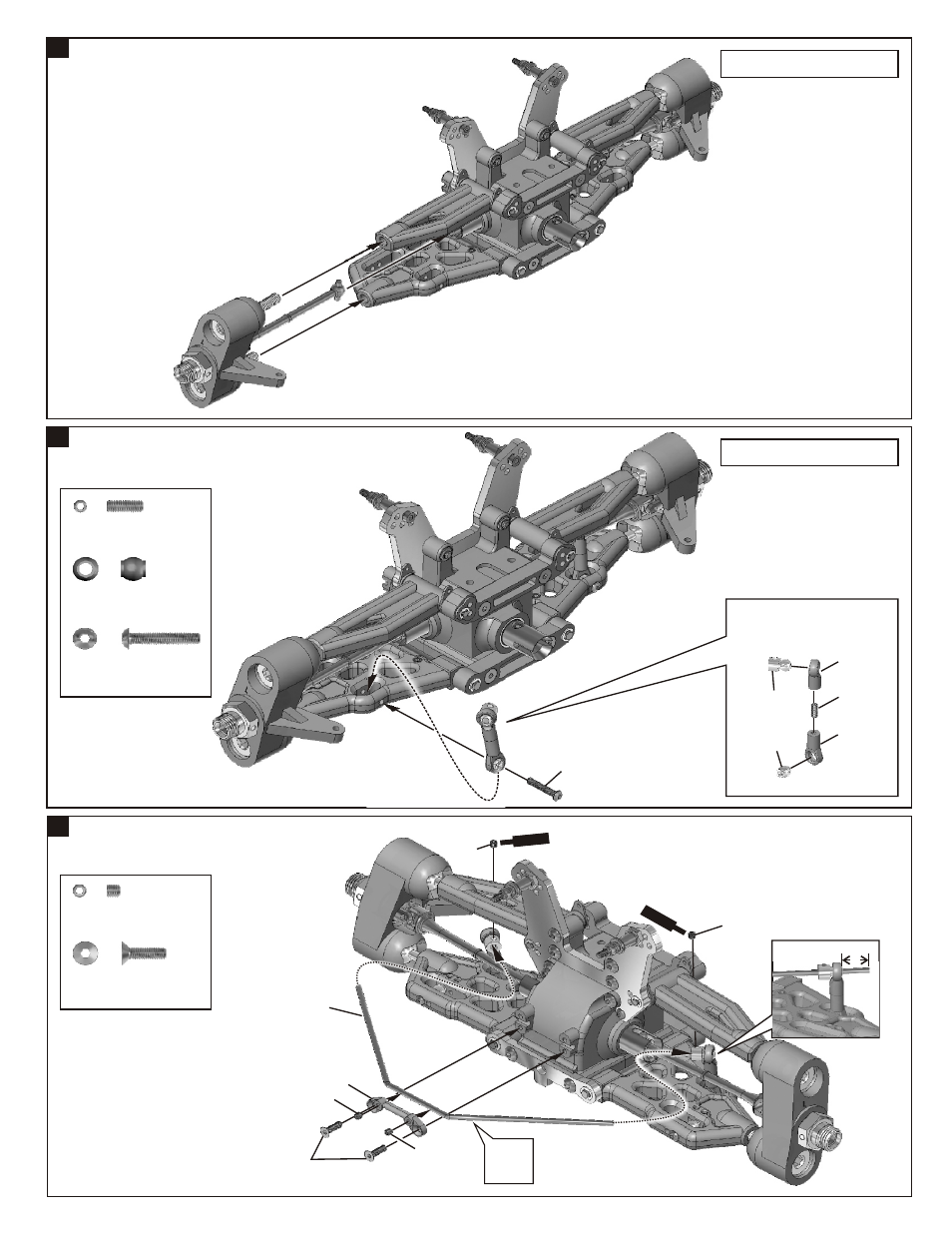

ASSEMBLY OF THE FRONT SUSPENSION ARMS

Assembly for both right and left side.

ASSEMBLY OF THE FRONT STABILIZER

Assembly for both right and left side.

ASSEMBLY OF THE FRONT STABILIZER

4

3x16mm

3x10mm

3x3mm

40018

3x3mm

Ensure
Free
Movement

Screw

Cement

Scr

ew

m

n

Ce

e

t

3x3mm

3x3mm

Makes two rods for left and right
hand-side.

30341

30403

3x8mm

40029

40029

94033
3x3mm
Set Screw

.....x4

94019
3x10mm
Flat Head Hex Screw

.....x2

.....x2

30403
6mm Ball

94005
3x16mm
Hex Screw

.....x2

94035
3x8mm
Set Screw

.....x2

40019

8mm

* Insert the drive shaft
before assembling the
knuckle arm.
