48

49

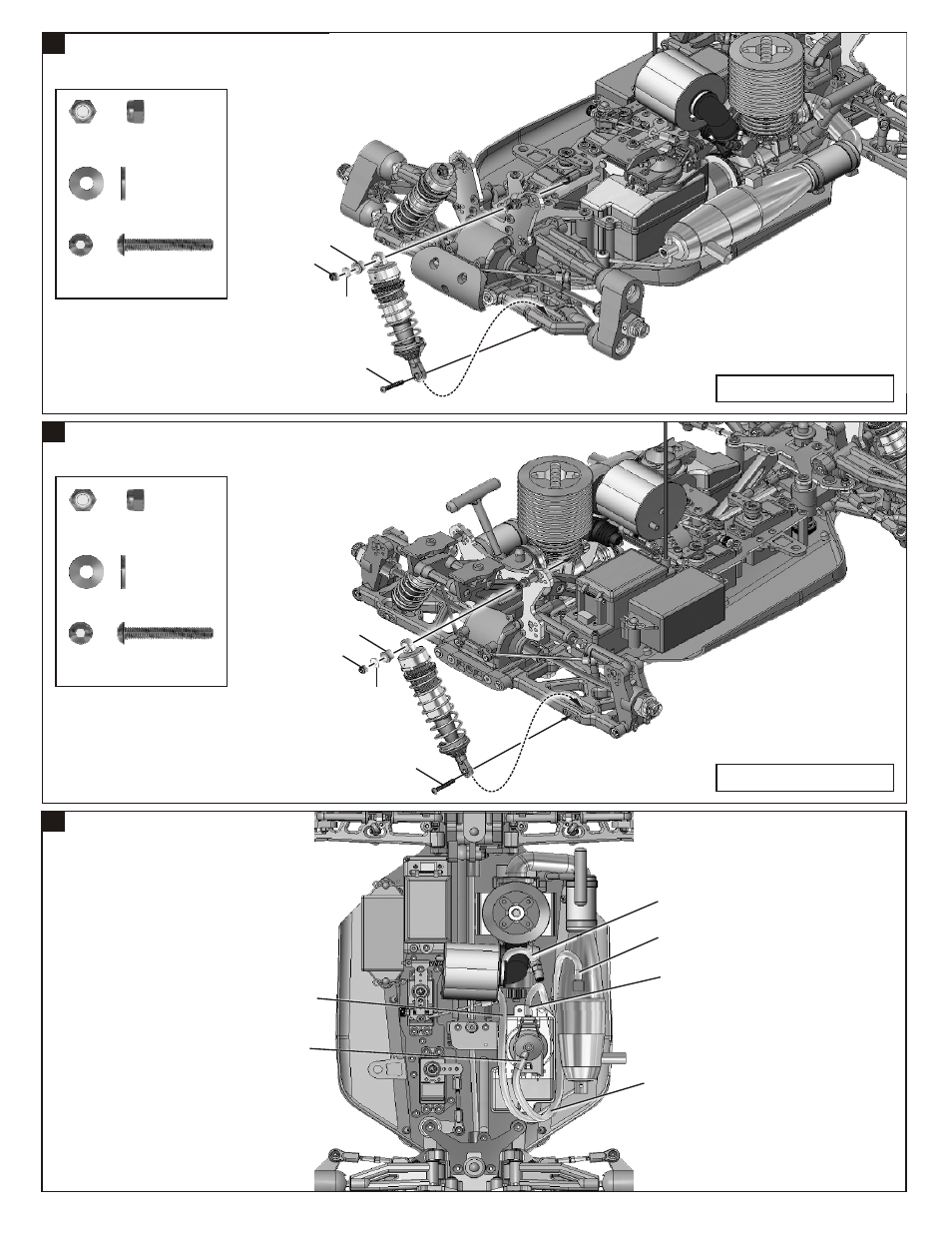

ASSEMBLY OF THE FRONT SHOCK ABSORBER

ASSEMBLY OF THE REAR SHOCK ABSORBER

17

Assembly for both right and left side.

Assembly for both right and left side.

3x20mm

94007
3x20mm
Hex Screw

.....x2

.....x2

94040
3x8mm Washer

94041
3mm
Nylon Nut

.....x2

3x20mm

3mm

3x8mm

3mm

94007
3x20mm
Hex Screw

.....x2

.....x2

94040
3x8mm Washer

94041
3mm
Nylon Nut

.....x2

50

ASSEMBLY OF THE FUEL TUBE

Connect to carbulater.

Connect to fuel t
ank nipple.

Connect to pressure nipple.

10177

10177

Connect to fuel nipple.

40643

3x8mm

40643
