OFNA Racing Mutilator Pro RTR 32 - Manual (Page 20)

40050
4X4mm 5X5mm
4X10mm
40051 10114
3X12mm
30403
10759
38281
30661
30403
30401
3X12mm
*Use the screw
provided with
your servo.

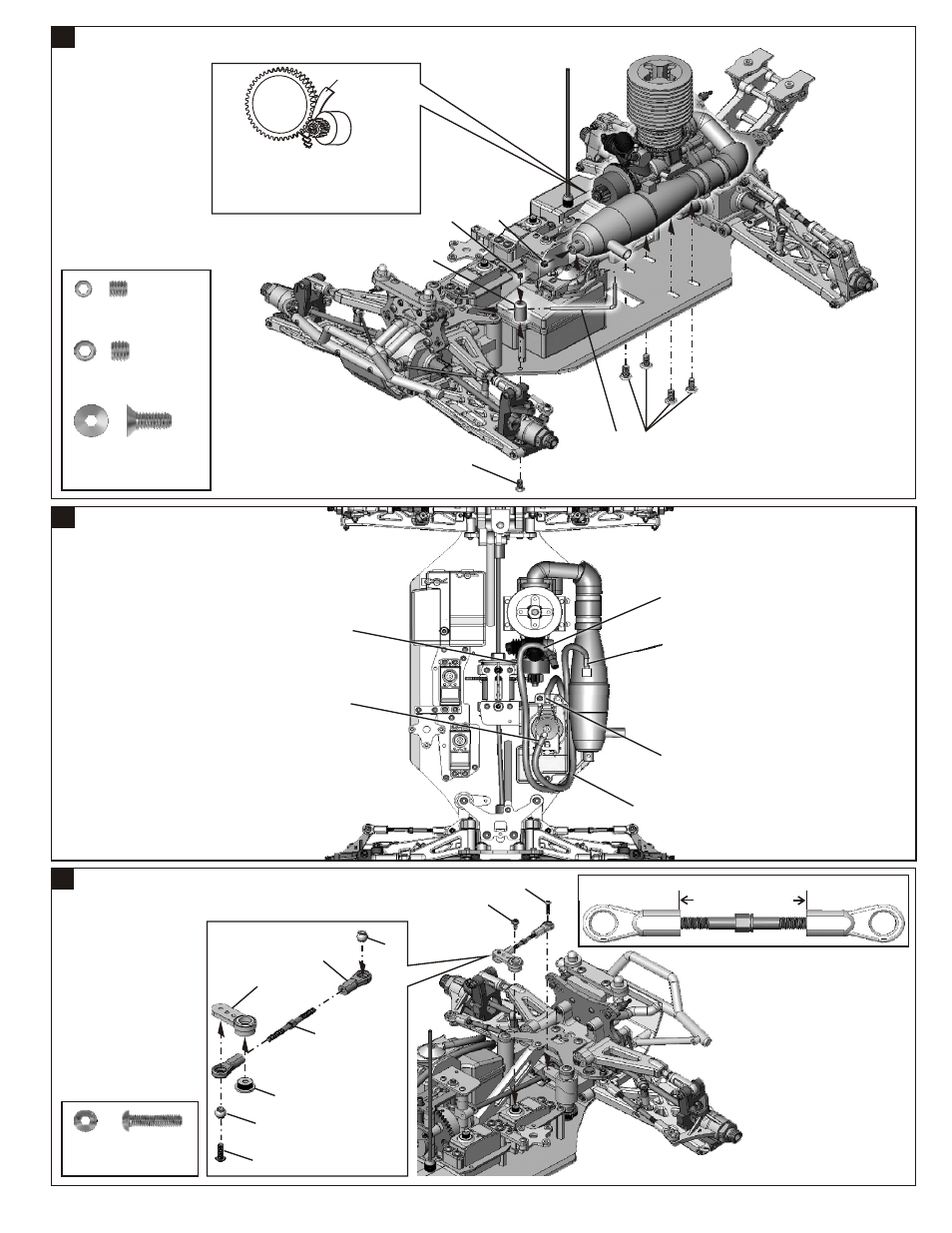

34 ASSEMBL OF THE ENGINE ONTO CHASSIS Y
........X1 94026
4X12mm
Flat Head
Hex Screw
........X1 94036
5X5mm
Set Screw
........X1 94034
4X4mm
Set Screw
35 ASSEMBL OF THE FUEL TUBE Y
36 ASSEMBL OF THE STEERING ROD Y
........X2 94004
3X12mm
Hex Screw
*Use note book paper to set gear backlash
between spur gear and clutch bell gear,
applying pressure while retightening the
engine.
*If the space is not correct the spur gear
will be damaged.
Note book Paper.
15
Connect to carbulater.
Connect to fuel nipple.
Connect to fuel tank nipple.
Connect to pressure nipple.
10177
10177
*Approx. 28.5mm
1:1
