Page 17
4X16mm
4X12mm
4X16mm
4X16mm
3X12mm
40133
26

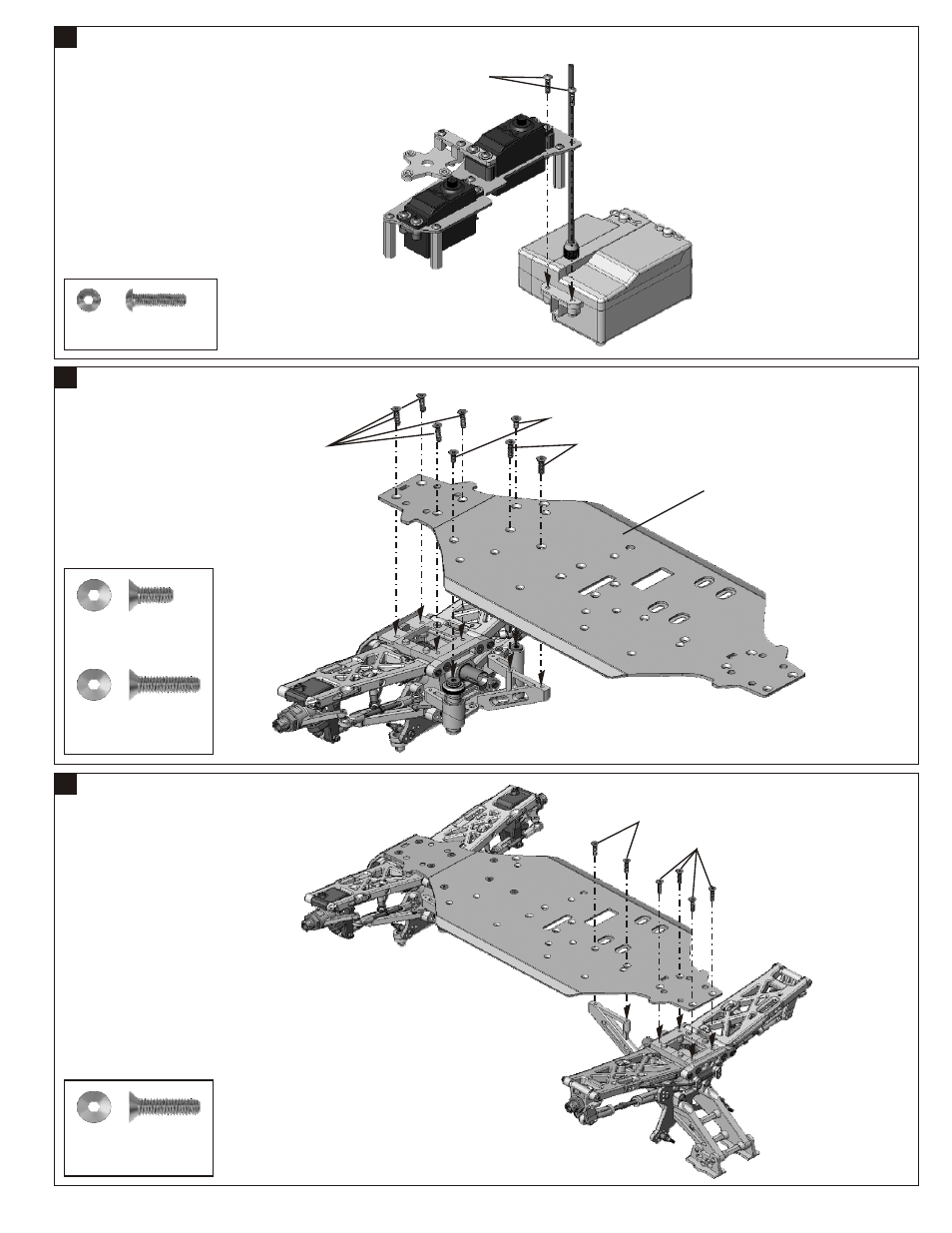

ASSEMBL OF THE RADIO TRAY INTO RECEIVER BOX
Y
........X2
94004
3X12mm
Hex Screw
27
ASSEMBL OF THE FRONT GEAR CASE ONTO CHASSIS
Y
........X2
94026
4X12mm
Flat Head
Hex Screw
........X6
94027
4X16mm
Flat Head
Hex Screw
28
ASSEMBL OF THE REAR GEAR CASE ONTO CHASSIS
Y
........X6
94027
4X16mm
Flat Head
Hex Screw
4X16mm
12
