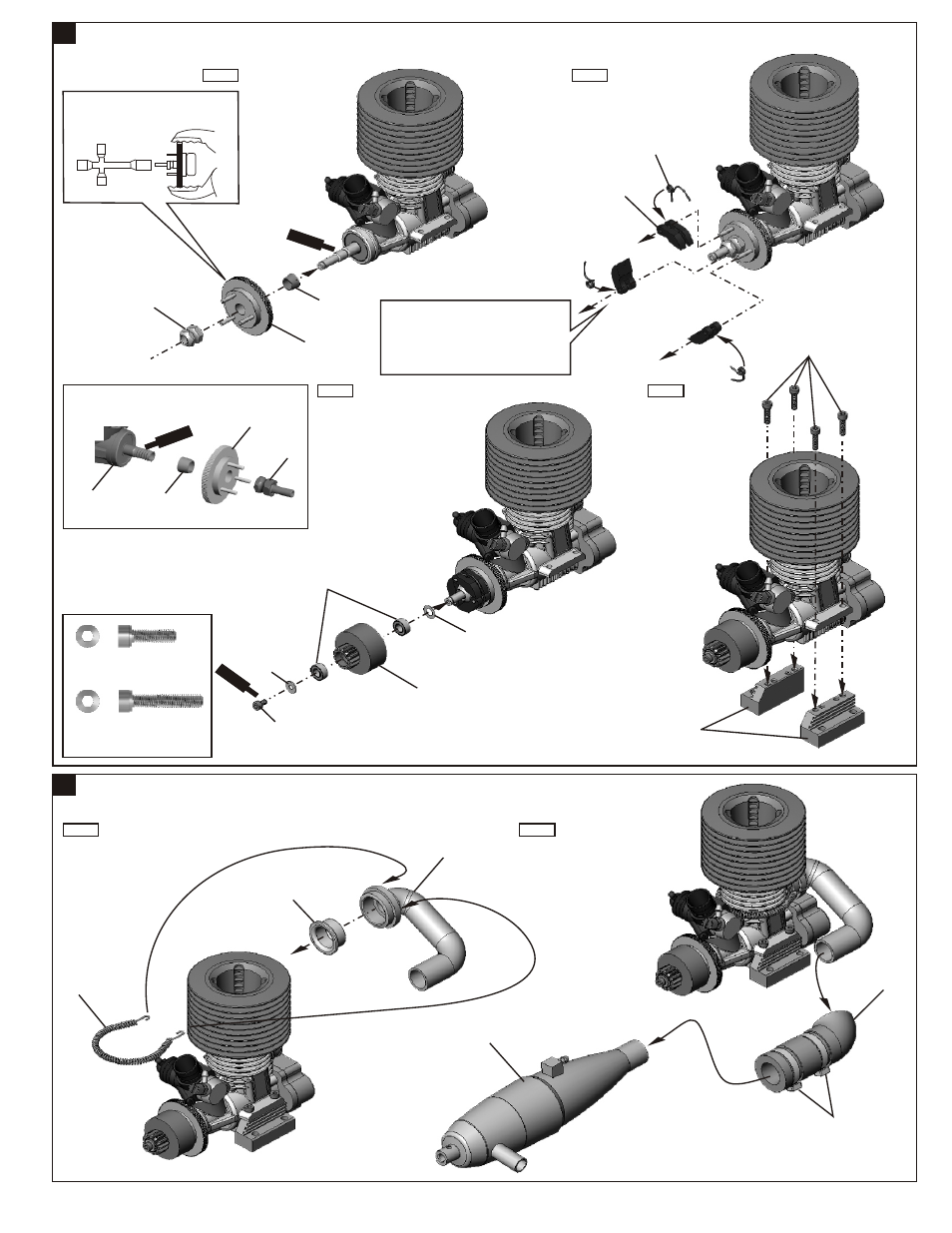

ASSEMBL OF THE CLUTCH AND ENGINE MOUNT
Y
........X1
3X10mm
Cap Screw
........X4
3X16mm
Cap Screw
33
ASSEMBL OF THE MANIFOLD AND MUFFLER
Y
*Fit the flywheel using a pair of the
plIer and cross wrench.
*Place the clutch shoes with the clutch
springs over the 3 pins of the flywheel.
*Using a phillips screw driver or needle
nose pliers and bend the small end lf
the clutch spring behind the pilot shaft
10102 than press down.
r w
Sc e
Cem
ent
S
rew
c
Ce
m
en
t
Sc
ew
r
Ce
me
nt
14
Step 3
Step 4
Step 1
Step 2
Step 1
Step 2
31992
10185
ZIP TIES
