Set-up guide, Mounting the body, For a stick pack battery – OFNA Racing 9.5 Violator User Manual

Page 30: Ride height adjustment

Text mode
Original mode

31149
Body Clips

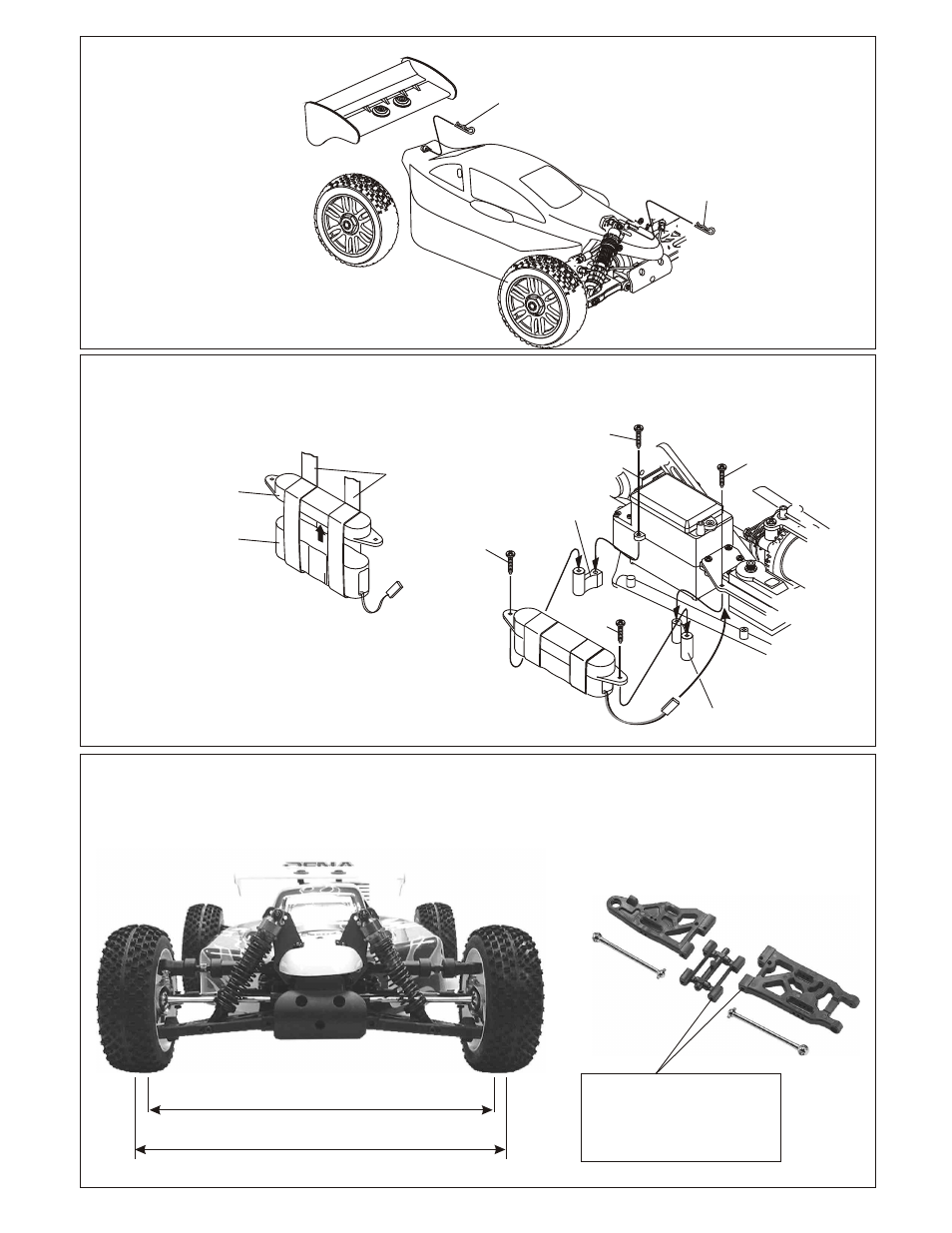

MOUNTING THE BODY

3x12mm
Screw

FOR A STICK PACK BATTERY

40048
Stick Pack
Battery Holder
(5 Cell)

Stick Pack
Battery(5 Cell)
( Not Included.)

* Use tape to secure the battery.

* Insert battery wire into
receiver and connect to
the switch.

Tape

40048
Battery Holder
Mount

Adjustable width, lower arms.
Simply cut outside 330mm pin
holes.

310mm

330mm

CHANGING WIDTH FROM 330mm TO ROAR LEGAL 310mm

Soft

Firm

Soft

Firm

SET-UP GUIDE

RIDE HEIGHT ADJUSTMENT

2mm
Hex Screw

Use a 2mm hex screw to adjust the ride height.
Screwing in the 4x10mm set screw....Ride height becomes lower.
Uncsrewing the 4x10mm set screw..Ride height becomes higher.

1 2

Leave as much plastic as possible
