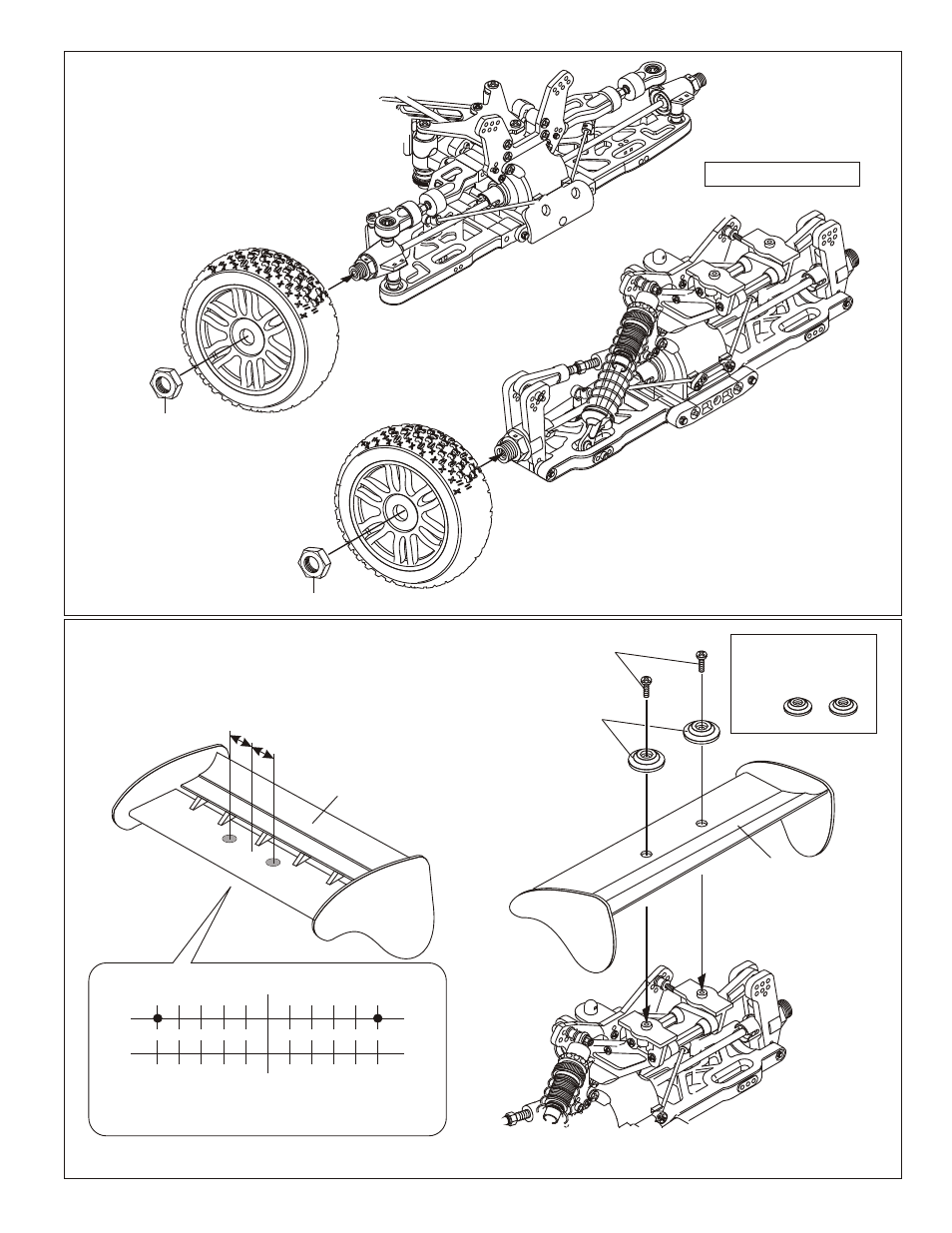

ASSEMBLY OF THE TIRES AND WHEELS
INSTANT
GLUE
* Apply instant glue into
the groove of the wheel.
86062
X Equal Pin
Tire
81095
Inner Sponge
86035
wheel
25mm
25mm
0
5 10 15 20 25 5 10 15 20 25
ASSEMBLY OF THE WING
* Drill two 7mm holes
for mounting.
3x12mm
Screw
40027
Countersunk
Plastic Washer
*Upper Deck Of
The Wing.
40084
Wing, Yellow
40083 - Wing White
40084 - Wing Yellow
40085 - Wing Red
40086 - Wing Lime
40087 - Wing White
86044 - Red
86045 - White
86046 - Lime
86047 - Yellow
86048 - Black
86049 - Chrome
17mm Dual Spoke,
2 pairs (4 wheels) per Bag.
* Check the hole spacing on the underside.
OPTION:
49045
CNC Alum. Wing Washer
Orange, 2 pcs.
3 x 20mm
Cap Screw
3mm
Nylon Nut
Plastic
Bushing
36610
Shock Upper Fixing
36610
Shock Upper Fixing
36610
Shock Support.....2
3x25mm
Cap Screw
3 x 20mm
Cap Screw
3mm
Nylon Nut
Plastic
Bushing
3x25mm
Cap Screw
ASSEMBLY OF THE FRONT SHOCK ABSORBER
ASSEMBLY OF THE REAR SHOCK ABSORBER
Assembly of the right and left hand side
are the same.
Assembly of the right and left hand side
are the same.
35313
M3
Nylon Nut..........2
30702
3 x 20mm
Cap Screw..........2
90018
3 X 25mm
Cap Screw..........2
* Take the plastic bushing
from the shock plastic
parts tree.
Assembly of the right and left hand side
are the same.
30051
Wheel Nut
30051
Wheel Nut
ASSEMBLY OF THE WHEELS ONTO
FRONT KNUCKLE ARM AND REAR HUB
