Page 15

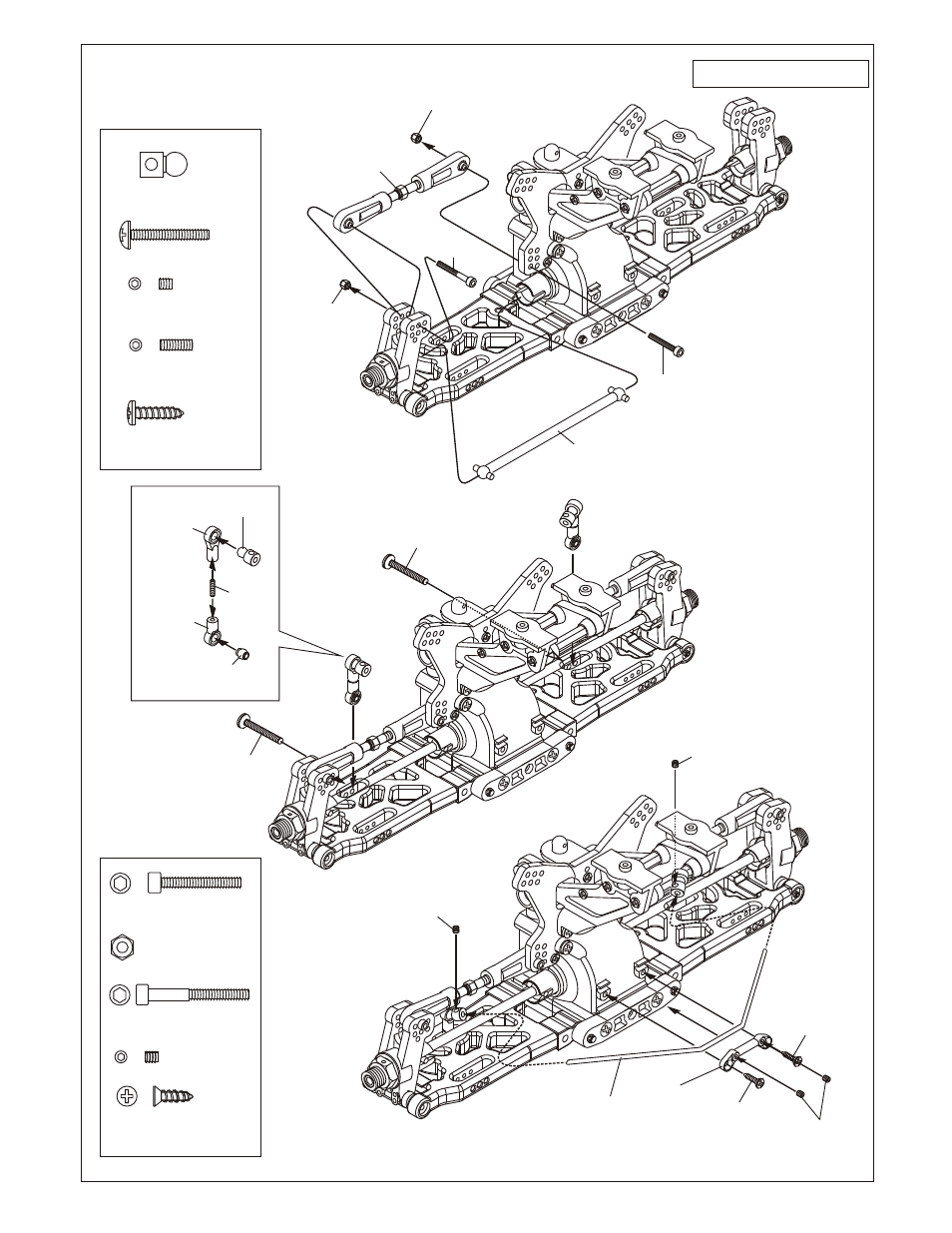

ASSEMBLY OF THE REAR UPPER ARMS

36860
5x40mm
Turnbuckle

36850
7mm Ball

(Make two upper arms for left an right hand side. )

40065
Upper Arm
Plastic Rod End

16mm

40023
Lower Arm Shaft

90021
3mm
E-Ring

3mm
90021
E-Ring

90020
2.5mm
E-Ring

4X10mm
Set Screw

36170
3mm
Arm Shaft

36053
8x16x5mm
Ball bearing

36053
8x16x5mm
Bal l bearing

90026
5mm
Set Screw

36054
8mm
Wheel Hub

36055
2.5x17mm
Pin

36081
Rear
Upper Right

36082
Rear
Wheel Shaft

3 x10x3mm
Plastic Washer

Assembly of the right and left hand side
are the same.

4 x 10 mm
Set Screw...........2

5 x 5mm
Set Screw............2

2.5mm
E-Ring..........4

3 mm
E-Ring..........4

* A 4 x 10mm set screw is used
to adjust the ride height.

40102
Rear
Lower arm

ASSEMBLY OF THE REAR GEAR BOX ONTO CHASSIS

40107
Rear
Driver Shaft
(101mm)

* Insert rear driver shaft
before assembly.

ASSEMBLY OF THE REAR AND ANTI-ROLL BAR

94033
3x3
Set Screw

94019
3X10mm
Flat Head
Screw

40019
Stabilizer

40018
Stabilizer
Mount Plastic

30341
Stabilizer Ball..........2

94019
3 x 10mm
Flat Head
Tapping Screw........2

94007
3 x 20mm
Screw ......................2

94020
3 x 12mm
Tapping Screw..........1

94033
3 x 3mm
Set Screw..............2

94007
3 x 20mm
Cap Screw..........2

90018
3 X 25mm
Cap Screw.........2

35313
M3
Nylon Nut..........2

94033
3 x 3mm
Set Screw..........2

94035
3 x 8mm
et Screw..........2.

94007
3x20mm
Screw

35313
3mm
Nylon Nut

3 x 25mm
Cap Screw

94007
3 x 20mm
Cap Screw

Rear Upper Arm
Assembly

Assembly of the right and left hand side
are the same.

3x8mm
Set Screw

40029
Stabilizer
Ball End

30401
6mm
Ball End

30341
Stabilizer Ball

40166
Stabilizer
Ball End
(Long)
