Page 18

* Take off the double sided paper
before assembly.

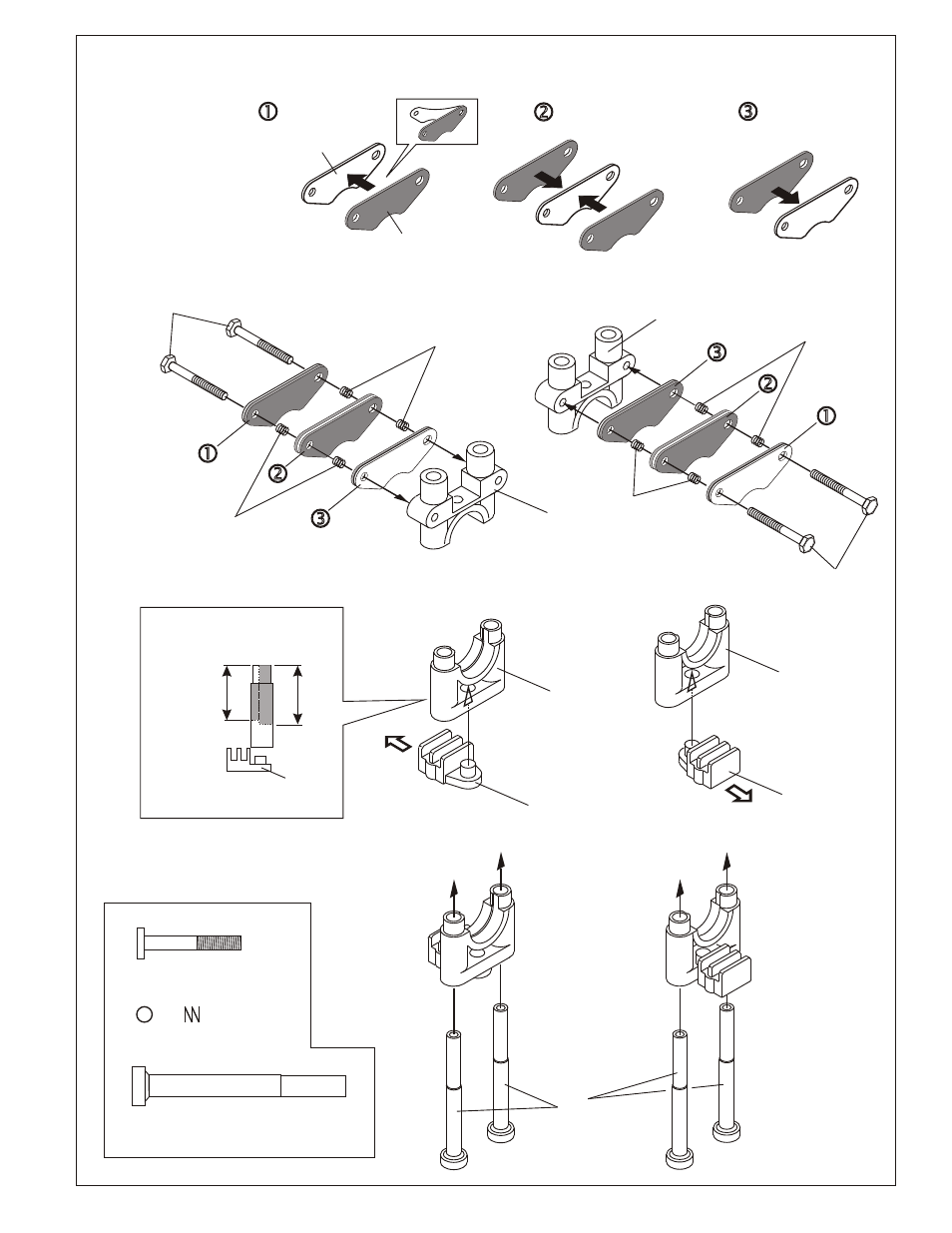

ASSEMBLY OF THE BRAKE AND SPLIT CENTER DIFF. MOUNT

* Make brake pads for each side.

36660
Brake Pad

36661
Brake Pad
linings

40044
Brake Pad
Spring

40045
Brake Pad
Adjustment Screw

40043
Center Diff. Mount
Post

40040
Break Disc
Holder

40040
Brake Disk
Holder

40040
Brake Disc
Holder

40040
Center Diff.
Mount

40045
Brake Pad Screw...........4

40044
Brake Pad
Spring.........8

40043
Center Diff. Mount
Post...........................4

Large
Hole

Small
Hole

Assembly the brake disc holder
in the direction shown.

*Towards
the front.

*Towards
the Rear.

Small hole to the
Outside.

OPTION: #49030 CNC 7075 SPLIT

CENTER DIFF MOUNT.

40042
Brake Disk

ASSEMBLY OF THE CENTER DIFF. INTO CENTER DIFF. MOUNT

Center Diff. Assembly

3x3mm
Set Screw

3x10mm
Screw

40031
Fuel Overflow
Proof Plate

30213
Brake Cam

30211
Plastic
Bushing

Option
30212
5X8mm
Ball Bearing

40096
Center Diff.
Plate, Orange

30171
Brake Lever

30171
Brake Lever..........2

30171
Brake Lever

3x10mm
Screw

94003
3x10mm
Screw..........4

94033
3 x 3mm
Set Screw..............2

Put the front brake lever as
Shown.

OPTION: #49008 GRAPHITE

BRAKE DISKS, 2PCS.

OPTION: #49018 GRAPHITE
TOP CENTER PLATE

Screw

Cement

Screw

Cement
